9vhm
structure of CC2D1A (coiled-coil and C2 domain containing - 1A)
SAXS Profile

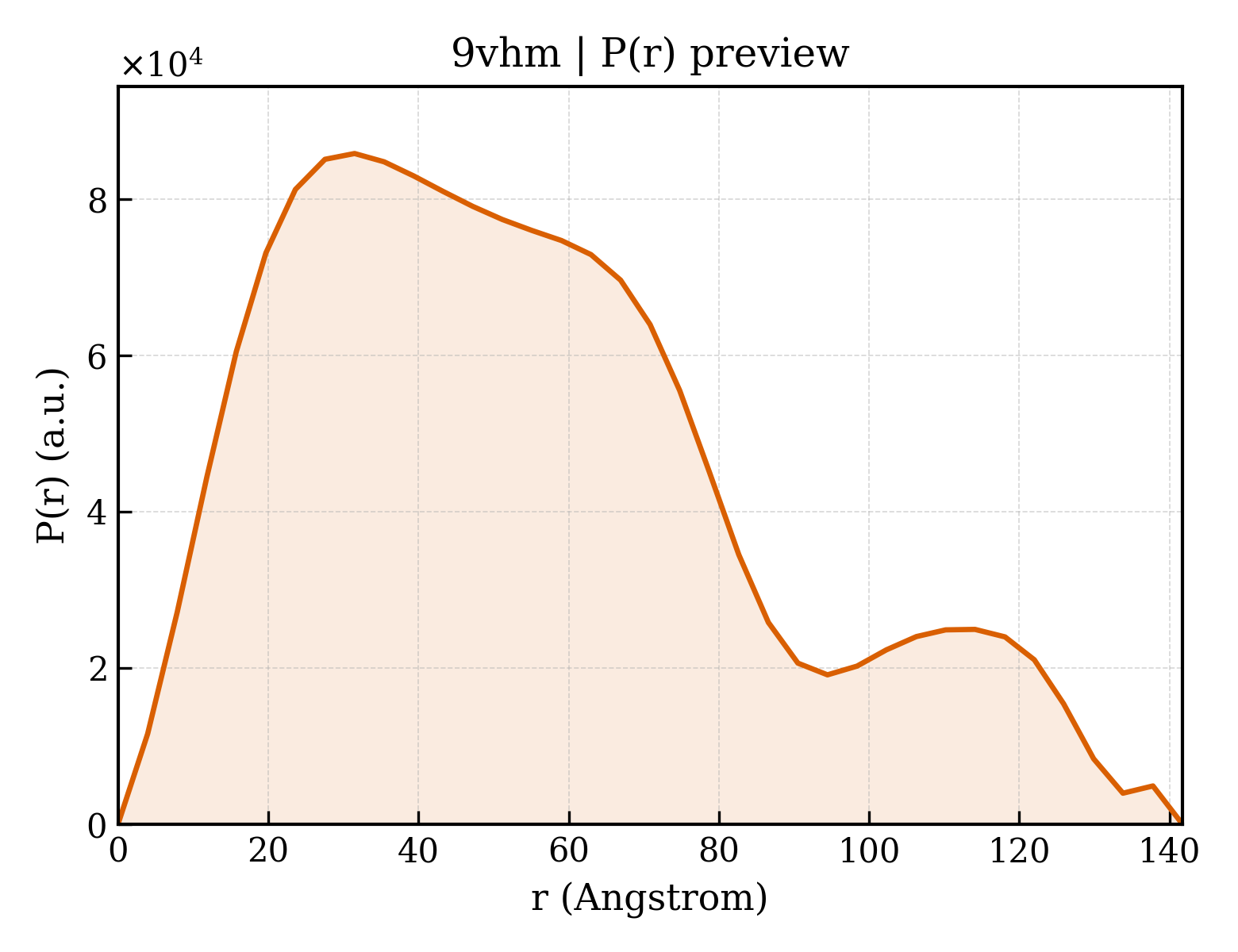

P(r) Distribution
1. Structure Basics
| entry_id | 9vhm |
| deposition_date | 2025-06-17 |
| title | structure of CC2D1A (coiled-coil and C2 domain containing - 1A) |
| keywords | transcriptional repressor, DNA binding protein, UNKNOWN FUNCTION; UNKNOWN FUNCTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 43.28 Å |
| rg_electron | 44.00 Å |
| i0 | 80395800.00 |
| molecular_weight | 72550.0 kDa |
| excluded_volume | 91294 ų |
| envelope_volume | 144820 ų |
| shell_volume | 32582 ų |
| envelope_diameter | 150.7 Å |
| shell_rg | 39.26 Å |
| envelope_rg | 44.06 Å |
| shape_rg | 43.96 Å |
| total_rg | 43.84 Å |
| total_atoms | 5102 |
| n_residues | 640 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 141.7 Å |
| rg_real | 44.03 Å |
| rg_real_error | 1.60 Å |
| i0_real | 8.0400e+07 |
| i0_real_error | 1.4710e+06 |
| rg_reciprocal | 43.28 Å |
| i0_reciprocal | 80330000.0000 |
| total_estimate | 0.7228 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 31.5 Å |
| skewness | 0.642 |
| kurtosis | -0.267 |
| angular_range | — – 0.1800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4016000.0000 |
| n_real_points | 37 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.636; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.492; Smooth: 0.000 |
