9viq

human alpha 7 nicotinic acetylcholine receptor L277A mutant in complex with L-nicotine (desensitized state)

Method: ELECTRON MICROSCOPY D_max: 153.9 Å Quality: GOOD

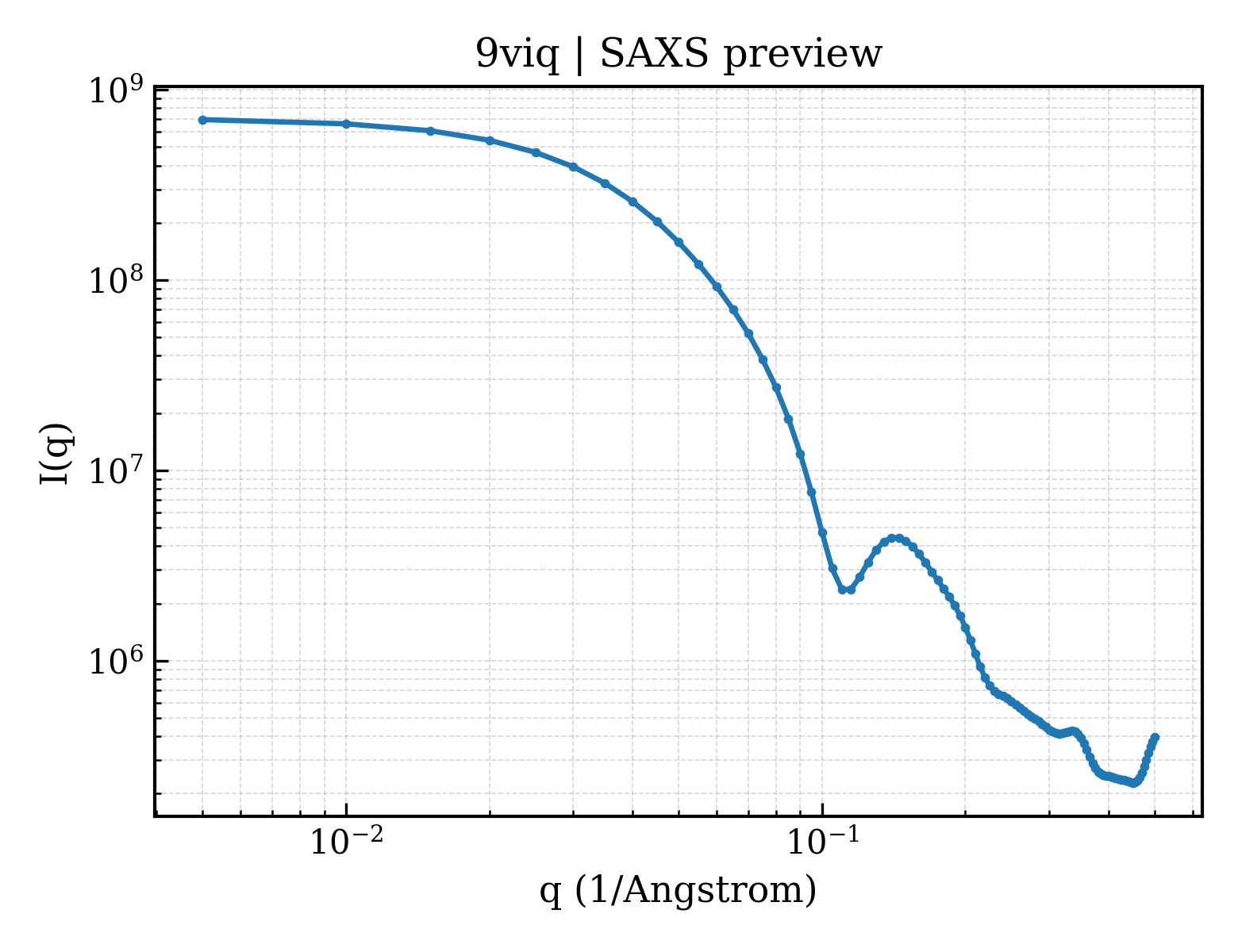

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9viq
deposition_date	2025-06-19
title	human alpha 7 nicotinic acetylcholine receptor L277A mutant in complex with L-nicotine (desensitized state)
keywords	Ligand-gated ion channel, Nicotine, Desensitization, Recovery, Closed pore, MEMBRANE PROTEIN, mutant; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.65 Å
rg_electron	44.15 Å
i0	708201000.00
molecular_weight	229720.0 kDa
excluded_volume	291340 Å³
envelope_volume	388000 Å³
shell_volume	74479 Å³
envelope_diameter	162.8 Å
shell_rg	47.77 Å
envelope_rg	44.34 Å
shape_rg	44.19 Å
total_rg	44.17 Å
total_atoms	16180
n_residues	2000
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	153.9 Å
rg_real	44.95 Å
rg_real_error	1.62 Å
i0_real	7.0820e+08
i0_real_error	1.4410e+07
rg_reciprocal	44.65 Å
i0_reciprocal	707900000.0000
total_estimate	0.8155
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	48.4 Å
skewness	0.602
kurtosis	-0.042
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	133200000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.655; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.676

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Neuronal acetylcholine receptor subunit alpha-7
formula_weight	57574.2 kDa
mutation	L277A
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E
atom_count	16220

MRCSPGGVWLALAASLLHVSLQGEFQRKLYKELVKNYNPLERPVANDSQPLTVYFSLSLLQIMDVDEKNQVLTTNIWLQMSWTDHYLQWNVSEYPGVKTVRFPDGQIWKPDILLYNSADERFDATFHTNVLVNSSGHCQYLPPGIFKSSCYIDVRWFPFDVQHCKLKFGSWSYGGWSLDLQMQEADISGYIPNGEWDLVGIPGKRSERFYECCKEPYPDVTFTVTMRRRTLYYGLNLLIPCVLISALALLVFLLPADSGEKISLGITVLLSLTVFMALVAEIMPATSDSVPLIAQYFASTMIIVGLSVVVTVIVLQYHHHDPDGGKMPKWTRVILLNWCAWFLRMKRPGEDKVRPACQHKQRRCSLASVEMSAVAPPPASNGNLLYIGFRGLDGVHCVPTPDSGVVCGRMACSPTHDEHLLHGGQPPEGDPDLAKILEEVRYIANRFRCQDESEAVCSEWKFAACVVDRLCLMAFSVFTIICTIGILMSAPNFVEAVSKDFAGGDYKDDDDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	5

Entity 3 non-polymer

description	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE
formula_weight	162.2 kDa
src_method	syn
entity_count	5

Entity 4 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	5

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.24 Å
resolution_method	—
num_particles	7997
