9vks
Cryo-EM structure of F-ATP synthase c-ring from Mycobacteroides abscessus (Backbone)

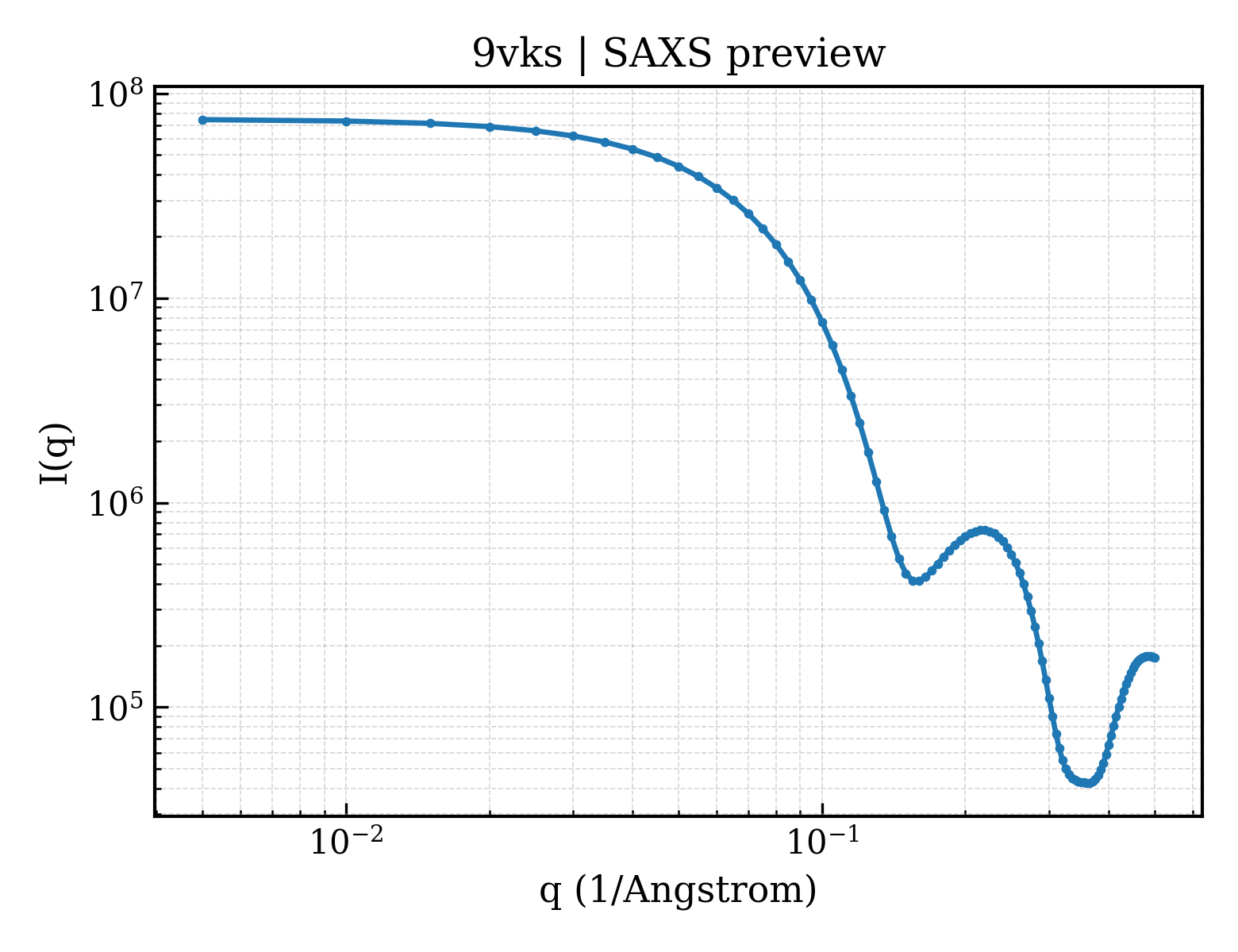

SAXS Profile

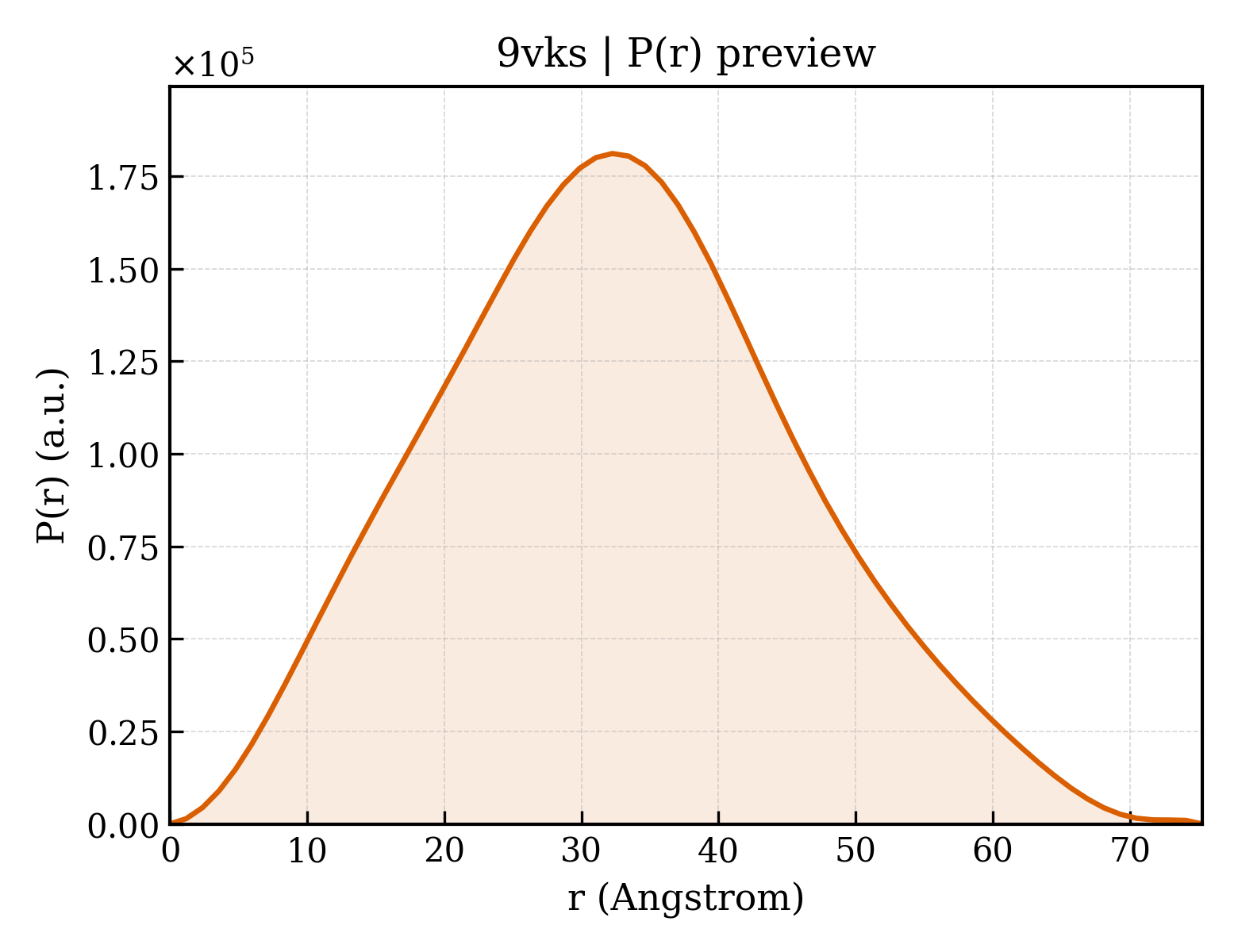

P(r) Distribution
1. Structure Basics
| entry_id | 9vks |
| deposition_date | 2025-06-23 |
| title | Cryo-EM structure of F-ATP synthase c-ring from Mycobacteroides abscessus (Backbone) |
| keywords | Hydrolase, ATP synthase, membrane protein, mycobacterium abscessus, mycobacterial, c-ring, nontuberculous mycobacteria; HYDROLASE |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.09 Å |
| rg_electron | 24.25 Å |
| i0 | 74868000.00 |
| molecular_weight | 42127.0 kDa |
| excluded_volume | 41741 ų |
| envelope_volume | 80203 ų |
| shell_volume | 27855 ų |
| envelope_diameter | 74.2 Å |
| shell_rg | 31.44 Å |
| envelope_rg | 23.80 Å |
| shape_rg | 24.26 Å |
| total_rg | 24.93 Å |
| total_atoms | 2997 |
| n_residues | 747 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 75.3 Å |
| rg_real | 24.96 Å |
| rg_real_error | 0.32 Å |
| i0_real | 7.4870e+07 |
| i0_real_error | 9.5050e+05 |
| rg_reciprocal | 25.00 Å |
| i0_reciprocal | 74870000.0000 |
| total_estimate | 0.8992 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 32.3 Å |
| skewness | 0.183 |
| kurtosis | -0.373 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17450000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.954 |
