9vl5

Cryo-EM structure of SULTR-like phosphate distribution transporter with phosphate

Method: ELECTRON MICROSCOPY D_max: 114.3 Å Quality: GOOD

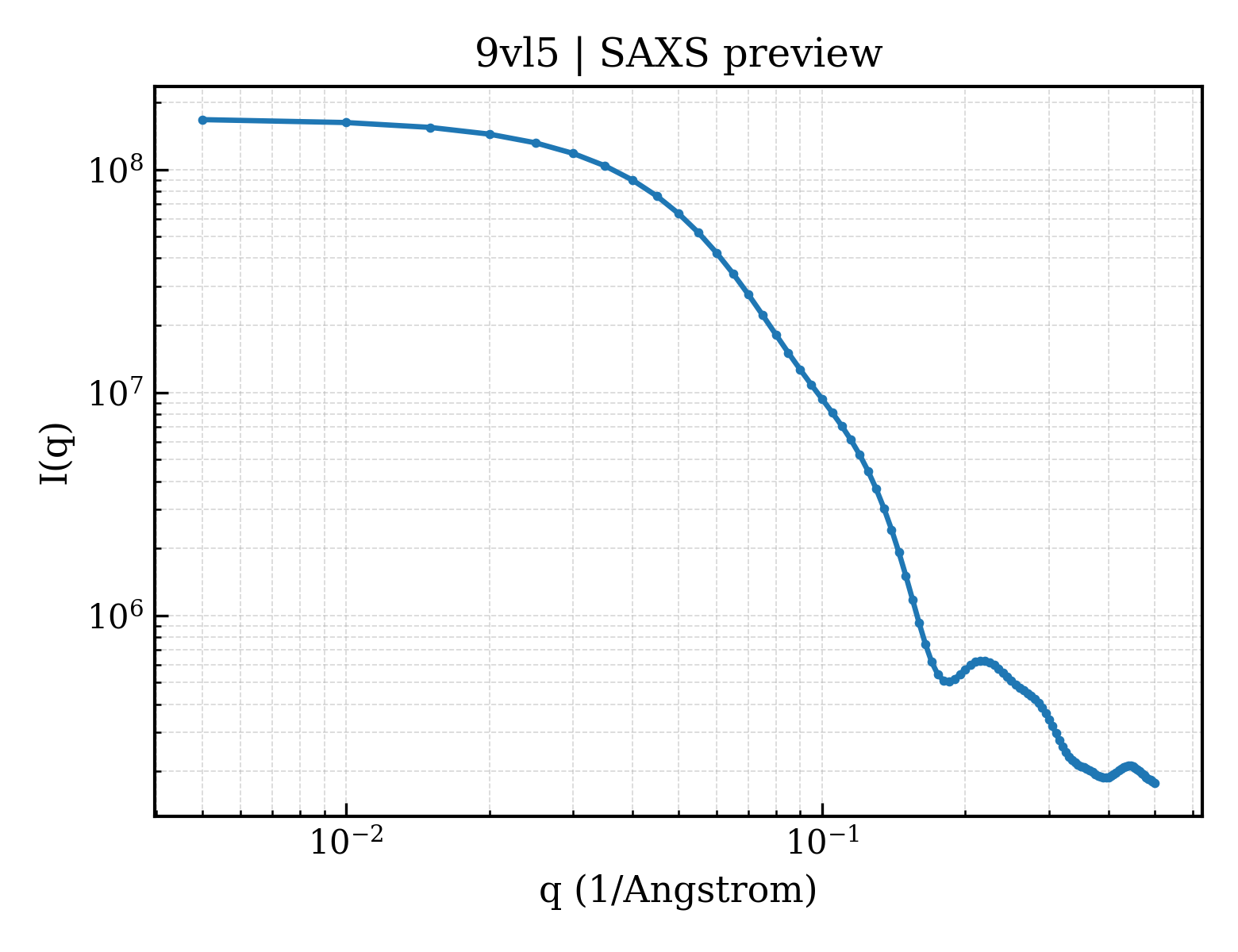

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9vl5
deposition_date	2025-06-24
title	Cryo-EM structure of SULTR-like phosphate distribution transporter with phosphate
keywords	Phosphate distribution transporter, SULTR-like, Homodimer, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.59 Å
rg_electron	34.58 Å
i0	169030000.00
molecular_weight	111630.0 kDa
excluded_volume	142980 Å³
envelope_volume	180750 Å³
shell_volume	43569 Å³
envelope_diameter	119.9 Å
shell_rg	40.99 Å
envelope_rg	34.51 Å
shape_rg	34.60 Å
total_rg	35.00 Å
total_atoms	7832
n_residues	1047
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	114.3 Å
rg_real	34.62 Å
rg_real_error	0.78 Å
i0_real	1.6900e+08
i0_real_error	2.8160e+06
rg_reciprocal	34.61 Å
i0_reciprocal	169000000.0000
total_estimate	0.8879
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.8 Å
skewness	0.304
kurtosis	-0.550
angular_range	— – 0.2300 Å⁻¹
current_alpha	0.0000
highest_alpha	39160000.0000
n_real_points	47
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.906

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Os06g0143700 protein
formula_weight	72054.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,A
atom_count	7832

MVVNNKVDSLSYDVEAPPAQAPTTPAVVSAPPTPRGEAPAMTTTAAAELHKVSVPERRSTAKALRQRLAEVFFPDDPLHQFKNQSSARRLVLALQYFFPIFHWGSDYSLRLLRSDVVSGLTIASLAIPQGISYAKLANLPPIIGLYSSFVPPLIYSLLGSSRDLAVGPVSIASLVMGSMLRQAVSPDQEPILYLQLAFTSTFFAGVFQASLGFLRLGFIVDFLSKATLTGFMGGAAIIVSLQQLKGLLGIIHFTSQMGFVQVMHSVFKHHDEWAWQTILMGVAFLAVLLTTRHISARNPKLFWVSAAAPLTSVIISTIISFVSKAHGISVIGDLPKGLNPPSANMLTFSGSYVGLALNTGIMTGILSLTEGIAVGRTFASINNYQVDGNKEMMAIGVMNMAGSCASCYVTTGSFSRSAVNYSAGCKTAVSNIVMASAVLVTLLFLMPLFHYTPNVILSAIIITAVIGLIDVRGAARLWKVDKLDFLACMAAFLGVLLVSVQMGLAIAVGISLFKILLQVTRPNMVVKGVVPGTASYRSMAQYREAMRVPSFLVVGVESAIYFANSMYLGERIMRFLREEDERAAKCNQCPVRCIILDMSAVAAIDTSGLDALAELKKVLEKRNIELVLANPVGSVTERLYNSVVGKTFGSDRVFFSVAEAVAAAPHKTQP

Source

organism	Oryza sativa subsp. japonica
common_name	Asian cultivated rice
ncbi_taxonomy_id	39947
host_organism	Homo sapiens

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.650 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.65 Å
resolution_method	—
num_particles	295132

fit	/app/data/saxs_computation/vl/9vl5/9vl5.fit
pddf	/app/data/pr_computation/vl/9vl5/9vl5.pr.out
profile	/app/data/saxs_computation/vl/9vl5/9vl5.dat
