9vlh
Crystal structure of Bacillus subtilis DegQ tetramer
SAXS Profile

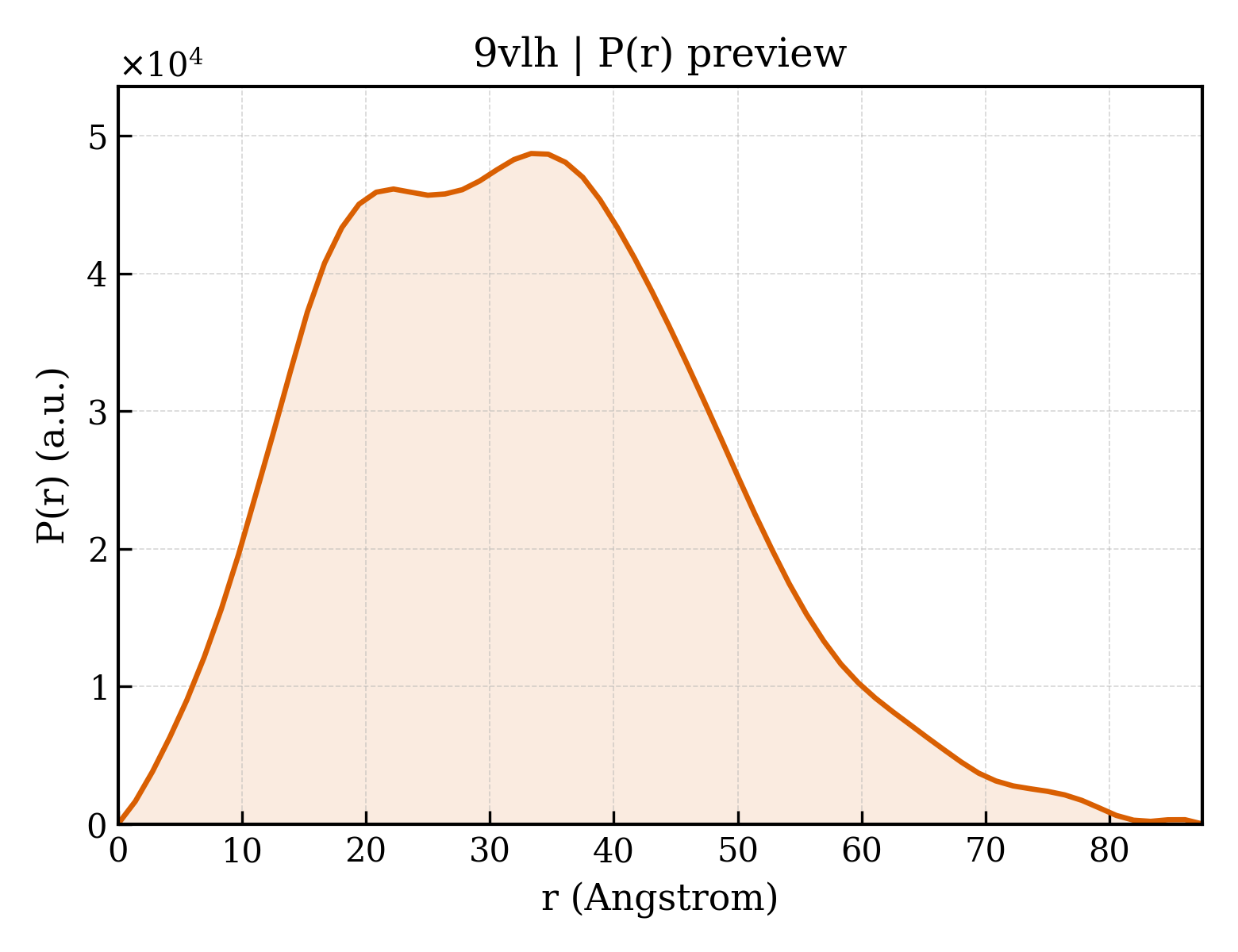

P(r) Distribution
1. Structure Basics
| entry_id | 9vlh |
| deposition_date | 2025-06-25 |
| title | Crystal structure of Bacillus subtilis DegQ tetramer |
| keywords | transcription regulatory protein, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.38 Å |
| rg_electron | 24.73 Å |
| i0 | 24865300.00 |
| molecular_weight | 39135.0 kDa |
| excluded_volume | 49613 ų |
| envelope_volume | 62593 ų |
| shell_volume | 22067 ų |
| envelope_diameter | 87.8 Å |
| shell_rg | 30.62 Å |
| envelope_rg | 24.88 Å |
| shape_rg | 24.72 Å |
| total_rg | 25.51 Å |
| total_atoms | 2743 |
| n_residues | 324 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.5 Å |
| rg_real | 25.45 Å |
| rg_real_error | 0.82 Å |
| i0_real | 2.4870e+07 |
| i0_real_error | 3.6640e+05 |
| rg_reciprocal | 25.43 Å |
| i0_reciprocal | 24870000.0000 |
| total_estimate | 0.8575 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 33.3 Å |
| skewness | 0.409 |
| kurtosis | -0.182 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 12590000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.783; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.821; Smooth: 0.984 |
