9voa
Fasciola hepatica calcium binding protein FhCaBP4
SAXS Profile

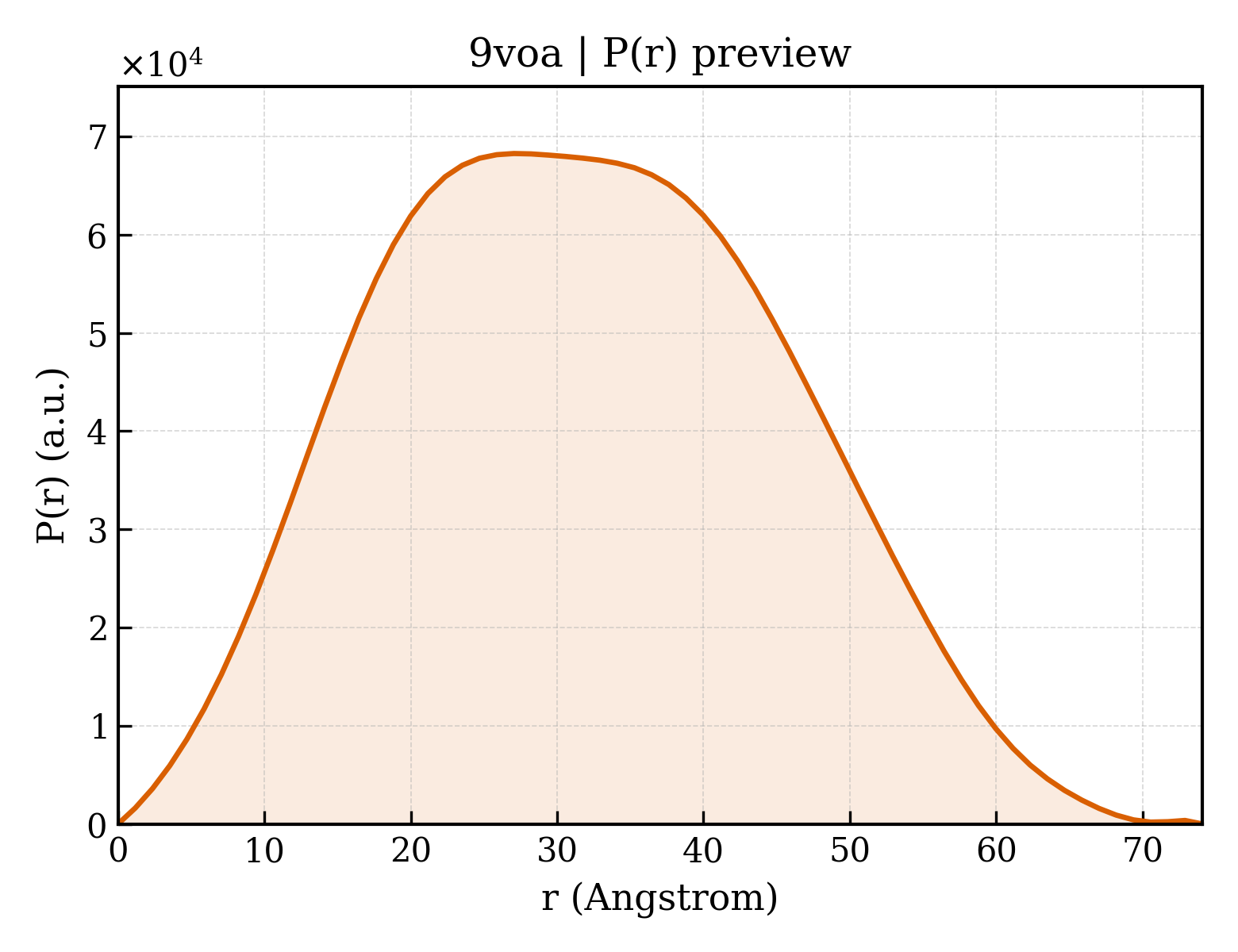

P(r) Distribution
1. Structure Basics
| entry_id | 9voa |
| deposition_date | 2025-07-01 |
| last_revision | 2025-08-27 |
| title | Fasciola hepatica calcium binding protein FhCaBP4 |
| keywords | calcium binding protein, CELL ADHESION; CELL ADHESION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.50 Å |
| rg_electron | 23.16 Å |
| i0 | 33253300.00 |
| molecular_weight | 43588.0 kDa |
| excluded_volume | 54347 ų |
| envelope_volume | 67219 ų |
| shell_volume | 24296 ų |
| envelope_diameter | 73.7 Å |
| shell_rg | 30.17 Å |
| envelope_rg | 23.36 Å |
| shape_rg | 23.15 Å |
| total_rg | 24.05 Å |
| total_atoms | 3056 |
| n_residues | 374 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.1 Å |
| rg_real | 24.39 Å |
| rg_real_error | 0.39 Å |
| i0_real | 3.3250e+07 |
| i0_real_error | 4.3400e+05 |
| rg_reciprocal | 24.42 Å |
| i0_reciprocal | 33250000.0000 |
| total_estimate | 0.9141 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 27.1 Å |
| skewness | 0.144 |
| kurtosis | -0.628 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9098000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.963 |
