SAXSdb — 9vq2

▼

1. Structure Basics

entry_id	9vq2
deposition_date	2025-07-04
title	Cryo-EM structure of a human flippase mutant ATP11C Q79A-CDC50A in the PtdSer-occluded E2-AlF state
keywords	Lipid transporter flippase, PC bound E2P state, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.81 Å
rg_electron	42.26 Å
i0	233161000.00
molecular_weight	132260.0 kDa
excluded_volume	168580 Å³
envelope_volume	227670 Å³
shell_volume	47922 Å³
envelope_diameter	159.0 Å
shell_rg	43.81 Å
envelope_rg	42.51 Å
shape_rg	42.20 Å
total_rg	42.55 Å
total_atoms	9331
n_residues	1139
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	148.8 Å
rg_real	43.23 Å
rg_real_error	1.64 Å
i0_real	2.3320e+08
i0_real_error	4.4010e+06
rg_reciprocal	42.81 Å
i0_reciprocal	233100000.0000
total_estimate	0.7966
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	36.2 Å
skewness	0.514
kurtosis	-0.491
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	38010000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.649; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.695; Smooth: 0.710

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Phospholipid-transporting ATPase IG
formula_weight	124403.6 kDa
ec_number	7.6.2.1
mutation	Q79A
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	9332

RFCAGEEKRVGTRTVFVGNHPVSETEAYIAQRFCDNRIVSSKYTLWNFLPKNLFEQFRRIANFYFLIIFLVQVTVDTPTSPVTSGLPLFFVITVTAIKQGYEDWLRHRADNEVNKSTVYIIENAKRVRKESEKIKVGDVVEVQADETFPCDLILLSSCTTDGTCYVTTASLDGESNCKTHYAVRDTIALCTAESIDTLRAAIECEQPQPDLYKFVGRINIYSNSLEAVARSLGPENLLLKGATLKNTEKIYGVAVYTGMETKMALNYQGKSQKRSAVEKSINAFLIVYLFILLTKAAVCTTLKYVWQSTPYNDEPWYNQKTQKERETLKVLKMFTDFLSFMVLFNFIIPVSMYVTVEMQKFLGSFFISWDKDFYDEEINEGALVNTSDLNEELGQVDYVFTDKTGTLTENSMEFIECCIDGHKYKGVTQEVDGLSQTDGTLTYFDKVDKNREELFLRALCLCHTVEIKTNDAVDGATESAELTYISSSPDEIALVKGAKRYGFTFLGNRNGYMRVENQRKEIEEYELLHTLNFDAVRRRMSVIVKTQEGDILLFCKGADSAVFPRVQNHEIELTKVHVERNAMDGYRTLCVAFKEIAPDDYERINRQLIEAKMALQDREEKMEKVFDDIETNMNLIGATAVEDKLQDQAAETIEALHAAGLKVWVLTGDKMETAKSTCYACRLFQTNTELLELTTKTIEESERKEDRLHELLIEYRKKLLHEFPKSTRSFKKAWTEHQEYGLIIDGSTLSLILNSSQDSSSNNYKSIFLQICMKCTAVLCCRMAPLQKAQIVRMVKNLKGSPITLSIGDGANDVSMILESHVGIGIKGKEGRQAARNSDYSVPKFKHLKKLLLAHGHLYYVRIAHLVQYFFYKNLCFILPQFLYQFFCGFSQQPLYDAAYLTMYNICFTSLPILAYSLLEQHINIDTLTSDPRLYMKISGNAMLQLGPFLYWTFLAAFEGTVFFFGTYFLFQTASLEENGKVYGNWTFGTIVFTVLVFTVTLKLALDTRFWTWINHFVIWGSLAFYVFFSFFWGGIIWPFLKQQRMYFVFAQMLSSVSTWLAIILLIFISLFPEILLIVLKNVR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Cell cycle control protein 50A
formula_weight	40900.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MAMNYNAKDEVDGGPPCAPGGTAKTRRPDNTAFKQQRLPAWQPILTAGTVLPIFFIIGLIFIPIGIGIFVTSNNIREIEIDYTGTEPSSPCNKCLSPDVTPCFCTINFTLEKSFEGNVFMYYGLSNFYQNHRRYVKSRDDSQLNGDSSALLNPSKECEPYRRNEDKPIAPCGAIMNSMFNDTLELFLIGQDSYPIPIALKKKGIAWWTDKNVKFRNPPGGDNLEERFKGTTKPVNWLKPVYMLDSDPDNNGFINEDFIVWMRTAALPTFRKLYRLIERKSDLHPTLPAGRYWLNVTYNYPVHYFDGRKRMILSTISWMGGKNPFLGIAYIAVGSISFLLGVVLLVINHKYRNSSNTADITI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 branched

description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	383.3 kDa
src_method	man
entity_count	1

Entity 4 non-polymer

description	TETRAFLUOROALUMINATE ION
formula_weight	103.0 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	O-[(R)-{[(2R)-2,3-bis(octadecanoyloxy)propyl]oxy}(hydroxy)phosphoryl]-L-serine
formula_weight	792.1 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	3

Entity 8 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.400 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.40 Å
resolution_method	—
num_particles	84218

fit	/app/data/saxs_computation/vq/9vq2/9vq2.fit
pddf	/app/data/pr_computation/vq/9vq2/9vq2.pr.out
profile	/app/data/saxs_computation/vq/9vq2/9vq2.dat

Cryo-EM structure of a human flippase mutant ATP11C Q79A-CDC50A in the PtdSer-occluded E2-AlF state

SAXS Profile

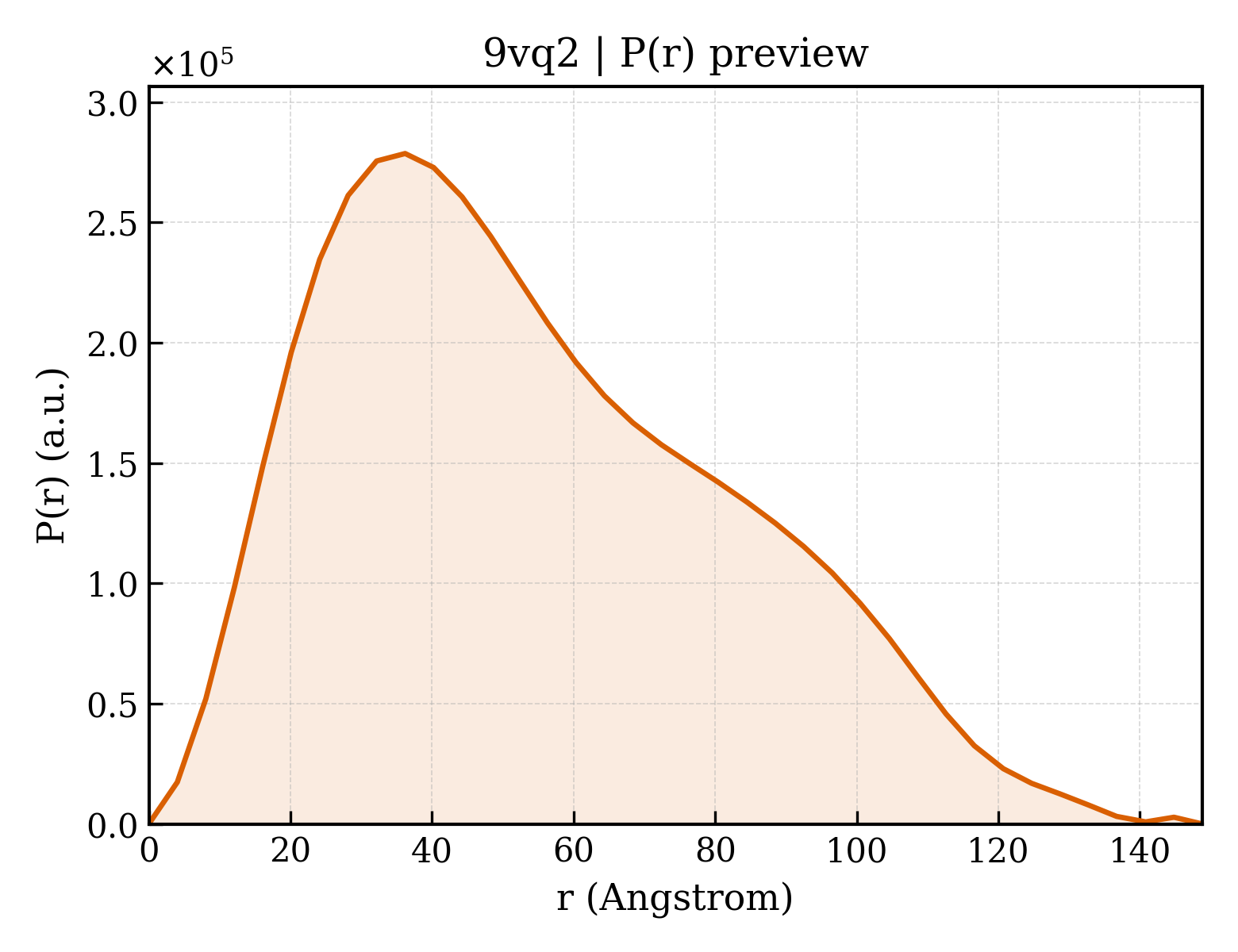

P(r) Distribution
