SAXSdb — 9vuc

▼

1. Structure Basics

entry_id	9vuc
deposition_date	2025-07-12
title	channel B complex with 2
keywords	channel B complex with 2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.34 Å
rg_electron	41.59 Å
i0	890138000.00
molecular_weight	164720.0 kDa
excluded_volume	160630 Å³
envelope_volume	350980 Å³
shell_volume	69819 Å³
envelope_diameter	138.9 Å
shell_rg	47.68 Å
envelope_rg	40.46 Å
shape_rg	41.61 Å
total_rg	41.81 Å
total_atoms	12502
n_residues	1625
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	131.3 Å
rg_real	42.09 Å
rg_real_error	1.08 Å
i0_real	8.9010e+08
i0_real_error	1.5530e+07
rg_reciprocal	42.33 Å
i0_reciprocal	890400000.0000
total_estimate	0.8892
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	56.8 Å
skewness	0.076
kurtosis	-0.456
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	39350000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.889; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.924

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Calmodulin-1
formula_weight	16852.5 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,F,G
atom_count	12502

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Small conductance calcium-activated potassium channel protein 2
formula_weight	63841.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D

MSSCRYNGGVMRPLSNLSASRRNLHEMDSEAQPLQPPASVGGGGGASSPSAAAAAAAAVSSSAPEIVVSKPEHNNSNNLALYGTGGGGSTGGGGGGGGSGHGSSSGTKSSKKKNQNIGYKLGHRRALFEKRKRLSDYALIFGMFGIVVMVIETELSWGAYDKASLYSLALKCLISLSTIILLGLIIVYHAREIQLFMVDNGADDWRIAMTYERIFFICLEILVCAIHPIPGNYTFTWTARLAFSYAPSTTTADVDIILSIPMFLRLYLIARVMLLHSKLFTDASSRSIGALNKINFNTRFVMKTLMTICPGTVLLVFSISLWIIAAWTVRACERYHDQQDVTSNFLGAMWLISITFLSIGYGDMVPNTYCGKGVCLLTGIMGAGCTALVVAVVARKLELTKAEKHVHNFMMDTQLTKRVKNAAANVLRETWLIYKNTKLVKKIDHAKVRKHQRKFLQAIHQLRSVKMEQRKLNDQANTLVDLAKTQNIMYDMISDLNERSEDFEKRIVTLETKLETLIGSIHALPGLISQTIRQQQRDFIEAQMESYDKHVTYNAERSRSSSRRRRSSSTAPPTSSESS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	4

Entity 4 non-polymer

description	UCL1684
formula_weight	494.6 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.960 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.96 Å
resolution_method	—
num_particles	97557

fit	/app/data/saxs_computation/vu/9vuc/9vuc.fit
pddf	/app/data/pr_computation/vu/9vuc/9vuc.pr.out
profile	/app/data/saxs_computation/vu/9vuc/9vuc.dat

channel B complex with 2

SAXS Profile

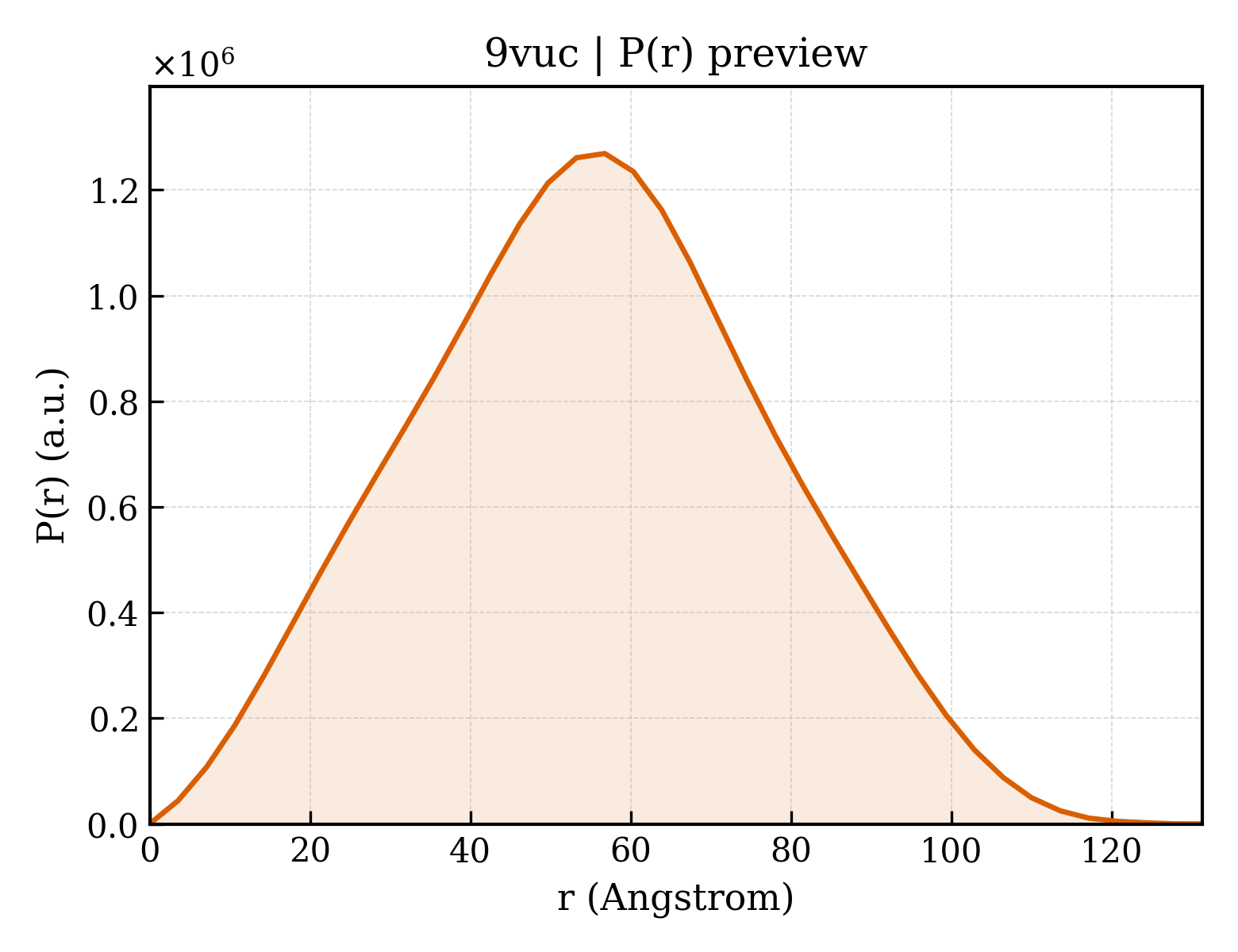

P(r) Distribution
