1. Structure Basics

entry_id	9vxv
deposition_date	2025-07-20
title	Cryo-EM Structure of Nipah Virus Polymerase in complex with ERDRP-0519
keywords	Polymerase, inhibitor, nipah virus, complex, REPLICATION; REPLICATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.03 Å
rg_electron	41.04 Å
i0	1049190000.00
molecular_weight	175880.0 kDa
excluded_volume	169830 Å³
envelope_volume	318310 Å³
shell_volume	66686 Å³
envelope_diameter	160.0 Å
shell_rg	45.16 Å
envelope_rg	41.73 Å
shape_rg	41.05 Å
total_rg	41.20 Å
total_atoms	13292
n_residues	1651
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	150.9 Å
rg_real	41.35 Å
rg_real_error	1.69 Å
i0_real	1.0490e+09
i0_real_error	2.0140e+07
rg_reciprocal	41.04 Å
i0_reciprocal	1049000000.0000
total_estimate	0.7798
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	47.7 Å
skewness	0.779
kurtosis	0.685
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	73340000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.473; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.726

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	257565.2 kDa
ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	13295

MADELSISDIIYPECHLDSPIVSGKLISAIEYAQLRHNQPSDDKRLSENIRLNLHGKRKSLYILRQSKQGDYIRNNIKNLKEFMHIAYPECNNILFSITSQGMTSKLDNIMKKSFKAYNIISKKVIGMLQNITRNLITQDRRDEIINIHECRRLGDLGKNMSQSKWYECFLFWFTIKTEMRAVIKNSQKPKFRSDSCIIHMRDKSTEIILNPNLICIFKSDKTGKKCYYLTPEMVLMYCDVLEGRMMMETTVKSDIKYQPLISRSNALWGLIDPLFPVMGNRIYNIVSMIEPLVLALLQLKDEARILRGAFLHHCIKEMHQELSECGFTDQKIRSMFIDDLLSILNIDNIHLLAEFFSFFRTFGHPILEAKVAAEKVREHMLADKVLEYAPIMKAHAIFCGTIINGYRDRHGGAWPPLYLPAHASKHIIRLKNSGESLTIDDCVKNWESFCGIQFDCFMELKLDSDLSMYMKDKALSPIKDEWDSVYPREVLSYTPPKSTEPRRLVDVFVNDENFDPYNMLEYVLSGAYLEDEQFNVSYSLKEKETKQAGRLFAKMTYKMRACQVIAEALIASGVGKYFKENGMVKDEHELLKTLFQLSISSVPRGNSQGNDPQSINNIERDFQYFKGVTTNVKDKKNNSFNKVKSALNNPCQADGVHHNMSPNTRNRYKCSNTSKSFLDYHTEFNPHNHYKSDNTEAAVLSRYEDNTGTKFDTVSAFLTTDLKKFCLNWRYESMAIFAERLDEIYGLPGFFNWMHKRLERSVIYVADPNCPPNIDKHMELEKTPEDDIFIHYPKGGIEGYSQKTWTIATIPFLFLSAYETNTRIAAIVQGDNESIAITQKVHPNLPYKVKKEICAKQAQLYFERLRMNLRALGHNLKATETIISTHLFIYSKKIHYDGAVLSQALKSMSRCCFWSETLVDETRSACSNISTTIAKAIENGLSRNVGYCINILKVIQQLLISTEFSINETLTLDVTSPISNNLDWLITAALIPAPIGGFNYLNLSRIFVRNIGDPVTASLADLKRMIDHSIMTESVLQKVMNQEPGDASFLDWASDPYSGNLPDSQSITKTIKNITARTILRNSPNPMLKGLFHDKSFDEDLELASFLMDRRVILPRAAHEILDNSLTGAREEIAGLLDTTKGLIRSGLRKSGLQPKLVSRLSHHDYNQFLILNKLLSNRRQNDLISSNTCSVDLARALRSHMWRELALGRVIYGLEVPDALEAMVGRYITGSLECQICEQGNTMYGWFFVPRDSQLDQVDREHSSIRVPYVGSSTDERSDIKLGNVKRPTKALRSAIRIATVYTWAYGDNEECWYEAWYLASQRVNIDLDVLKAITPVSTSNNLSHRLRDKSTQFKFAGSVLNRVSRYVNISNDNLDFRIEGEKVDTNLIYQQAMLLGLSVLEGKFRLRLETDDYNGIYHLHVKDNCCVKEVADVGQVDAELPIPEYTEVDNNHLIYDPDPVSEIDCSRLSNQESKSRELDFPLWSTEELHDVLAKTVAQTVLEIITKADKDVLKQHLAIDSDDNINSLITEFLIVDPELFALYLGQSISIKWAFEIHHRRPRGRHTMVDLLSDLVSNTSKHTYKVLSNALSHPRVFKRFVNCGLLLPTQGPYLHQQDFEKLSQNLLVTSYMIYLMNWCDFKKSPFLIAEQDETVISLREDIITSKHLCVIIDLYANHHKPPWIIDLNPQEKICVLRDFISKSRHVDTSSRSWNTSDLDFVIFYASLTYLRRGIIKQLRIRQVTEVIDTTTMLRDNIIVENPPIKTGVLDIRGCIIYNLEEILSMNTKSASKKIFNLNSRPSVENHKYRRIGLNSSSCYKALNLSPLIQRYLPSGAQRLFIGEGSGSMMLLYQSTLGQSISFYNSGIDGDYIPGQRELKLFPSEYSIAEEDPSLTGKLKGLVVPLFNGRPETTWIGNLDSYEYIINRTAGRSIGLVHSDMESGIDKNVEEILVEHSHLISIAINVMMEDGLLVSKIAYTPGFPISRLFNMYRSYFGLVLVCFPVYSNPDSTEVYLLCLQKTVKTIVPPQKVLEHSNLHDEVNDQGITSVIFKIKNSQSKQFHDDLKKYYQIDQPFFVPTKITSDEQVLLQAGLKLNGPEILKSEISYDIGSDINTLRDTIIIMLNEAMNYFDDNRSPSHHLEPYPVLERTRIKTIMNCVTKKVIVYSLIKFKDTKSSELYHIKNNIRRKVLILDFRSKLMTKTLPKGMQERREKNGFKEVWIVDLSNREVKIWWKIIGYISII

Source

organism	Henipavirus nipahense
ncbi_taxonomy_id	3052225
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Phosphoprotein
formula_weight	78390.3 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,C,D,E

MDKLELVNDGLNIIDFIQKNQKEIQKTYGRSSIQQPSIKDQTKAWEDFLQCTSGESEQVEGGMSKDDGDVERRNLEDLSSTSPTDGTIGKRVSNTRDWAEGSDDIQLDPVVTDVVYHDHGGECTGYGFTSSPERGWSDYTSGANNGNVCLVSDAKMLSYAPEIAVSKEDRETDLVHLENKLSTTGLNPTAVPFTLRNLSDPAKDSPVIAEHYYGLGVKEQNVGPQTSRNVNLDSIKLYTSDDEEADQLEFEDEFAGSSSEVIVGISPEDEEPSSVGGKPNESIGRTIEGQSIRDNLQAKDNKSTDVPGAGPKDSAVKEEPPQKRLPMLAEEFECSGSEDPIIRELLKENSLINCQQGKDAQPPYHWSIERSISPDKTEIVNGAVQTADRQRPGTPMPKSRGIPIKKGTDAKYPSAGTENVPGSKSGATRHVRGSPPYQEGKSVNAENVQLNASTAVKETDKSEVNPVDDNDSLDDKYIMPSDDFSNTFFPHDTDRLNYHADHLGDYDLETLCEESVLMGVINSIKLINLDMRLNHIEEQVKEIPKIINKLESIDRVLAKTNTALSTIEGHLVSMMIMIPGKGKGERKGKNNPELKPVIGRDILEQQSLFSFDNVKNFRDGSLTNEPYGAAVQLREDLILPELNFEETNASQFVPMADDSSRDVIKTLIRTHIKDRELRSELIGYLNKAENDEEIQEIANTVNDIIDGNI

Source

organism	Henipavirus nipahense
ncbi_taxonomy_id	3052225
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide
formula_weight	529.6 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.660 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.66 Å
resolution_method	—
num_particles	4539359

fit	/app/data/saxs_computation/vx/9vxv/9vxv.fit
pddf	/app/data/pr_computation/vx/9vxv/9vxv.pr.out
profile	/app/data/saxs_computation/vx/9vxv/9vxv.dat

Cryo-EM Structure of Nipah Virus Polymerase in complex with ERDRP-0519

SAXS Profile

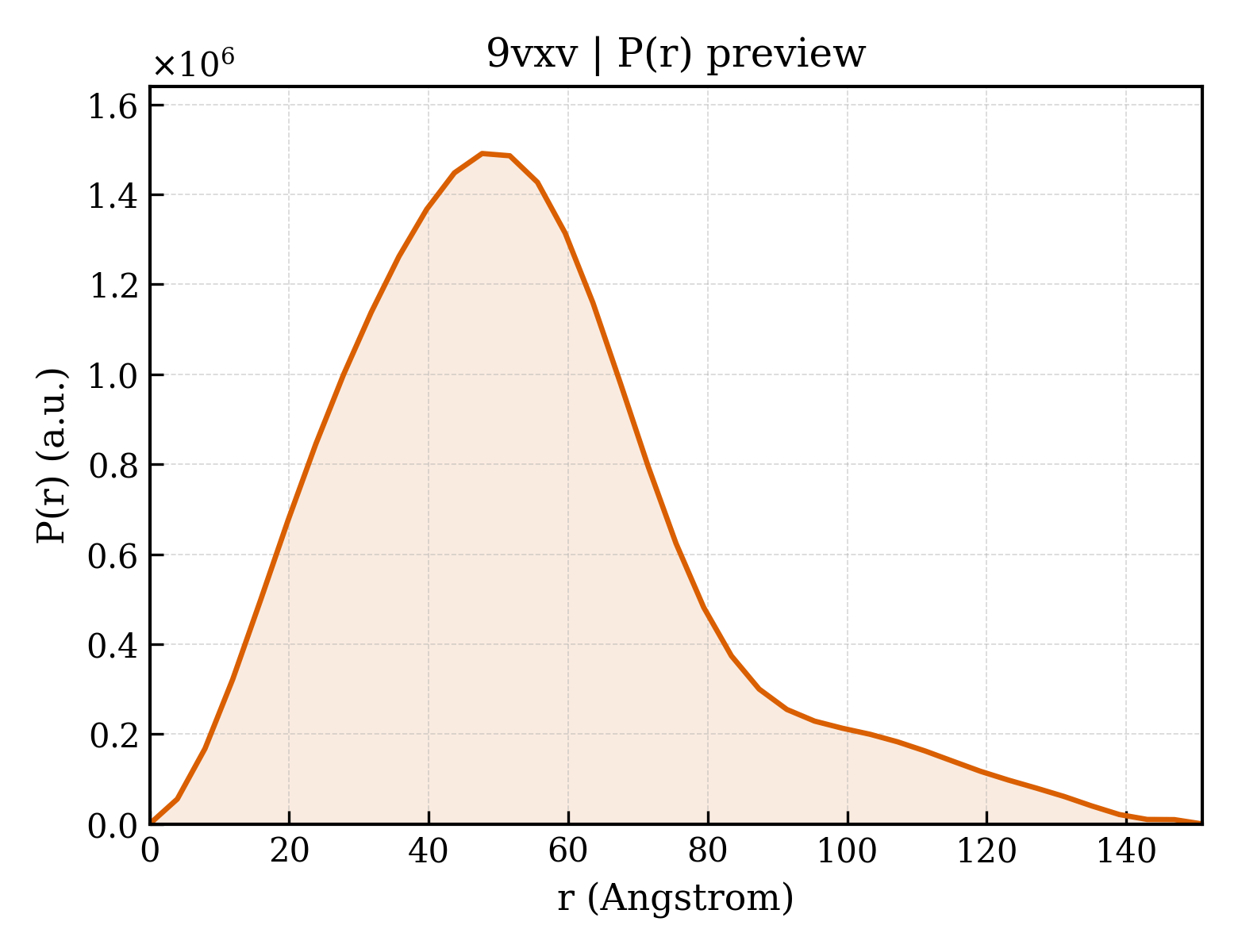

P(r) Distribution
