SAXSdb — 9vxy

▼

1. Structure Basics

entry_id	9vxy
deposition_date	2025-07-20
title	Cryo-EM Structure of Nipah Virus Polymerase in complex with GL22
keywords	Polymerase, inhibitor, nipah virus, complex, REPLICATION; REPLICATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.57 Å
rg_electron	40.41 Å
i0	978719000.00
molecular_weight	169610.0 kDa
excluded_volume	163700 Å³
envelope_volume	308270 Å³
shell_volume	65134 Å³
envelope_diameter	154.9 Å
shell_rg	44.94 Å
envelope_rg	40.83 Å
shape_rg	40.39 Å
total_rg	40.62 Å
total_atoms	12812
n_residues	1590
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	149.5 Å
rg_real	40.81 Å
rg_real_error	1.47 Å
i0_real	9.7870e+08
i0_real_error	1.8990e+07
rg_reciprocal	40.57 Å
i0_reciprocal	978500000.0000
total_estimate	0.5594
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	49.8 Å
skewness	0.711
kurtosis	0.575
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	71490000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.496; Stabil: 1.000; Sysdev: 0.025; Positv: 1.000; Valcen: 0.925; Smooth: 0.779

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	257565.2 kDa
ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	12815

MADELSISDIIYPECHLDSPIVSGKLISAIEYAQLRHNQPSDDKRLSENIRLNLHGKRKSLYILRQSKQGDYIRNNIKNLKEFMHIAYPECNNILFSITSQGMTSKLDNIMKKSFKAYNIISKKVIGMLQNITRNLITQDRRDEIINIHECRRLGDLGKNMSQSKWYECFLFWFTIKTEMRAVIKNSQKPKFRSDSCIIHMRDKSTEIILNPNLICIFKSDKTGKKCYYLTPEMVLMYCDVLEGRMMMETTVKSDIKYQPLISRSNALWGLIDPLFPVMGNRIYNIVSMIEPLVLALLQLKDEARILRGAFLHHCIKEMHQELSECGFTDQKIRSMFIDDLLSILNIDNIHLLAEFFSFFRTFGHPILEAKVAAEKVREHMLADKVLEYAPIMKAHAIFCGTIINGYRDRHGGAWPPLYLPAHASKHIIRLKNSGESLTIDDCVKNWESFCGIQFDCFMELKLDSDLSMYMKDKALSPIKDEWDSVYPREVLSYTPPKSTEPRRLVDVFVNDENFDPYNMLEYVLSGAYLEDEQFNVSYSLKEKETKQAGRLFAKMTYKMRACQVIAEALIASGVGKYFKENGMVKDEHELLKTLFQLSISSVPRGNSQGNDPQSINNIERDFQYFKGVTTNVKDKKNNSFNKVKSALNNPCQADGVHHNMSPNTRNRYKCSNTSKSFLDYHTEFNPHNHYKSDNTEAAVLSRYEDNTGTKFDTVSAFLTTDLKKFCLNWRYESMAIFAERLDEIYGLPGFFNWMHKRLERSVIYVADPNCPPNIDKHMELEKTPEDDIFIHYPKGGIEGYSQKTWTIATIPFLFLSAYETNTRIAAIVQGDNESIAITQKVHPNLPYKVKKEICAKQAQLYFERLRMNLRALGHNLKATETIISTHLFIYSKKIHYDGAVLSQALKSMSRCCFWSETLVDETRSACSNISTTIAKAIENGLSRNVGYCINILKVIQQLLISTEFSINETLTLDVTSPISNNLDWLITAALIPAPIGGFNYLNLSRIFVRNIGDPVTASLADLKRMIDHSIMTESVLQKVMNQEPGDASFLDWASDPYSGNLPDSQSITKTIKNITARTILRNSPNPMLKGLFHDKSFDEDLELASFLMDRRVILPRAAHEILDNSLTGAREEIAGLLDTTKGLIRSGLRKSGLQPKLVSRLSHHDYNQFLILNKLLSNRRQNDLISSNTCSVDLARALRSHMWRELALGRVIYGLEVPDALEAMVGRYITGSLECQICEQGNTMYGWFFVPRDSQLDQVDREHSSIRVPYVGSSTDERSDIKLGNVKRPTKALRSAIRIATVYTWAYGDNEECWYEAWYLASQRVNIDLDVLKAITPVSTSNNLSHRLRDKSTQFKFAGSVLNRVSRYVNISNDNLDFRIEGEKVDTNLIYQQAMLLGLSVLEGKFRLRLETDDYNGIYHLHVKDNCCVKEVADVGQVDAELPIPEYTEVDNNHLIYDPDPVSEIDCSRLSNQESKSRELDFPLWSTEELHDVLAKTVAQTVLEIITKADKDVLKQHLAIDSDDNINSLITEFLIVDPELFALYLGQSISIKWAFEIHHRRPRGRHTMVDLLSDLVSNTSKHTYKVLSNALSHPRVFKRFVNCGLLLPTQGPYLHQQDFEKLSQNLLVTSYMIYLMNWCDFKKSPFLIAEQDETVISLREDIITSKHLCVIIDLYANHHKPPWIIDLNPQEKICVLRDFISKSRHVDTSSRSWNTSDLDFVIFYASLTYLRRGIIKQLRIRQVTEVIDTTTMLRDNIIVENPPIKTGVLDIRGCIIYNLEEILSMNTKSASKKIFNLNSRPSVENHKYRRIGLNSSSCYKALNLSPLIQRYLPSGAQRLFIGEGSGSMMLLYQSTLGQSISFYNSGIDGDYIPGQRELKLFPSEYSIAEEDPSLTGKLKGLVVPLFNGRPETTWIGNLDSYEYIINRTAGRSIGLVHSDMESGIDKNVEEILVEHSHLISIAINVMMEDGLLVSKIAYTPGFPISRLFNMYRSYFGLVLVCFPVYSNPDSTEVYLLCLQKTVKTIVPPQKVLEHSNLHDEVNDQGITSVIFKIKNSQSKQFHDDLKKYYQIDQPFFVPTKITSDEQVLLQAGLKLNGPEILKSEISYDIGSDINTLRDTIIIMLNEAMNYFDDNRSPSHHLEPYPVLERTRIKTIMNCVTKKVIVYSLIKFKDTKSSELYHIKNNIRRKVLILDFRSKLMTKTLPKGMQERREKNGFKEVWIVDLSNREVKIWWKIIGYISII

Source

organism	Henipavirus nipahense
ncbi_taxonomy_id	3052225
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Phosphoprotein
formula_weight	78390.3 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,C,D,E

MDKLELVNDGLNIIDFIQKNQKEIQKTYGRSSIQQPSIKDQTKAWEDFLQCTSGESEQVEGGMSKDDGDVERRNLEDLSSTSPTDGTIGKRVSNTRDWAEGSDDIQLDPVVTDVVYHDHGGECTGYGFTSSPERGWSDYTSGANNGNVCLVSDAKMLSYAPEIAVSKEDRETDLVHLENKLSTTGLNPTAVPFTLRNLSDPAKDSPVIAEHYYGLGVKEQNVGPQTSRNVNLDSIKLYTSDDEEADQLEFEDEFAGSSSEVIVGISPEDEEPSSVGGKPNESIGRTIEGQSIRDNLQAKDNKSTDVPGAGPKDSAVKEEPPQKRLPMLAEEFECSGSEDPIIRELLKENSLINCQQGKDAQPPYHWSIERSISPDKTEIVNGAVQTADRQRPGTPMPKSRGIPIKKGTDAKYPSAGTENVPGSKSGATRHVRGSPPYQEGKSVNAENVQLNASTAVKETDKSEVNPVDDNDSLDDKYIMPSDDFSNTFFPHDTDRLNYHADHLGDYDLETLCEESVLMGVINSIKLINLDMRLNHIEEQVKEIPKIINKLESIDRVLAKTNTALSTIEGHLVSMMIMIPGKGKGERKGKNNPELKPVIGRDILEQQSLFSFDNVKNFRDGSLTNEPYGAAVQLREDLILPELNFEETNASQFVPMADDSSRDVIKTLIRTHIKDRELRSELIGYLNKAENDEEIQEIANTVNDIIDGNI

Source

organism	Henipavirus nipahense
ncbi_taxonomy_id	3052225
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	;~{N}-[4-[(2~{S})-2-[2-[4-[(2~{Z})-2-[2-(hydroxymethyl)-1,3-bis(oxidanyl)propan-2-yl]iminoethanoyl]piperazin-1-yl]ethyl]piperidin-1-yl]sulfonylphenyl]-2-methyl-5-(trifluoromethyl)pyrazole-3-carboxamide ;
formula_weight	687.7 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.870 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.87 Å
resolution_method	—
num_particles	4977110

fit	/app/data/saxs_computation/vx/9vxy/9vxy.fit
pddf	/app/data/pr_computation/vx/9vxy/9vxy.pr.out
profile	/app/data/saxs_computation/vx/9vxy/9vxy.dat

Cryo-EM Structure of Nipah Virus Polymerase in complex with GL22

SAXS Profile

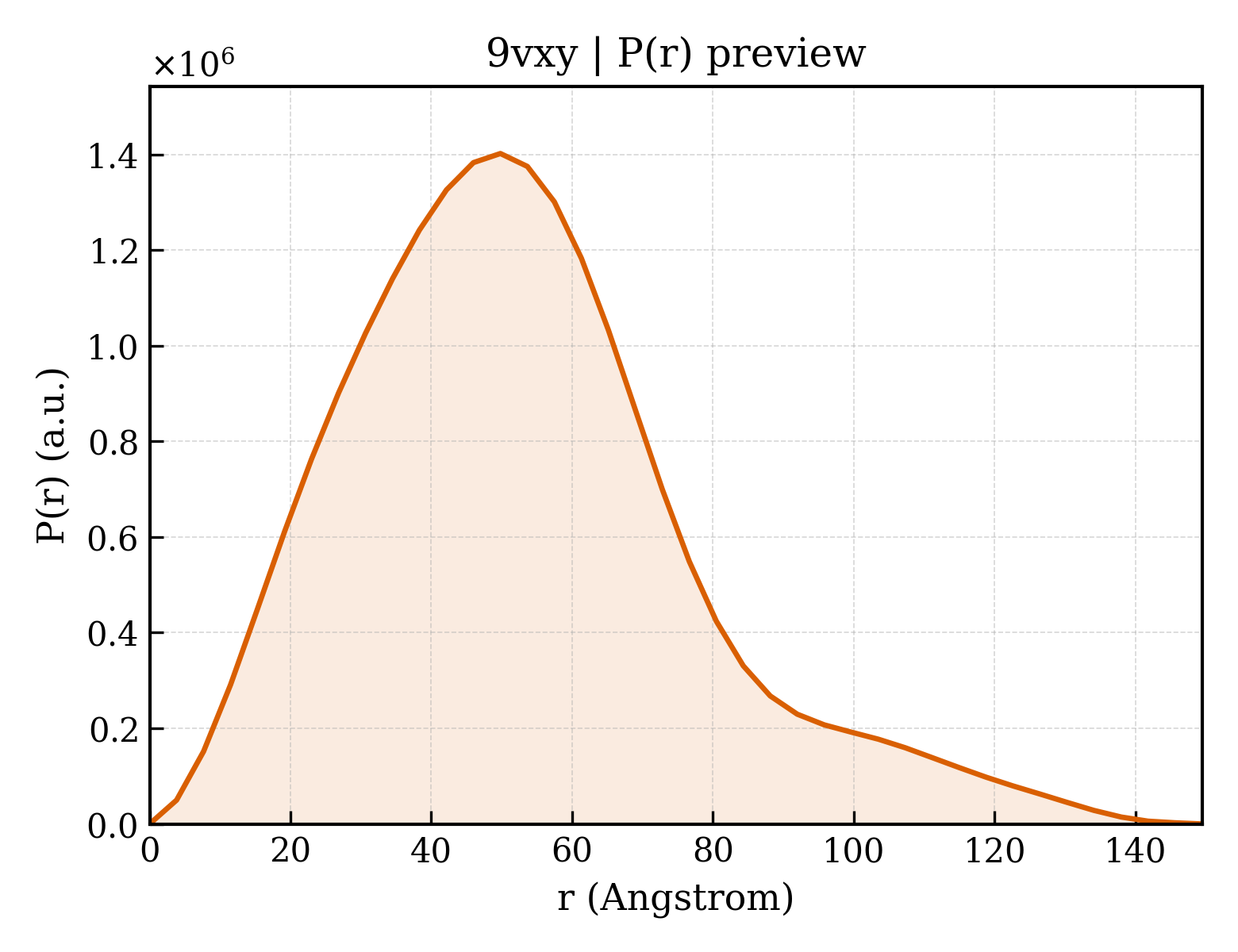

P(r) Distribution
