9vye
Cyanopodophage Pan3 capsid
SAXS Profile

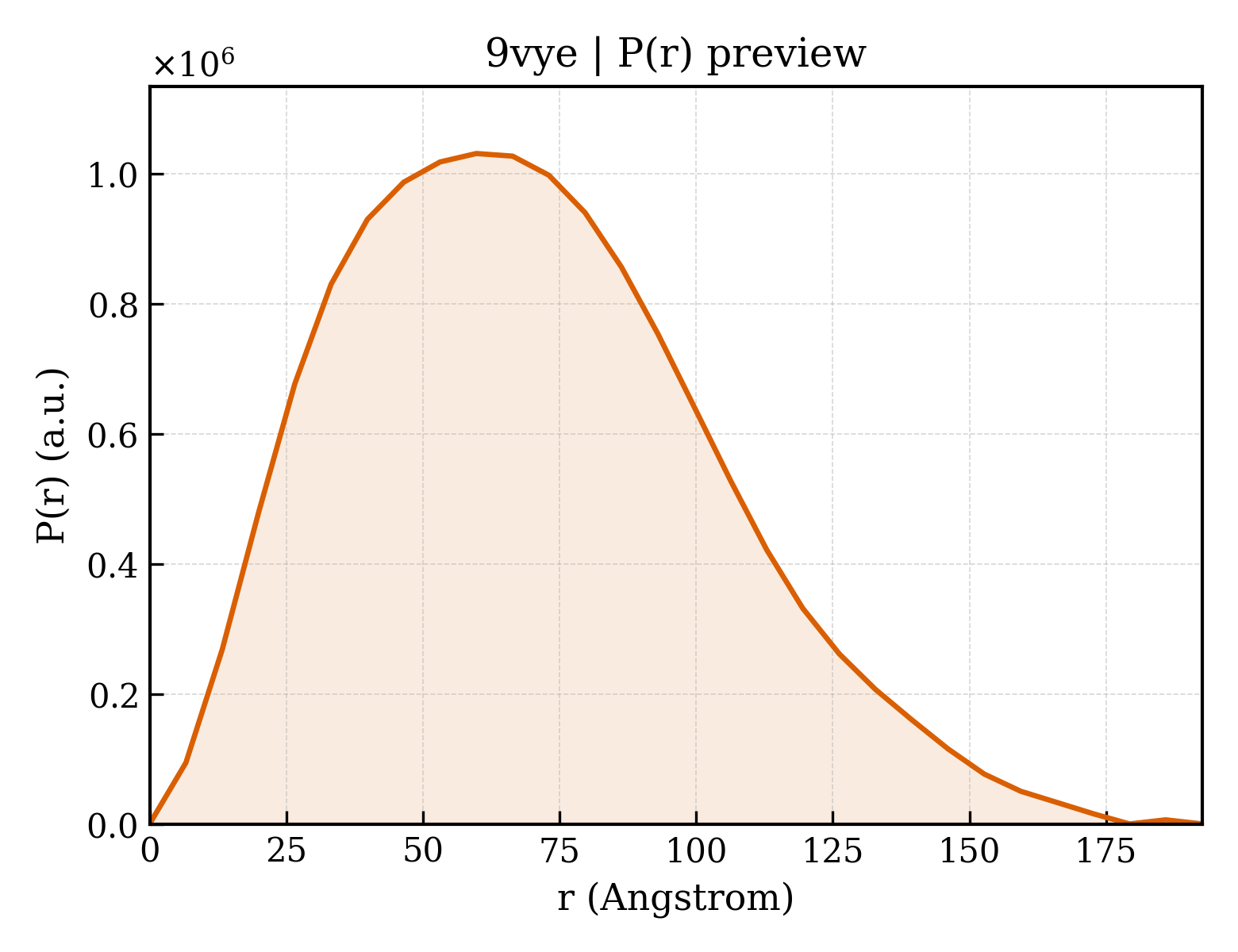

P(r) Distribution
1. Structure Basics
| entry_id | 9vye |
| deposition_date | 2025-07-21 |
| title | Cyanopodophage Pan3 capsid |
| keywords | Cyanophage, Virus, Capsid, Major capsid protein; VIRUS |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 54.08 Å |
| rg_electron | 54.08 Å |
| i0 | 1146340000.00 |
| molecular_weight | 276680.0 kDa |
| excluded_volume | 343780 ų |
| envelope_volume | 494950 ų |
| shell_volume | 76695 ų |
| envelope_diameter | 214.4 Å |
| shell_rg | 54.69 Å |
| envelope_rg | 55.18 Å |
| shape_rg | 54.10 Å |
| total_rg | 54.03 Å |
| total_atoms | 19478 |
| n_residues | 2567 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 192.6 Å |
| rg_real | 54.30 Å |
| rg_real_error | 2.42 Å |
| i0_real | 1.1460e+09 |
| i0_real_error | 2.6670e+07 |
| rg_reciprocal | 53.88 Å |
| i0_reciprocal | 1146000000.0000 |
| total_estimate | 0.8530 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 59.8 Å |
| skewness | 0.448 |
| kurtosis | -0.238 |
| angular_range | — – 0.1450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 101300000.0000 |
| n_real_points | 30 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.726 |
