1. Structure Basics

entry_id	9w4s
deposition_date	2025-08-01
title	Cryo-EM structure of hTUT4_mini:hLin28A:pre-let-7g miRNA_UUU, conformation 2
keywords	Complex, TUTase, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.90 Å
rg_electron	36.00 Å
i0	130263000.00
molecular_weight	79272.0 kDa
excluded_volume	93969 Å³
envelope_volume	133250 Å³
shell_volume	32887 Å³
envelope_diameter	128.7 Å
shell_rg	39.08 Å
envelope_rg	35.89 Å
shape_rg	36.01 Å
total_rg	36.16 Å
total_atoms	5478
n_residues	588
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	121.3 Å
rg_real	35.18 Å
rg_real_error	1.29 Å
i0_real	1.3030e+08
i0_real_error	2.3890e+06
rg_reciprocal	35.01 Å
i0_reciprocal	130200000.0000
total_estimate	0.8439
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	37.7 Å
skewness	0.519
kurtosis	-0.228
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	7398000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.795; Smooth: 0.734

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Terminal uridylyltransferase 4
formula_weight	128071.1 kDa
ec_number	2.7.7.52
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5478

MEKCALQNSPRSQKQQTCTDNTGDSDDSASGIEDVSDDLSKMKNDESNKENSSEMDYLENATVIDESALTPEQRLGLKQAEERLERDHIFRLEKRSPEYTNCRYLCKLCLIHIENIQGAHKHIKEKRHKKNILEKQEESELRSLPPPSPAHLAALSVAVIELAKEHGITDDDLRVRQEIVEEMSKVITTFLPECSLRLYGSSLTRFALKSSDVNIDIKFPPKMNHPDLLIKVLGILKKNVLYVDVESDFHAKVPVVVCRDRKSGLLCRVSAGNDMACLTTDLLTALGKIEPVFIPLVLAFRYWAKLCYIDSQTDGGIPSYCFALMVMFFLQQRKPPLLPCLLGSWIEGFDPKRMDDFQLKGIVEEKFVKWECNSSSATEKNSIAEENKAKADQPKDDTKKTETDNQSNAMKEKHGKSPLALETPNRVSLGQLWLELLKFYTLDFALEEYVICVRIQDILTRENKNWPKRRIAIEDPFSVKRNVARSLNSQLVYEYVVERFRAAYRYFACPQTKGGNKSTVDFKKREKGKISNKKPVKSNNMATNGCILLGETTEKINAEREQPVQCDEMDCTSQRCIIDNNNLLVNELDFADHGQDSSSLSTSKSSEIEPKLDKKQDDLAPSETCLKKELSQCNCIDLSKSPDPDKSTGTDCRSNLETESSHQSVCTDTSATSCNCKATEDASDLNDDDNLPTQELYYVFDKFILTSGKPPTIVCSICKKDGHSKNDCPEDFRKIDLKPLPPMTNRFREILDLVCKRCFDELSPPCSEQHNREQILIGLEKFIQKEYDEKARLCLFGSSKNGFGFRDSDLDICMTLEGHENAEKLNCKEIIENLAKILKRHPGLRNILPITTAKVPIVKFEHRRSGLEGDISLYNTLAQHNTRMLATYAAIDPRVQYLGYTMKVFAKRCDIGDASRGSLSSYAYILMVLYFLQQRKPPVIPVLQEIFDGKQIPQRMVDGWNAFFFDKTEELKKRLPSLGKNTESLGELWLGLLRFYTEEFDFKEYVISIRQKKLLTTFEKQWTSKCIAIEDPFDLNHNLGAGVSRKMTNFIMKAFINGRKLFGTPFYPLIGREAEYFFDSRVLTDGELAPNDRCCRVCGKIGHYMKDCPKRKSLEHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	Protein lin-28 homolog A
formula_weight	23850.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MGSVSNQQFAGGCAKAAEEAPEEAPEDAARAADEPQLLHGAGICKWFNVRMGFGFLSMTARAGVALDPPVDVFVHQSKLHMEGFRSLKEGEAVEFTFKKSAKGLESIRVTGPGGVFCIGSERRPKGKSMQKRRSKGDRCYNCGGLDHHAKECKLPPQPKKCHFCQSISHMVASCPLKAQQGPSAQGKPTYFREEEEEIHSPTLLPEAQNLEHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 polymer

description	pre-let-7g miRNA
formula_weight	26035.4 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	C

UGAGGUAGUAGUUUGUACAGUUUGAGGGUCUAUGAUACCACCCGGUACAGGAGAUAACUGUACAGGCCACUGCCUUGCUUU

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.82 Å
resolution_method	—
num_particles	274962

fit	/app/data/saxs_computation/w4/9w4s/9w4s.fit
pddf	/app/data/pr_computation/w4/9w4s/9w4s.pr.out
profile	/app/data/saxs_computation/w4/9w4s/9w4s.dat

Cryo-EM structure of hTUT4_mini:hLin28A:pre-let-7g miRNA_UUU, conformation 2

SAXS Profile

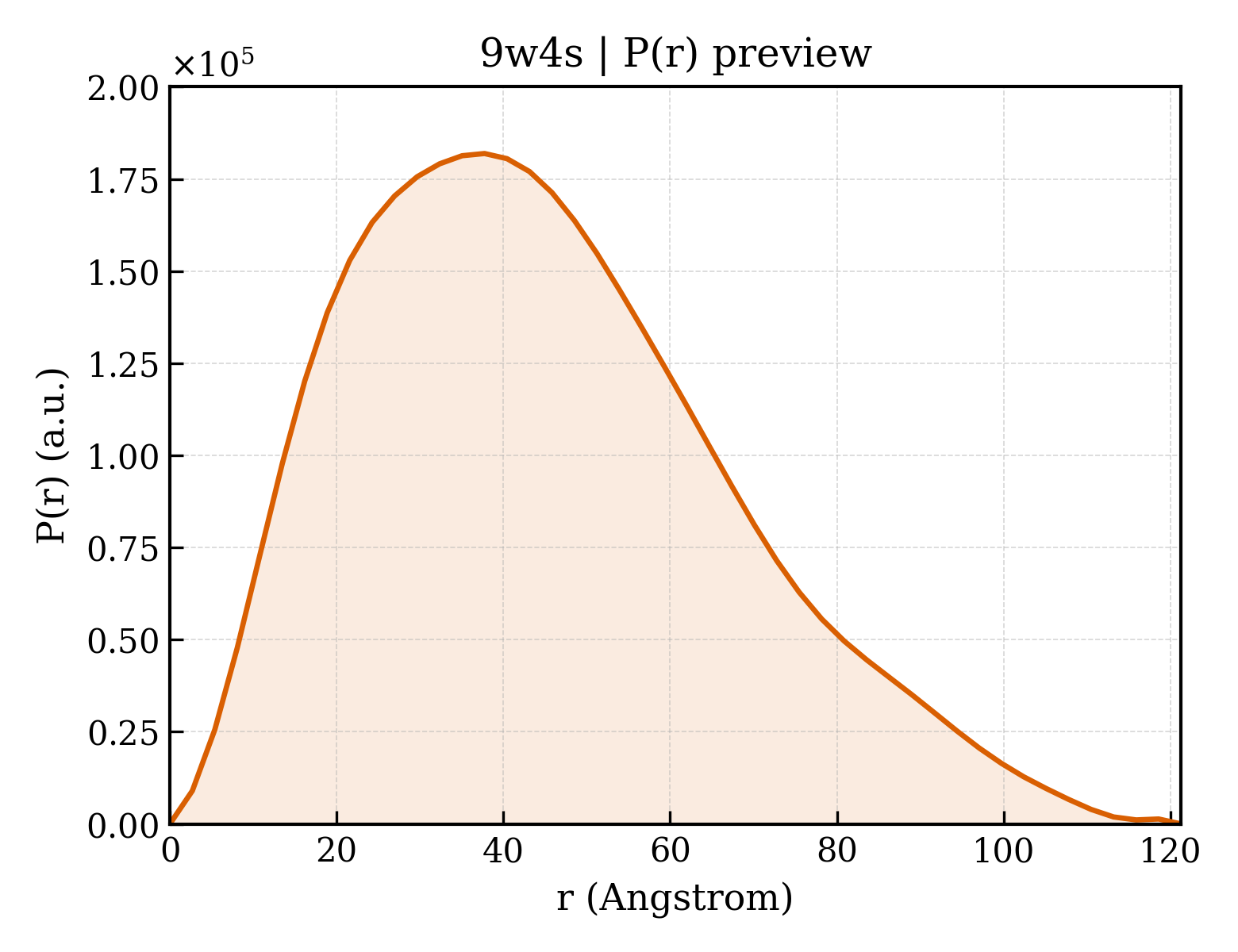

P(r) Distribution
