SAXSdb — 9waj

▼

1. Structure Basics

entry_id	9waj
deposition_date	2025-08-12
title	Cryo-EM structure of a human sodium pump wildtype in ouabain-bound E2P state
keywords	P-type ATPase, Na+, K+, ATPase, Na/K-ATPase, cation pump, transporter, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	46.42 Å
rg_electron	46.81 Å
i0	276659000.00
molecular_weight	140170.0 kDa
excluded_volume	176950 Å³
envelope_volume	231950 Å³
shell_volume	46032 Å³
envelope_diameter	166.7 Å
shell_rg	44.06 Å
envelope_rg	46.76 Å
shape_rg	46.86 Å
total_rg	46.51 Å
total_atoms	9857
n_residues	1251
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	156.3 Å
rg_real	47.22 Å
rg_real_error	1.86 Å
i0_real	2.7670e+08
i0_real_error	5.3120e+06
rg_reciprocal	46.42 Å
i0_reciprocal	276400000.0000
total_estimate	0.5149
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	36.8 Å
skewness	0.584
kurtosis	-0.472
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	21360000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.626; Stabil: 1.000; Sysdev: 0.021; Positv: 1.000; Valcen: 0.634; Smooth: 0.114

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Sodium/potassium-transporting ATPase subunit beta-1
formula_weight	35108.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	9882

MARGKAKEEGSWKKFIWNSEKKEFLGRTGGSWFKILLFYVIFYGCLAGIFIGTIQVMLLTISEFKPTYQDRVAPPGLTQIPQIQKTEISFRPNDPKSYEAYVLNIVRFLEKYKDSAQRDDMIFEDCGDVPSEPKERGDFNHERGERKVCRFKLEWLGNCSGLNDETYGYKEGKPCIIIKLNRVLGFKPKPPKNESLETYPVMKYNPNVLPVQCTGKRDEDKDKVGNVEYFGLGNSPGFPLQYYPYYGKLLQPKYLQPLLAVQFTNLTMDTEIRIECKAYGENIGYSEKDRFQGRFDVKIEVKS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Sodium/potassium-transporting ATPase subunit alpha-1
formula_weight	108846.0 kDa
ec_number	7.2.2.13
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

VSMDDHKLSLDELHRKYGTDLSRGLTSARAAEILARDGPNALTPPPTTPEWIKFCRQLFGGFSMLLWIGAILCFLAYSIQAATEEEPQNDNLYLGVVLSAVVIITGCFSYYQEAKSSKIMESFKNMVPQQALVIRNGEKMSINAEEVVVGDLVEVKGGDRIPADLRIISANGCKVDNSSLTGESEPQTRSPDFTNENPLETRNIAFFSTNCVEGTARGIVVYTGDRTVMGRIATLASGLEGGQTPIAAEIEHFIHIITGVAVFLGVSFFILSLILEYTWLEAVIFLIGIIVANVPEGLLATVTVCLTLTAKRMARKNCLVKNLEAVETLGSTSTICSDKTGTLTQNRMTVAHMWFDNQIHEADTTENQSGVSFDKTSATWLALSRIAGLCNRAVFQANQENLPILKRAVAGDASESALLKCIELCCGSVKEMRERYAKIVEIPFNSTNKYQLSIHKNPNTSEPQHLLVMKGAPERILDRCSSILLHGKEQPLDEELKDAFQNAYLELGGLGERVLGFCHLFLPDEQFPEGFQFDTDDVNFPIDNLCFVGLISMIDPPRAAVPDAVGKCRSAGIKVIMVTGDHPITAKAIAKGVGIISEGNETVEDIAARLNIPVSQVNPRDAKACVVHGSDLKDMTSEQLDDILKYHTEIVFARTSPQQKLIIVEGCQRQGAIVAVTGDGVNDSPALKKADIGVAMGIAGSDVSKQAADMILLDDNFASIVTGVEEGRLIFDNLKKSIAYTLTSNIPEITPFLIFIIANIPLPLGTVTILCIDLGTDMVPAISLAYEQAESDIMKRQPRNPKTDKLVNERLISMAYGQIGMIQALGGFFTYFVILAENGFLPIHLLGLRVDWDDRWINDVEDSYGQQWTYEQRKIVEFTCHTAFFVSIVVVQWADLVICKTRRNSVFQQGMKNKILIFGLFEETALAAFLSYCPGMGVALRMYPLKPTWWFCAFPYSLLIFVYDEVRKLIIRRRPGGWVEKETYY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	OUABAIN
formula_weight	584.7 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	25

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.39 Å
resolution_method	—
num_particles	473771

fit	/app/data/saxs_computation/wa/9waj/9waj.fit
pddf	/app/data/pr_computation/wa/9waj/9waj.pr.out
profile	/app/data/saxs_computation/wa/9waj/9waj.dat

Cryo-EM structure of a human sodium pump wildtype in ouabain-bound E2P state

SAXS Profile

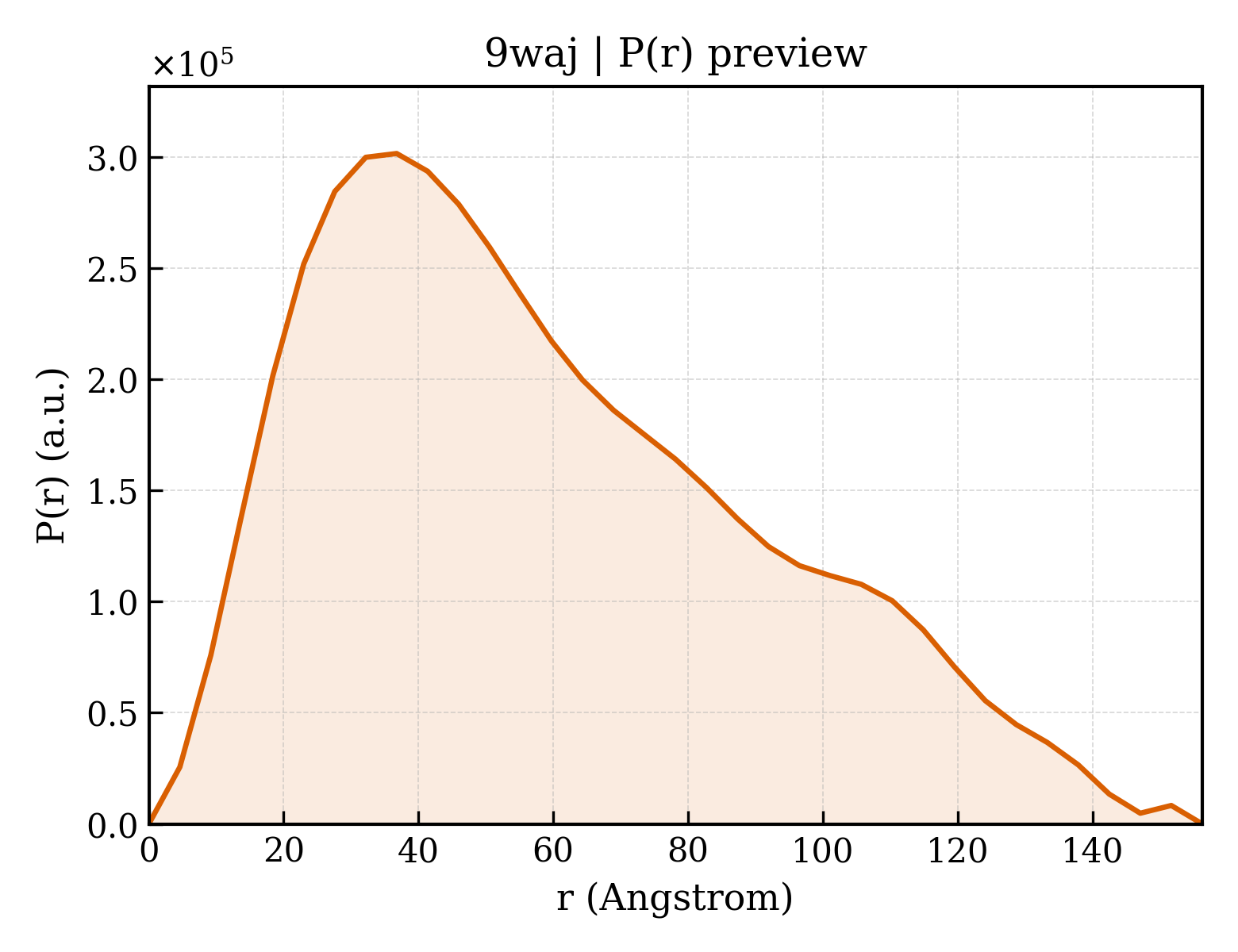

P(r) Distribution
