9wfh
Carbohydrate-binding module 32 of LnbB from Bifidobacterium bifidum, ligand free form, multiple small-wedge data set
SAXS Profile

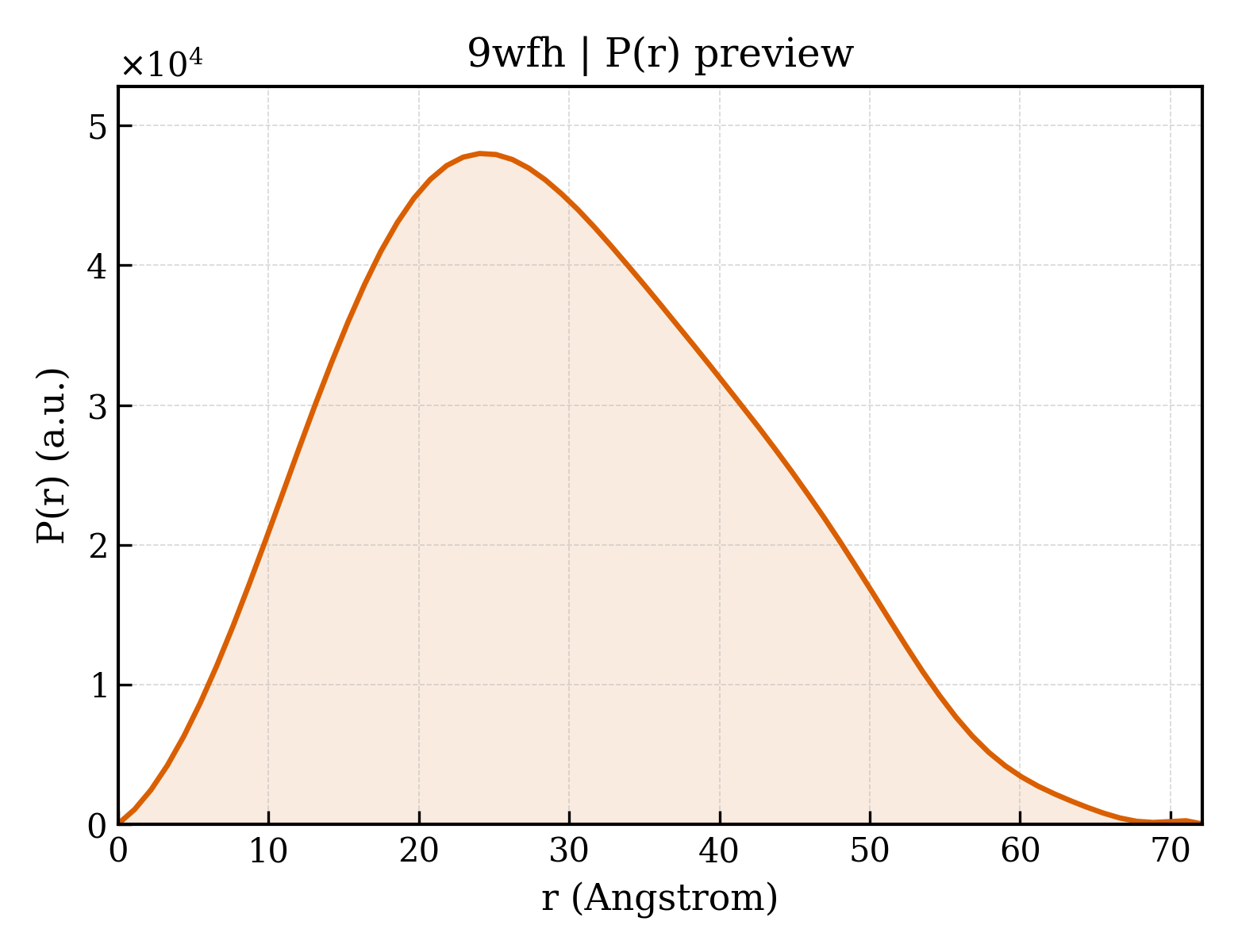

P(r) Distribution
1. Structure Basics
| entry_id | 9wfh |
| deposition_date | 2025-08-21 |
| title | Carbohydrate-binding module 32 of LnbB from Bifidobacterium bifidum, ligand free form, multiple small-wedge data set |
| keywords | CARBOHYDRATE BINDING MODULE FAMILY 32 DOMAIN, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.56 Å |
| rg_electron | 21.65 Å |
| i0 | 20571400.00 |
| molecular_weight | 34341.0 kDa |
| excluded_volume | 42797 ų |
| envelope_volume | 50760 ų |
| shell_volume | 20070 ų |
| envelope_diameter | 71.8 Å |
| shell_rg | 27.55 Å |
| envelope_rg | 21.75 Å |
| shape_rg | 21.64 Å |
| total_rg | 22.46 Å |
| total_atoms | 2432 |
| n_residues | 323 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.1 Å |
| rg_real | 22.54 Å |
| rg_real_error | 0.41 Å |
| i0_real | 2.0570e+07 |
| i0_real_error | 2.4270e+05 |
| rg_reciprocal | 22.55 Å |
| i0_reciprocal | 20570000.0000 |
| total_estimate | 0.7043 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 24.0 Å |
| skewness | 0.283 |
| kurtosis | -0.522 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3339000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 0.130; Positv: 1.000; Valcen: 0.991; Smooth: 0.977 |
