9wfu

Cryo-EM structure of ATP-bound Arabidopsis thaliana fatty acid transporter CTS

Method: ELECTRON MICROSCOPY D_max: 127.6 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9wfu
deposition_date	2025-08-22
title	Cryo-EM structure of ATP-bound Arabidopsis thaliana fatty acid transporter CTS
keywords	ABC transporter, fatty acid transporter, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

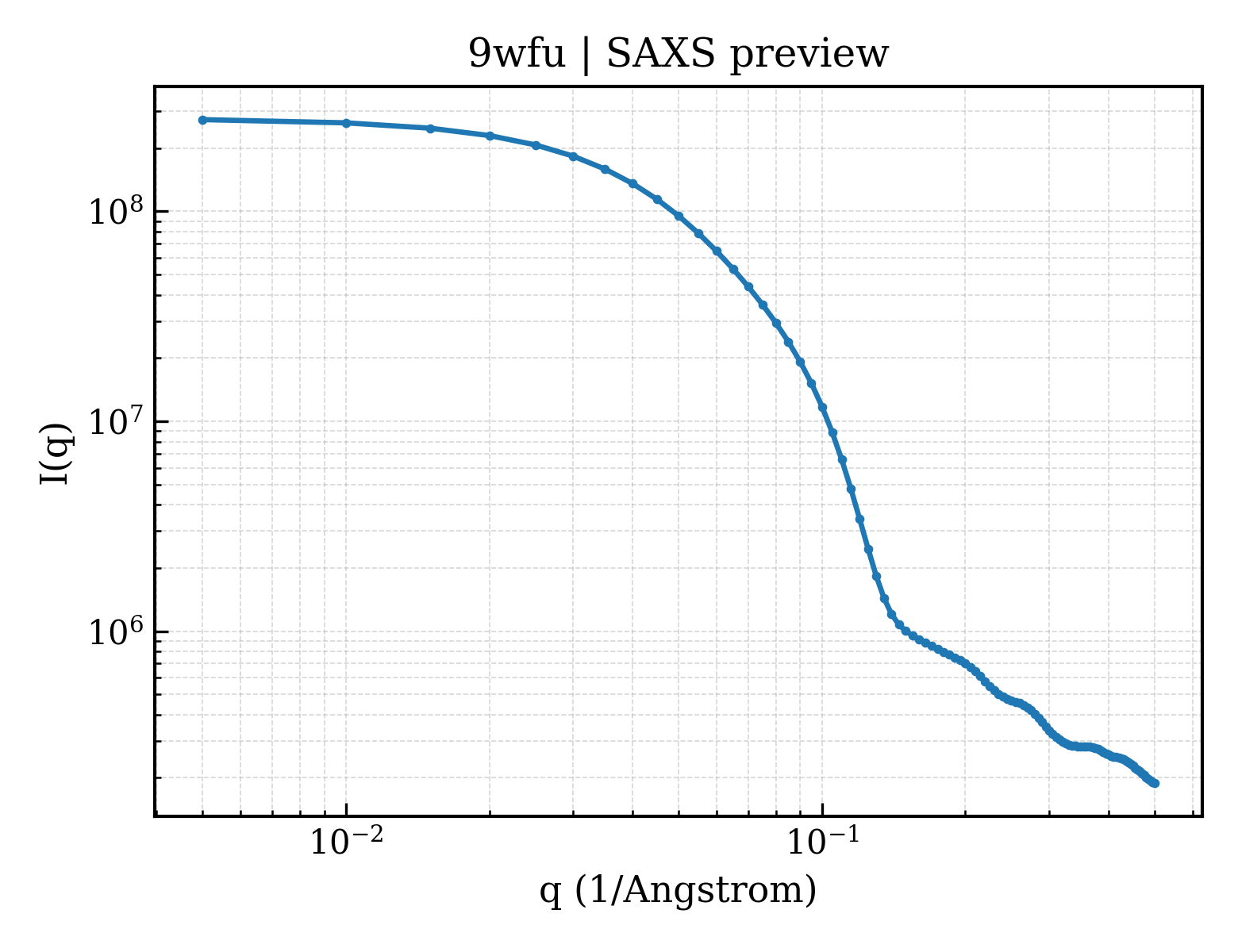

2. SAXS Parameters (CRYSOL)

rg_guinier	37.23 Å
rg_electron	37.64 Å
i0	276903000.00
molecular_weight	136800.0 kDa
excluded_volume	172170 Å³
envelope_volume	220910 Å³
shell_volume	50674 Å³
envelope_diameter	136.4 Å
shell_rg	42.30 Å
envelope_rg	37.52 Å
shape_rg	37.64 Å
total_rg	37.93 Å
total_atoms	9628
n_residues	1210
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

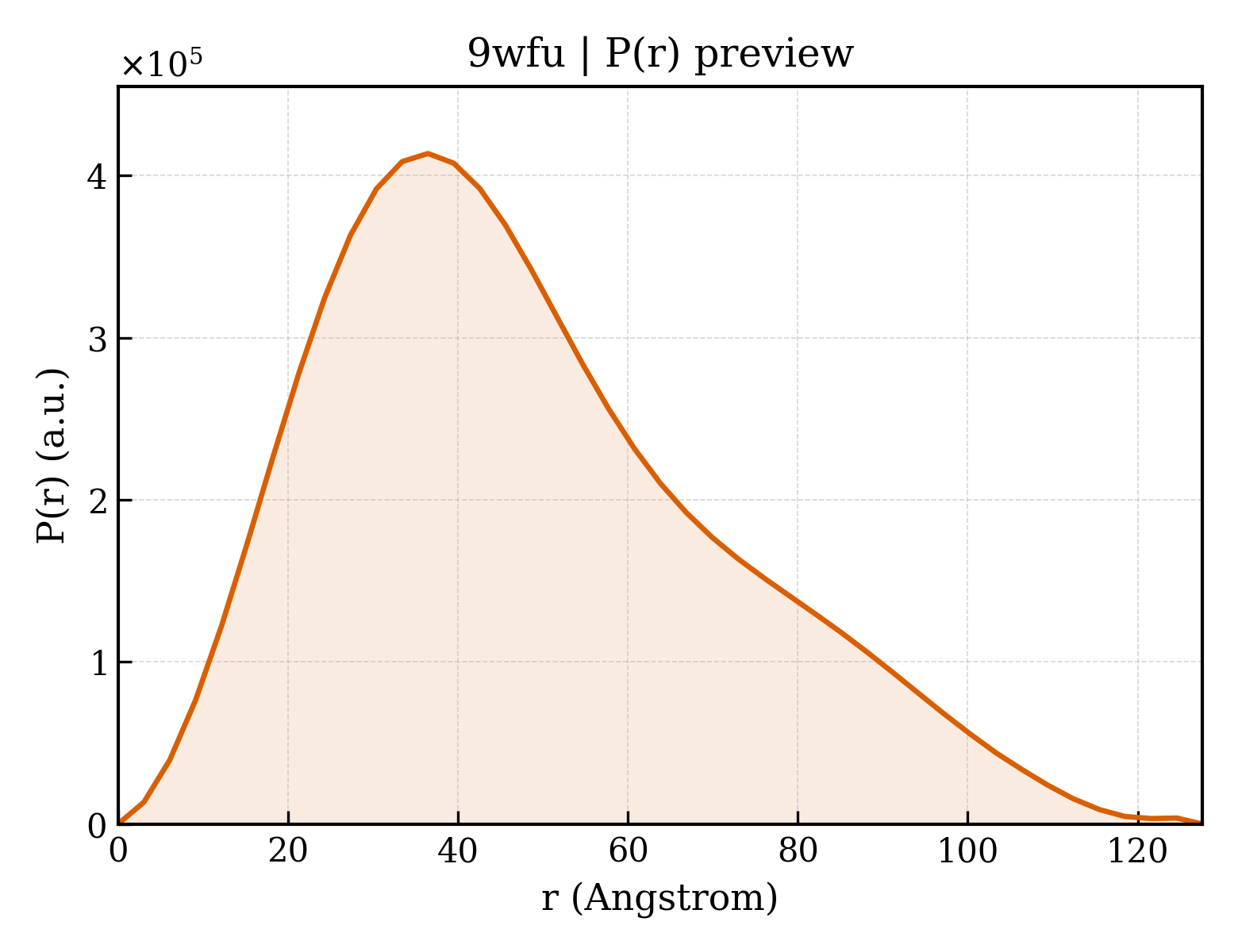

3. P(r) Analysis (GNOM)

dmax	127.6 Å
rg_real	37.59 Å
rg_real_error	1.23 Å
i0_real	2.7690e+08
i0_real_error	4.6430e+06
rg_reciprocal	37.37 Å
i0_reciprocal	276800000.0000
total_estimate	0.8265
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	36.5 Å
skewness	0.598
kurtosis	-0.211
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0000
highest_alpha	93530000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.674; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.938; Smooth: 0.780

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	ABC transporter D family member 1
formula_weight	149765.5 kDa
ec_number	7.6.2.4
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	9628

MPSLQLLQLTERGRGLVASRRKSILLAAGIVAAGGTAVYLKSRVASRRPDSSRLCNGQSDDDETLEKLTATDQNAKITTKKKKGGGLKSLQVLTAILLSQMGKMGARDLLALVATVVFRTALSNRLAKVQGFLFRAAFLRRAPLFLRLISENIMLCFMLSTLHSTSKYITGALSLRFRKILTKIIHSHYFENMVYYKISHVDGRITHPEQRIASDVPRFSSELSDLILDDLTAVTDGILYAWRLCSYASPKYIFWILAYVLGAGTAIRNFSPSFGKLMSKEQQLEGEYRQLHSRLRTHSESIAFYGGETREESHIQQKFKNLVSHMSHVLHDHWWFGMIQDFLLKYLGATVAVILIIEPFFSGHLRPDDSTLGRAEMLSNIRYHTSVIISLFQALGTLSISSRRLNRLSGYADRIHELMAVSRELSGDDKSSFQRNRSRNYLSEANYVEFSDVKVVTPTGNVLVEDLTLRVEQGSNLLITGPNGSGKSSLFRVLGGLWPLVSGHIVKPGVGSDLNKEIFYVPQRPYMAVGTLRDQLIYPLTSGQESELLTEIGMVELLKNVDLEYLLDRYQPEKEVNWGDELSLGEQQRLGMARLFYHKPKFAILDQCTSAVTTDMEERFAAKVRAMGTSCITISHRPALVAFHDVVLSLDGEGGWSVHYKRDDSALLTDAEIDSVKSSDTDRQNDAMVVQRAFAAARKESATNSKAQSYQTQLIARSPVVDKSVVLPRFPQPQTSQRALPSRVAAMLNVLIPTIFDKQGAQLLAVACLVVSRTLISDRIASLNGTTVKYVLEQDKAAFVRLIGLSVLQSGASSIIAPSLRHLTQRLALGWRIRLTQHLLRNYLRNNAFYKVFHMSGNSIDADQRLTRDLEKLTADLSGLLTGMVKPSVDILWFTWRMKLLTGQRGVAILYTYMLLGLGFLRRVAPDFGDLAGEEQQLEGKFRFMHERLNTHAESIAFFGGGAREKAMVDKKFRALLDHSLMLLRKKWLYGILDDFVTKQLPNNVTWGLSLLYALEHKGDRALVSTQGELAHALRYLASVVSQSFMAFGDILELHKKFLELSGGINRIFELDEFLDASQSGVTSENQTSRLDSQDLLSFSEVDIITPAQKLMASKLSCEIVSGKSLLVTGPNGSGKTSVFRVLRDIWPTVCGRLTKPSLDIKELGSGNGMFFVPQRPYTCLGTLRDQIIYPLSKEEAEKRAAKLYTSGESSTEAGSILDSHLKTILENVRLVYLLERDVGGWDATTNWEDILSLGEQQRLGMARLFFHRPKFGVLDECTNATSVDVEEQLYRVARDMGVTFITSSQRPALIPFHSLELRLIDGEGNWELRSIEQTTE

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Homo sapiens

Entity 2 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.20 Å
resolution_method	—
num_particles	298362

fit	/app/data/saxs_computation/wf/9wfu/9wfu.fit
pddf	/app/data/pr_computation/wf/9wfu/9wfu.pr.out
profile	/app/data/saxs_computation/wf/9wfu/9wfu.dat
