9wiw
Crystal structure of a Escherichia phage UPEC07 protein

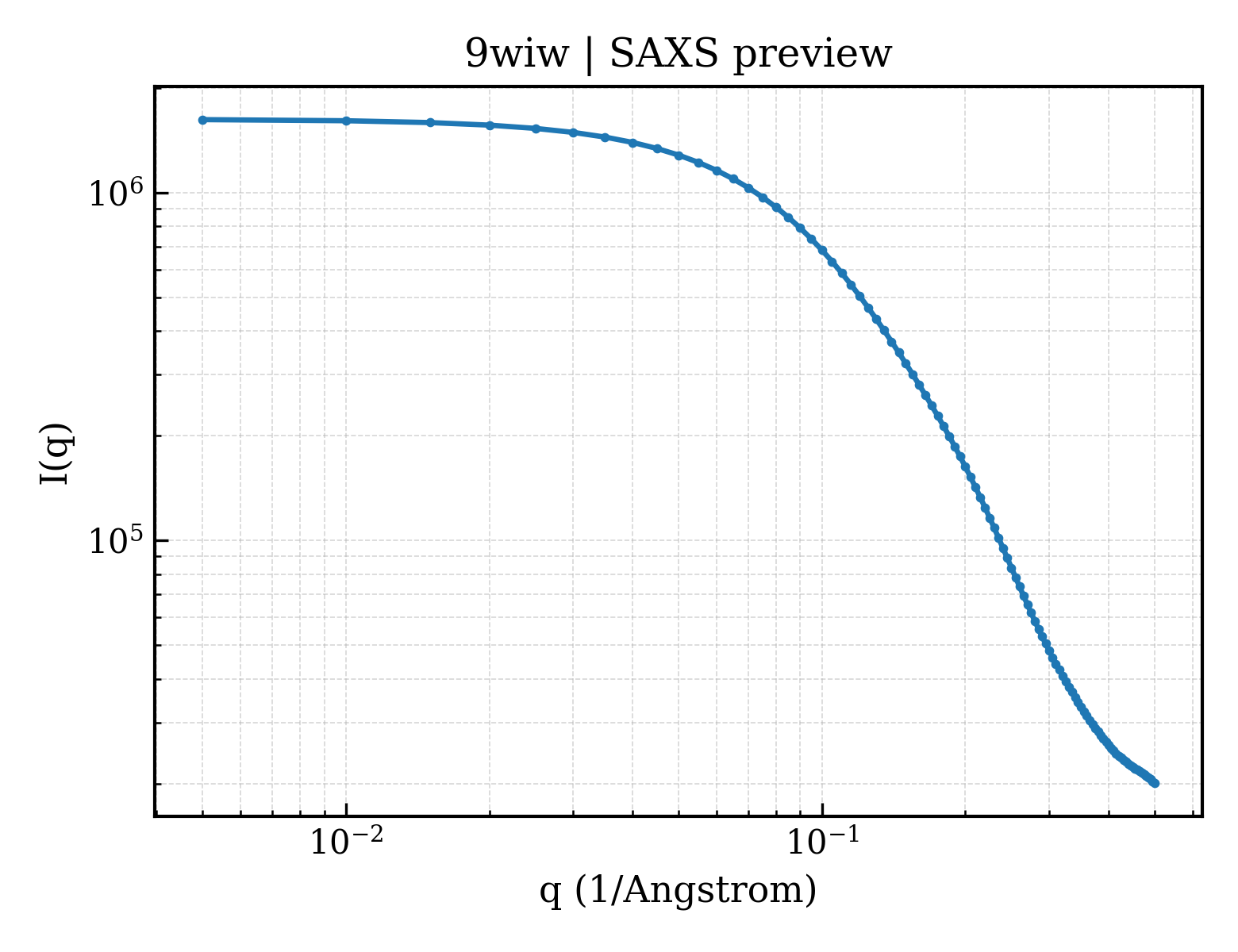

SAXS Profile

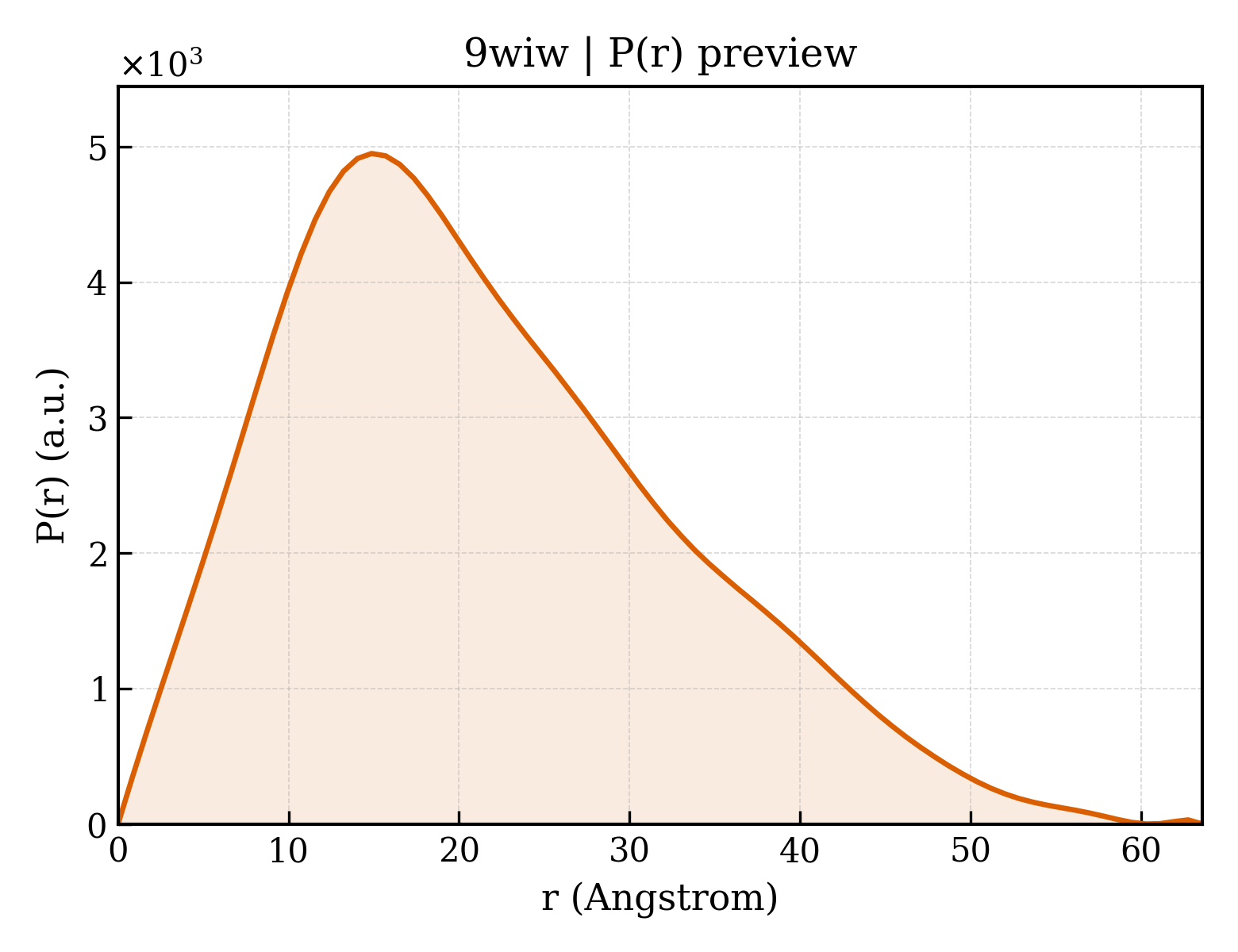

P(r) Distribution
1. Structure Basics
| entry_id | 9wiw |
| deposition_date | 2025-08-29 |
| last_revision | 2026-03-04 |
| title | Crystal structure of a Escherichia phage UPEC07 protein |
| keywords | helix, dimer, sponge protein, anti TypeIV Thoeris, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.82 Å |
| rg_electron | 16.46 Å |
| i0 | 1623050.00 |
| molecular_weight | 8471.0 kDa |
| excluded_volume | 10490 ų |
| envelope_volume | 13300 ų |
| shell_volume | 7997 ų |
| envelope_diameter | 62.6 Å |
| shell_rg | 19.78 Å |
| envelope_rg | 17.07 Å |
| shape_rg | 16.44 Å |
| total_rg | 17.24 Å |
| total_atoms | 595 |
| n_residues | 69 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.6 Å |
| rg_real | 17.08 Å |
| rg_real_error | 0.60 Å |
| i0_real | 1.6230e+06 |
| i0_real_error | 2.0750e+04 |
| rg_reciprocal | 17.04 Å |
| i0_reciprocal | 1623000.0000 |
| total_estimate | 0.6979 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 14.9 Å |
| skewness | 0.599 |
| kurtosis | -0.157 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 154400.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.595; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.283; Smooth: 0.000 |
