9wlr

Cryo-EM structure of human papillomavirus type 45

Method: ELECTRON MICROSCOPY D_max: 159.6 Å Quality: GOOD

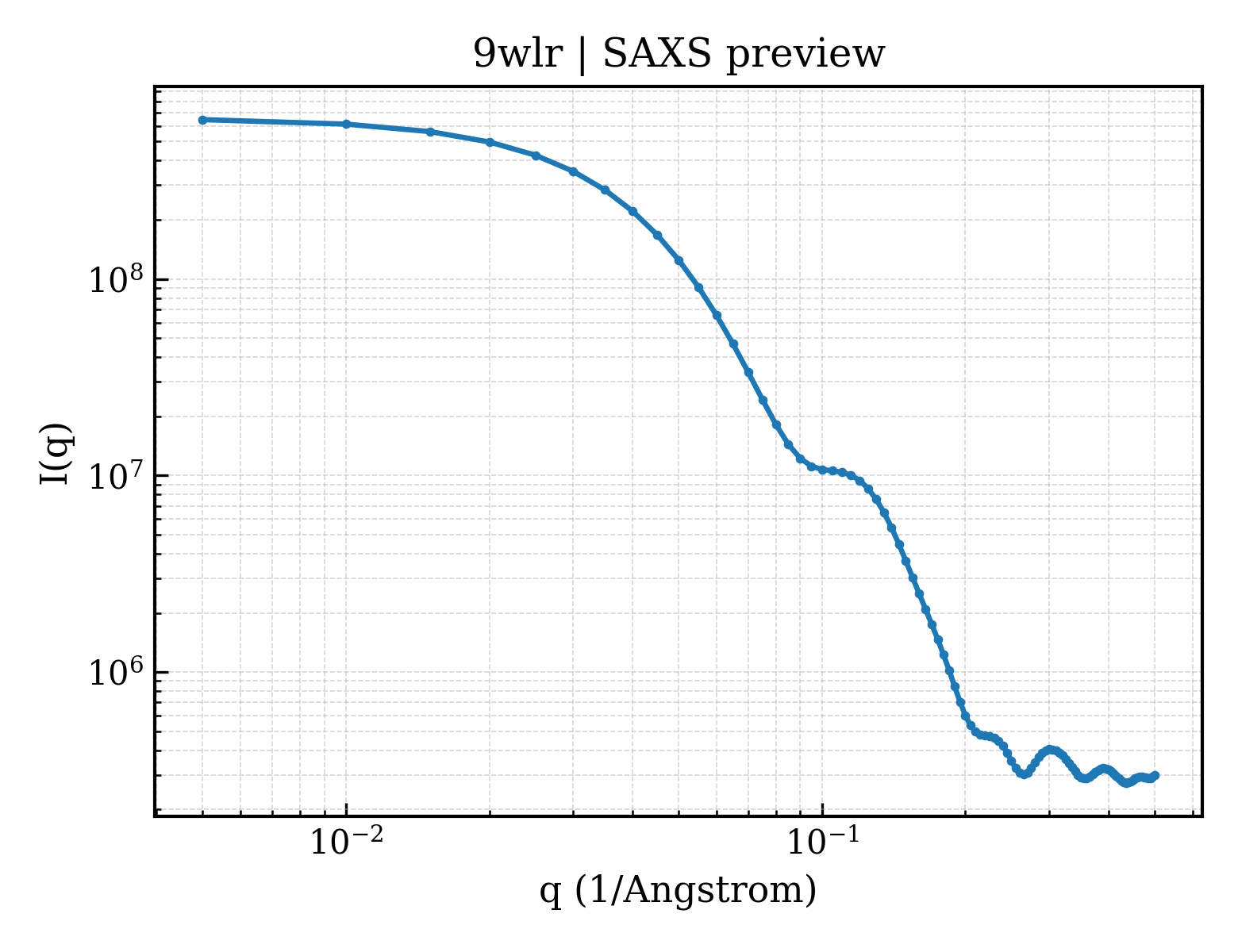

SAXS Profile

P(r) Distribution

P(r) distribution for 9wlr

▼

1. Structure Basics

entry_id	9wlr
deposition_date	2025-09-02
title	Cryo-EM structure of human papillomavirus type 45
keywords	Human papillomavirus, Cryo-EM, STRUCTURAL PROTEIN, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.74 Å
rg_electron	45.54 Å
i0	657826000.00
molecular_weight	205990.0 kDa
excluded_volume	254920 Å³
envelope_volume	407780 Å³
shell_volume	75397 Å³
envelope_diameter	169.4 Å
shell_rg	49.80 Å
envelope_rg	45.01 Å
shape_rg	45.53 Å
total_rg	45.78 Å
total_atoms	14554
n_residues	2106
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	159.6 Å
rg_real	45.86 Å
rg_real_error	1.50 Å
i0_real	6.5780e+08
i0_real_error	1.2240e+07
rg_reciprocal	45.74 Å
i0_reciprocal	657700000.0000
total_estimate	0.8498
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	56.3 Å
skewness	0.471
kurtosis	-0.020
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	70190000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.739; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.826

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
