9wtd
Filament structure of human Reg3alpha

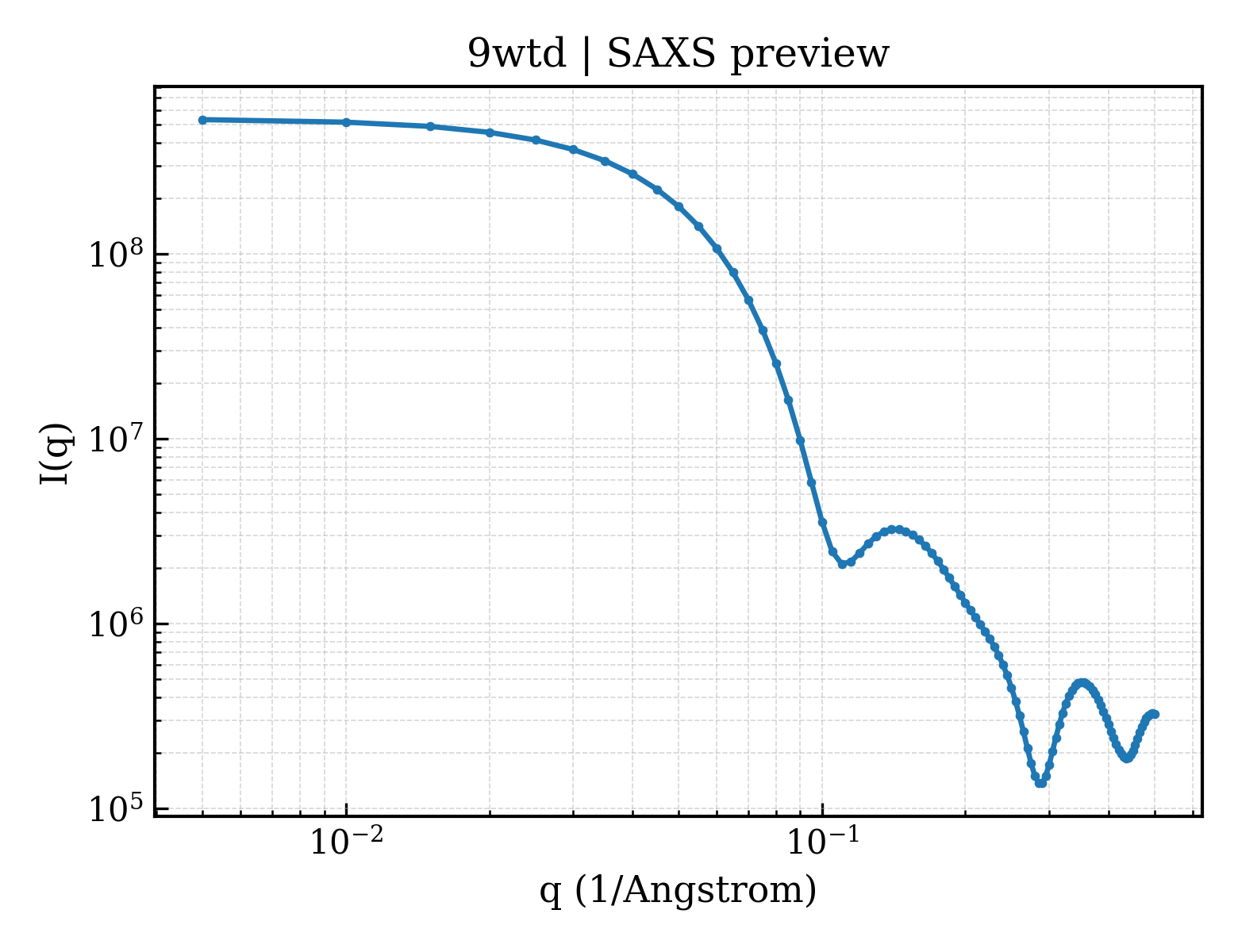

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9wtd |
| deposition_date | 2025-09-16 |
| title | Filament structure of human Reg3alpha |
| keywords | C-type lectin domain containing protein, antimicrobial activity, cryo-EM, protein filament, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.61 Å |
| rg_electron | 34.87 Å |
| i0 | 537867000.00 |
| molecular_weight | 183300.0 kDa |
| excluded_volume | 226820 ų |
| envelope_volume | 282160 ų |
| shell_volume | 64539 ų |
| envelope_diameter | 116.4 Å |
| shell_rg | 43.34 Å |
| envelope_rg | 34.64 Å |
| shape_rg | 34.88 Å |
| total_rg | 35.37 Å |
| total_atoms | 12912 |
| n_residues | 1656 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 111.3 Å |
| rg_real | 35.43 Å |
| rg_real_error | 0.61 Å |
| i0_real | 5.3790e+08 |
| i0_real_error | 9.1870e+06 |
| rg_reciprocal | 35.54 Å |
| i0_reciprocal | 537900000.0000 |
| total_estimate | 0.8863 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 45.5 Å |
| skewness | 0.217 |
| kurtosis | -0.306 |
| angular_range | — – 0.2200 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 88320000.0000 |
| n_real_points | 45 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.901 |
