9wxk
Linear fragment of lycosin9I with anti-MRSA activity

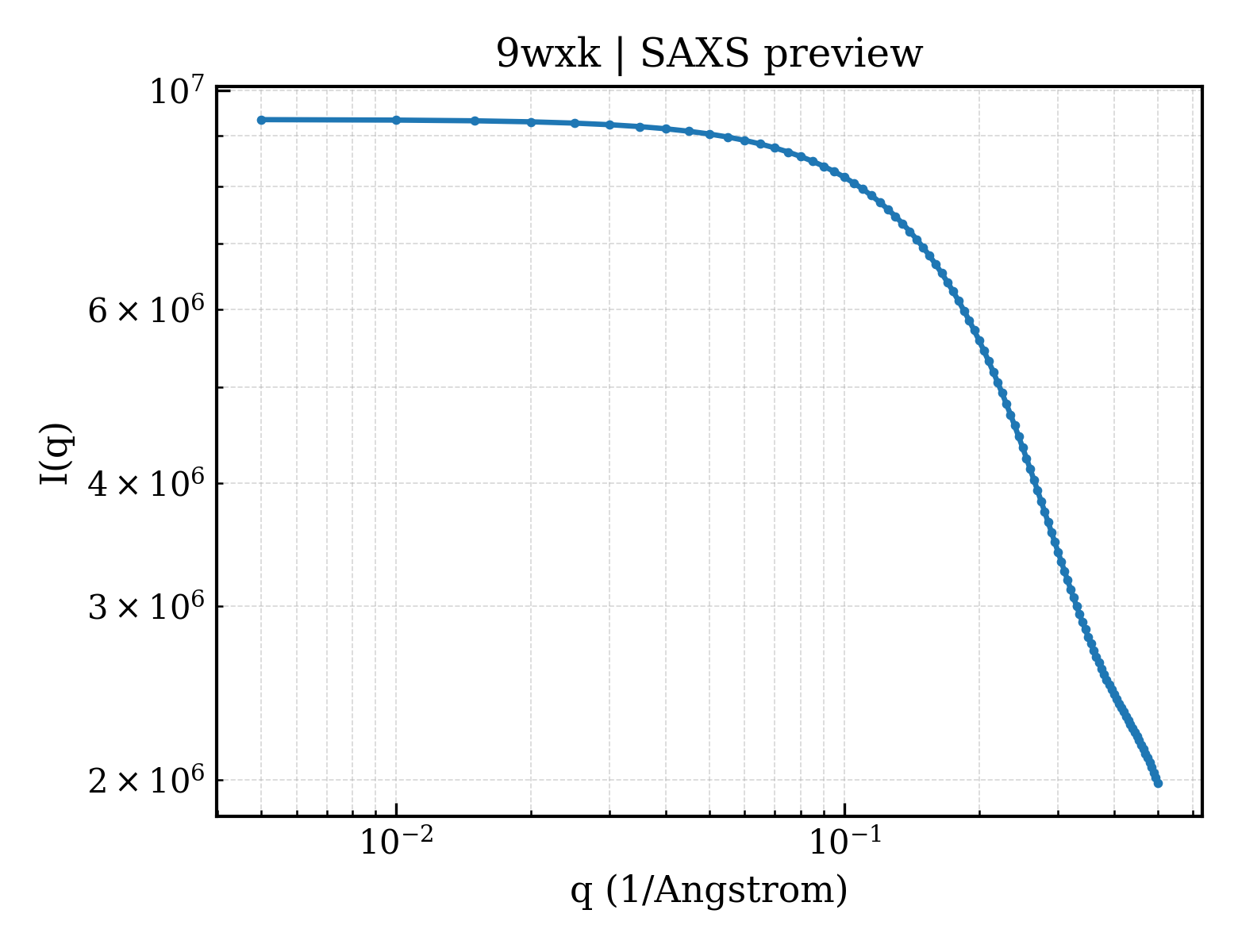

SAXS Profile

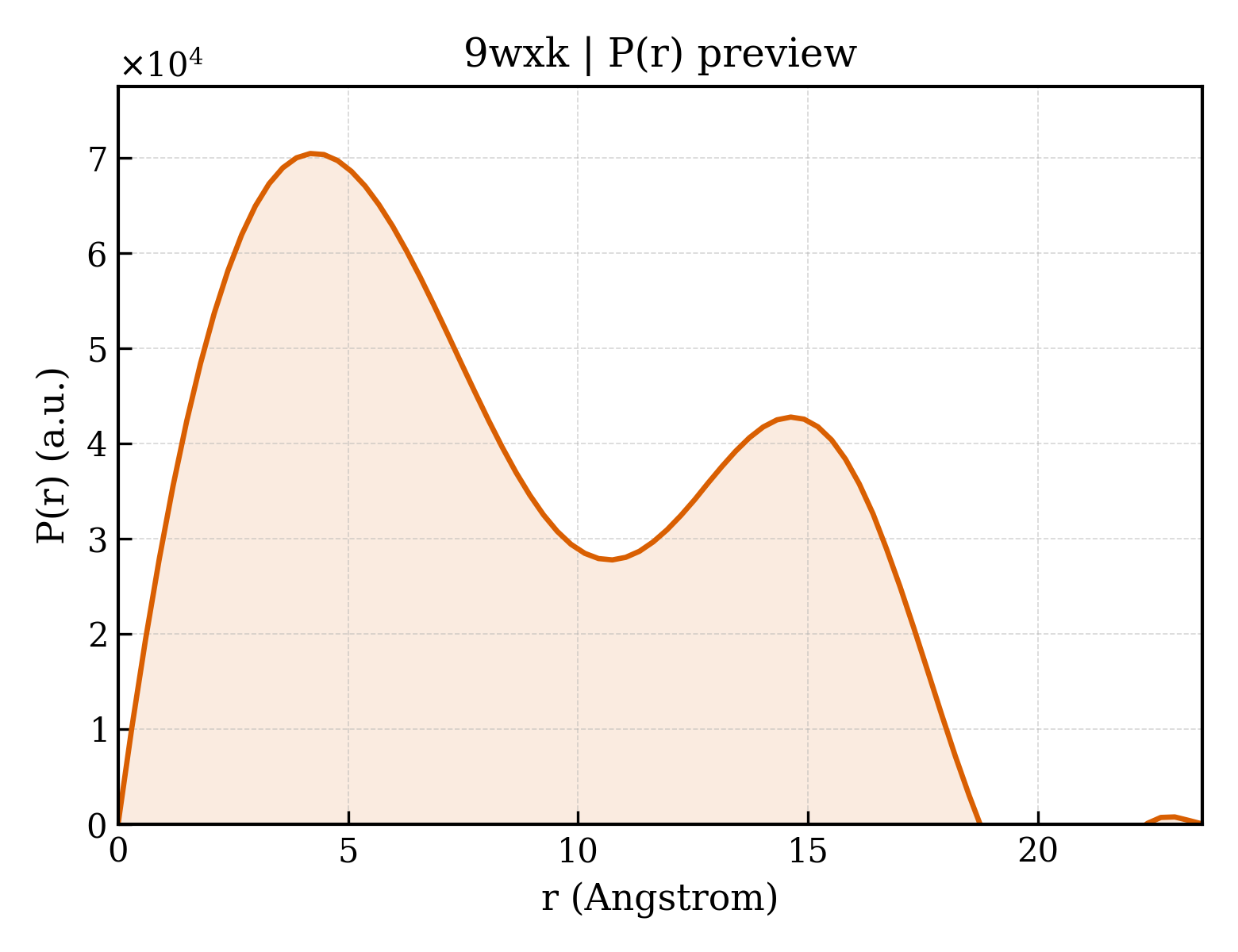

P(r) Distribution
1. Structure Basics
| entry_id | 9wxk |
| deposition_date | 2025-09-25 |
| last_revision | 2026-01-21 |
| title | Linear fragment of lycosin9I with anti-MRSA activity |
| keywords | Antimicrobial protein, AMP, linear peptide, spider toxin, alpha-helical peptide, MRSA; ANTIMICROBIAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.30 Å |
| rg_electron | 7.35 Å |
| i0 | 9344950.00 |
| molecular_weight | 30899.0 kDa |
| excluded_volume | 41052 ų |
| envelope_volume | 3005 ų |
| shell_volume | 3755 ų |
| envelope_diameter | 25.6 Å |
| shell_rg | 11.87 Å |
| envelope_rg | 8.18 Å |
| shape_rg | 7.31 Å |
| total_rg | 7.77 Å |
| total_atoms | 4580 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 23.6 Å |
| rg_real | 6.38 Å |
| rg_real_error | 0.34 Å |
| i0_real | 9.3450e+06 |
| i0_real_error | 8.9430e+04 |
| rg_reciprocal | 6.38 Å |
| i0_reciprocal | 9345000.0000 |
| total_estimate | 0.6092 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 4.2 Å |
| skewness | 0.165 |
| kurtosis | -1.780 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 366.1000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.093; Stabil: 0.991; Sysdev: 1.000; Positv: 1.000; Valcen: 0.025; Smooth: 0.637 |
