9x53

Crystal structure of RhoGDI2 in complex with Compound HR3119

Method: X-RAY DIFFRACTION D_max: 56.4 Å Quality: GOOD

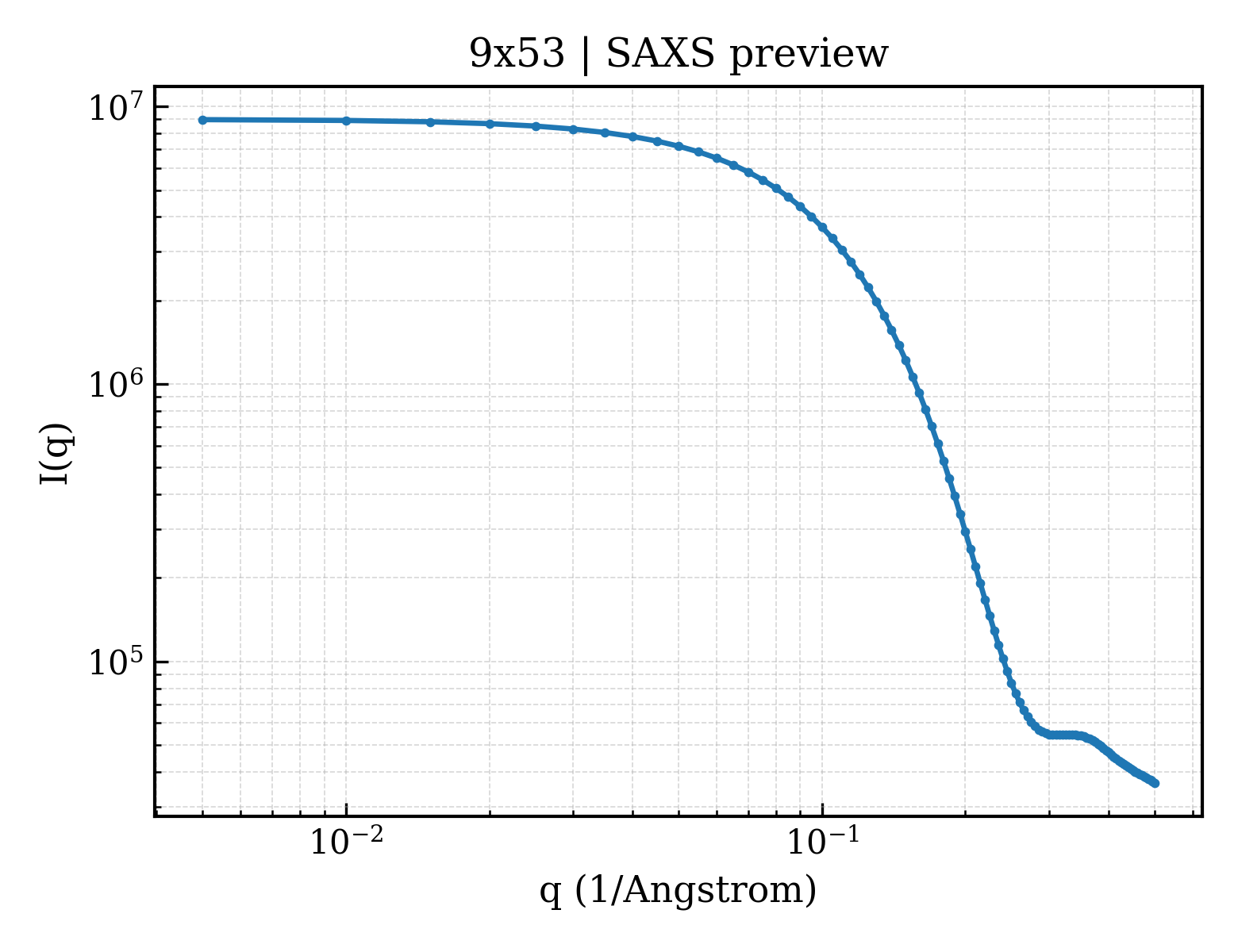

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9x53
deposition_date	2025-10-12
title	Crystal structure of RhoGDI2 in complex with Compound HR3119
keywords	Inhibitor, Complex, Rho GDP-dissociation inhibitor 2, SIGNALING PROTEIN; SIGNALING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.35 Å
rg_electron	15.34 Å
i0	8989550.00
molecular_weight	15070.0 kDa
excluded_volume	14690 Å³
envelope_volume	23220 Å³
shell_volume	13136 Å³
envelope_diameter	55.0 Å
shell_rg	20.88 Å
envelope_rg	15.69 Å
shape_rg	15.29 Å
total_rg	16.21 Å
total_atoms	1144
n_residues	137
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	56.4 Å
rg_real	16.32 Å
rg_real_error	0.27 Å
i0_real	8.9900e+06
i0_real_error	9.1550e+04
rg_reciprocal	16.33 Å
i0_reciprocal	8990000.0000
total_estimate	0.8651
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	18.8 Å
skewness	0.361
kurtosis	-0.187
angular_range	— – 0.4850 Å⁻¹
current_alpha	0.0000
highest_alpha	1701000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.756; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.984

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Rho GDP-dissociation inhibitor 2
formula_weight	16158.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1233

DPKAPNVVVTRLTLVCESAPGPITMDLTGDLEALKKETIVLKEGSEYRVKIHFKVNRDIVSGLKYVQHTYRTGVKVDKATFMVGSYGPRPEEYEFLTPVEEAPKGMLARGTYHNKSFFTDDDKQDHLSWEWNLSIKKEWTE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	(3~{R})-~{N}-[2-[[(~{R})-[4-(2-fluorophenyl)phenyl]-thiophen-2-yl-methyl]amino]-2-oxidanylidene-ethyl]pyrrolidine-3-carboxamide
formula_weight	437.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	nat
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	89

▶

6. Citations (1)

▶

length_a	55.492 Å
length_b	55.492 Å
length_c	94.691 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	1.850 Å
resolution_low	39.240 Å
r_factor	0.2032
r_work	0.2011
r_free	0.2452
