SAXSdb — 9x60

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA1 chain

Influenza B virus (B/Hubei-Wujiagang/158/2009)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 12 其他Polymer 6	FV2DP1-1B heavly chain × 3 FV2DP1-1B light chain × 3 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I0B882_9INFB
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–361； UniProt 1–361 Author chain B； PDBConstruct 1–361； UniProt 1–361 Author chain C； PDBConstruct 1–361； UniProt 1–361 Author chain P； PDBConstruct 1–186； UniProt 362–547 Author chain Q； PDBConstruct 1–186； UniProt 362–547 Author chain R； PDBConstruct 1–186； UniProt 362–547

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9x60
Deposition date deposition_date	2025-10-14
Structure title title	B/Hubei-Wujiagang/158/2009 HA in complex with FV2DP1-1B
Keywords keywords	Hemagglutinin, HA, antibody, influenza B virus, FV2DP1-1B, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9x60__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

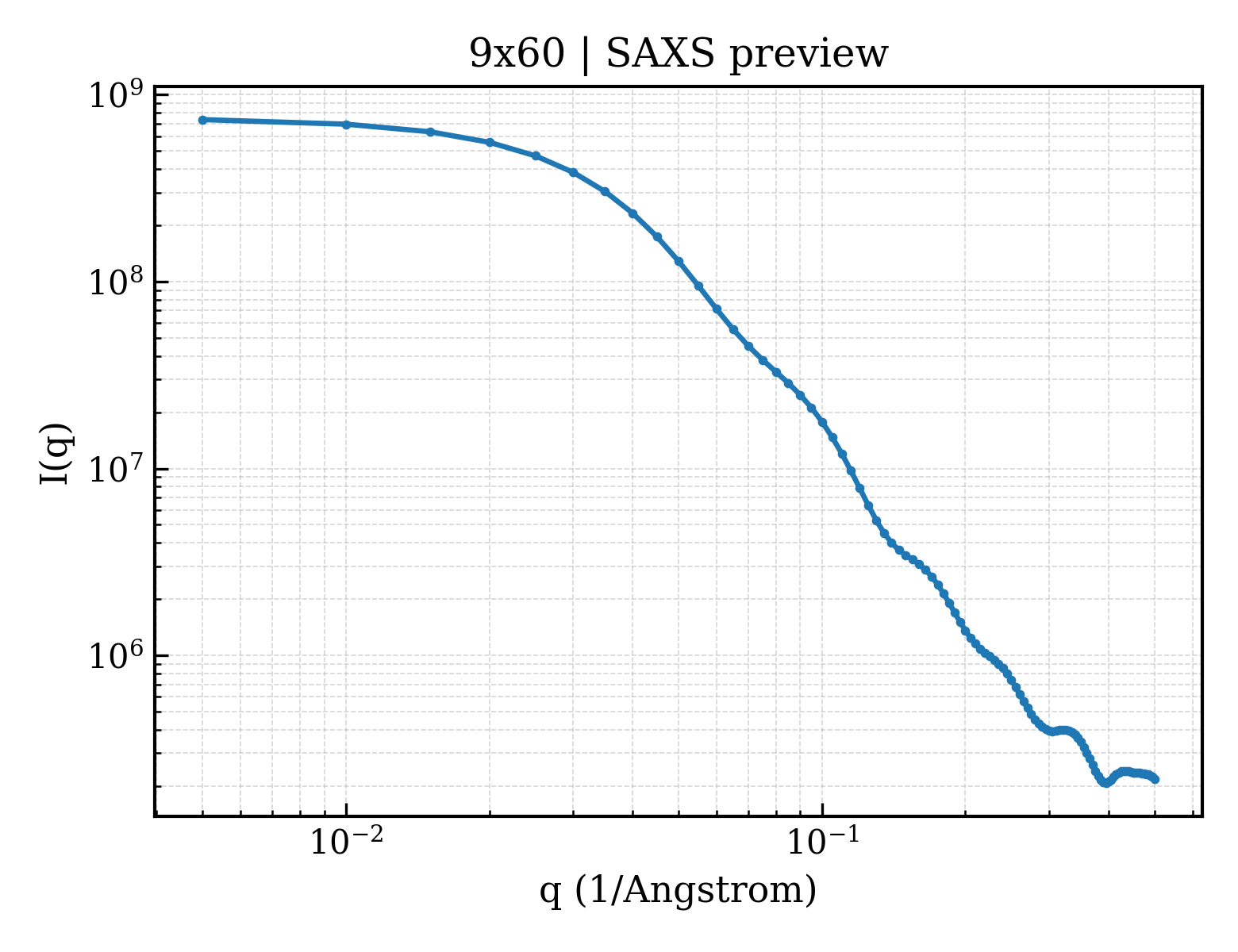

9x60__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

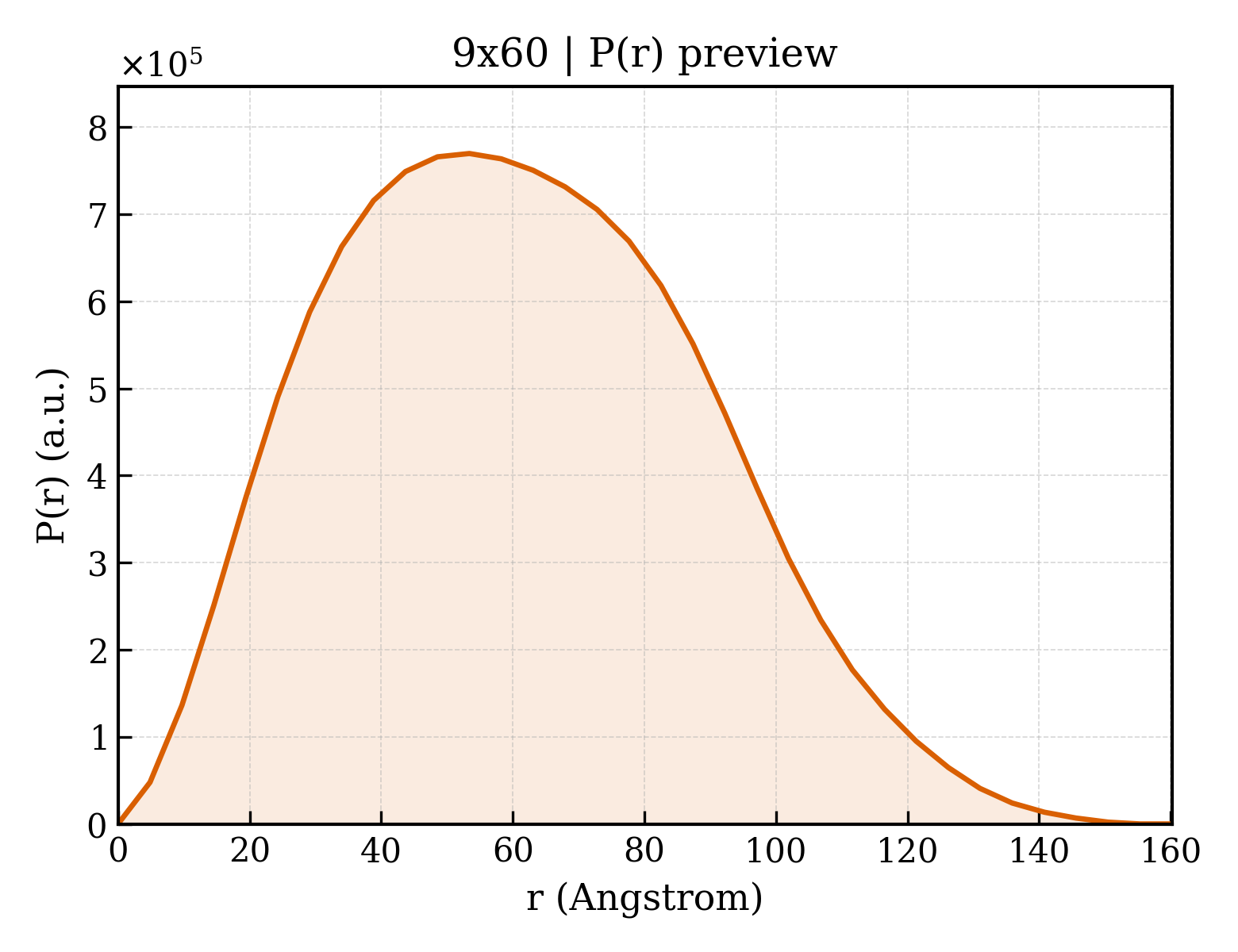

9x60__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.25 Å
Rg (electron density)	47.30 Å
Total Rg	47.36 Å
Atom count	15618
Residues	2004
Excluded volume	277240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9x60__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin HA1 chain
Molecular weight formula_weight	39258.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	15618

MKAIIVLLMVVTSNADRICTGITSSNSPHVVKTATQGEVNVTGVIPLTTTPTKSYFANLKGTRTRGKLCPDCLNCTDLDVALGRPMCVGTTPSAKASILHEVRPVTSGCFPIMHDRTKIRQLPNLLRGYENIRLSTQNVIDAEKAPGGPYRLGTSGSCPNATSKIGFFATMAWAVPKDNYKNATNPLTVEVPYICTEGEDQITVWGFHSDNKNQMKSLYGDSNPQKFTSSANGVTTHYVSQIGDFPDQTEDGGLPQSGRIVVDYMMQKPGKTGTIVYQRGVLLPQKVWCASGRSKVIKGSLPLIGEADCLHEKYGGLNKSKPYYTGEHAKAIGNCPIWVKTPLKLANGTKYRPPAKLLKER

Source Source

Source organism organism	Influenza B virus (B/Hubei-Wujiagang/158/2009)
NCBI taxonomy ID ncbi_taxonomy_id	1089604
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Hemagglutinin HA2 chain
Molecular weight formula_weight	25321.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q,R

GFFGAIAGFLEGGWEGMIAGWHGYTSHGAHGVAVAADLKSTQEAINKITKNLNSLSELEVKNLQRLSGAMDELHNEILELDEKVDDLRADTISSQIELAVLLSNEGIINSEDEHLLALERKLKKMLGPSAVDIGNGCFETKHKCNQTCLDRIAAGTFNAGEFSLPTFDSLNITAASLNDDGLDNHTDIRSLVPRGSPGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHH

Source Source

Source organism organism	Influenza B virus (B/Hubei-Wujiagang/158/2009)
NCBI taxonomy ID ncbi_taxonomy_id	1089604
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	FV2DP1-1B heavly chain
Molecular weight formula_weight	51731.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,D,F

MGWSCIILFLVATATGVHSEVQLVESGGGVVRPGGPLTLSCVASGFTLEDYGMSWVRQVPGKGLEWVSSITWTGATTAYADSVKGRFTISRANVKNSLYLEMNRLTADDTALYYCAREASADGAMDLYIYNGLDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPPCPAPELLGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSRDELTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	FV2DP1-1B light chain
Molecular weight formula_weight	25436.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,E,G

MGWSCIILFLVATATGVHSDIQMTQSPSFRSASIGDRVTITCRASQDISRYLAWYQQKPGKAPKLLINFASTLQSGVPSRFSGSGSGTEFTLTVSSLQPEDFATYYCQHLRNDPFFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	12

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.090 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.09 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	176835
