9x7g

Crystal structure of PDCoV 3CL protease (3CLpro) in complex with compound 3

Method: X-RAY DIFFRACTION D_max: 135.8 Å Quality: EXCELLENT

SAXS Profile

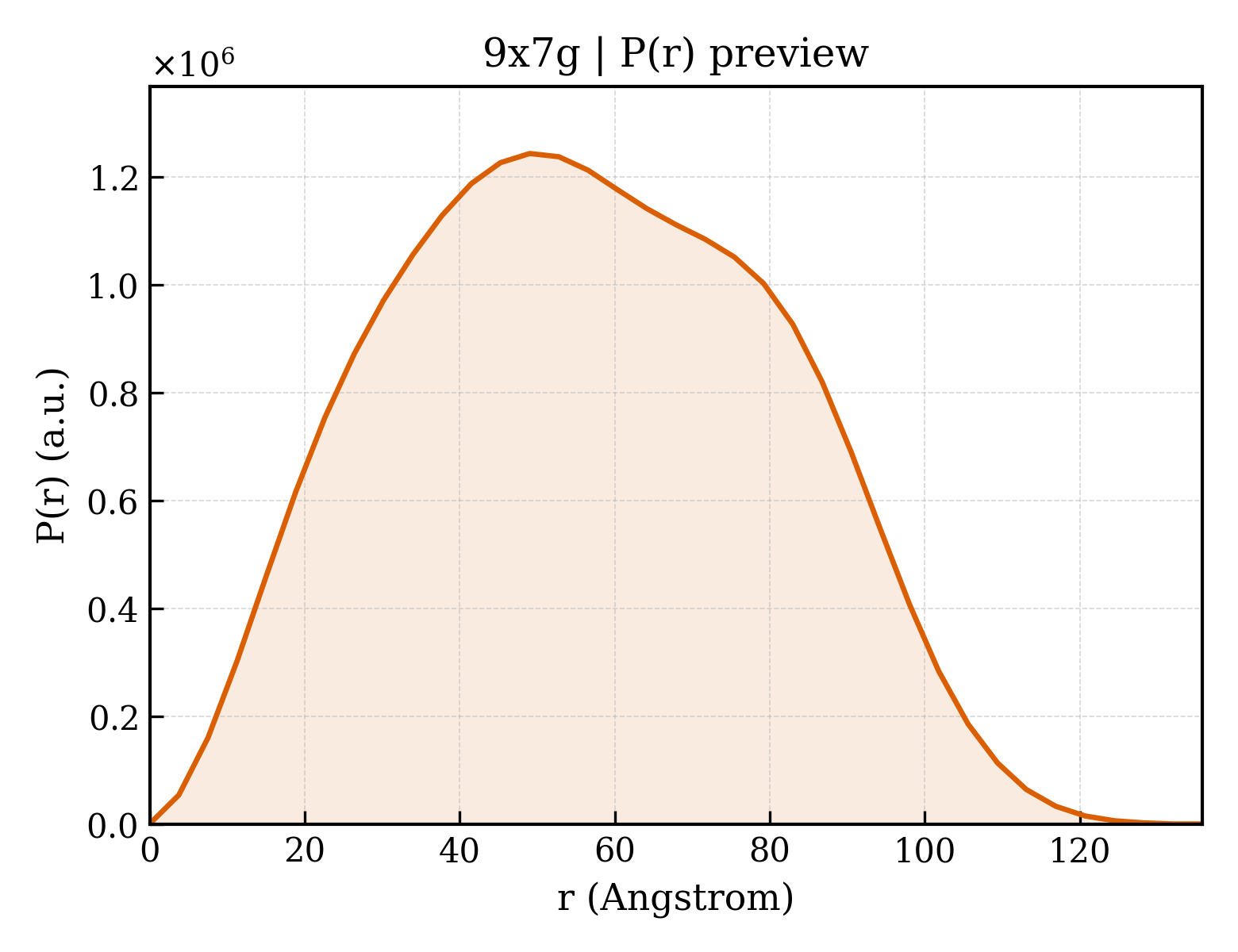

P(r) Distribution

▼

1. Structure Basics

entry_id	9x7g
deposition_date	2025-10-16
title	Crystal structure of PDCoV 3CL protease (3CLpro) in complex with compound 3
keywords	Protease, Mpro, Viral protein-inhibitor complex, VIRAL PROTEIN; VIRAL PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	43.45 Å
rg_electron	43.05 Å
i0	1097280000.00
molecular_weight	182750.0 kDa
excluded_volume	177110 Å³
envelope_volume	327120 Å³
shell_volume	63169 Å³
envelope_diameter	137.1 Å
shell_rg	48.85 Å
envelope_rg	42.08 Å
shape_rg	43.04 Å
total_rg	43.27 Å
total_atoms	13799
n_residues	1744
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	135.8 Å
rg_real	43.31 Å
rg_real_error	0.91 Å
i0_real	1.0970e+09
i0_real_error	1.8650e+07
rg_reciprocal	43.45 Å
i0_reciprocal	1097000000.0000
total_estimate	0.9028
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	49.0 Å
skewness	0.096
kurtosis	-0.755
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	32490000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.868

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	3C-like protease
formula_weight	33972.6 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	13883

AGIKILLHPSGVVERCMVSVVYNGSALNGIWLKNVVYCPRHVIGKFRGDQWTHMVSIADCRDFIVKCPIQGIQLNVQSVKMVGALLQLTVHTNNTATPDYKFERLQPGSSMTIACAYDGIVRHVYHVVLQLNNLIYASFLNGACGSVGYTLKGKTLYLHYMHHIEFNNKTHSGTDLEGNFYGPYVDEEVIQQQTAFQYYTDNVVAQLYAHLLTVDARPKWLAQSQISIEDFNSWAANNSFANFPCEQTNMSYIMGLSQTARVPVERILNTIIQLTTNRDGACIMGSYDFECDWTPEMVYNQ

Source

organism	Porcine deltacoronavirus
ncbi_taxonomy_id	1586324
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	;(1~{R},2~{S},5~{S})-~{N}-[(2~{S})-1-azanylidene-3-[(3~{S})-2-oxidanylidenepyrrolidin-3-yl]propan-2-yl]-3-[(2~{S})-3,3-dimethyl-2-(methylsulfonylamino)butanoyl]-6,6-dimethyl-3-azabicyclo[3.1.0]hexane-2-carboxamide ;
formula_weight	483.6 kDa
src_method	syn
entity_count	6

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	84

▶

6. Citations (1)

▶

length_a	122.100 Å
length_b	122.100 Å
length_c	291.550 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	36

space_group	P 61
int_tables_number	169
crystal_system	—

resolution	2.570 Å
resolution_low	52.870 Å
r_factor	0.2113
r_work	0.2089
r_free	0.2577

fit	/app/data/saxs_computation/x7/9x7g/9x7g.fit
pddf	/app/data/pr_computation/x7/9x7g/9x7g.pr.out
profile	/app/data/saxs_computation/x7/9x7g/9x7g.dat
