9xuj
Crystal structure of MPXV poxin
SAXS Profile

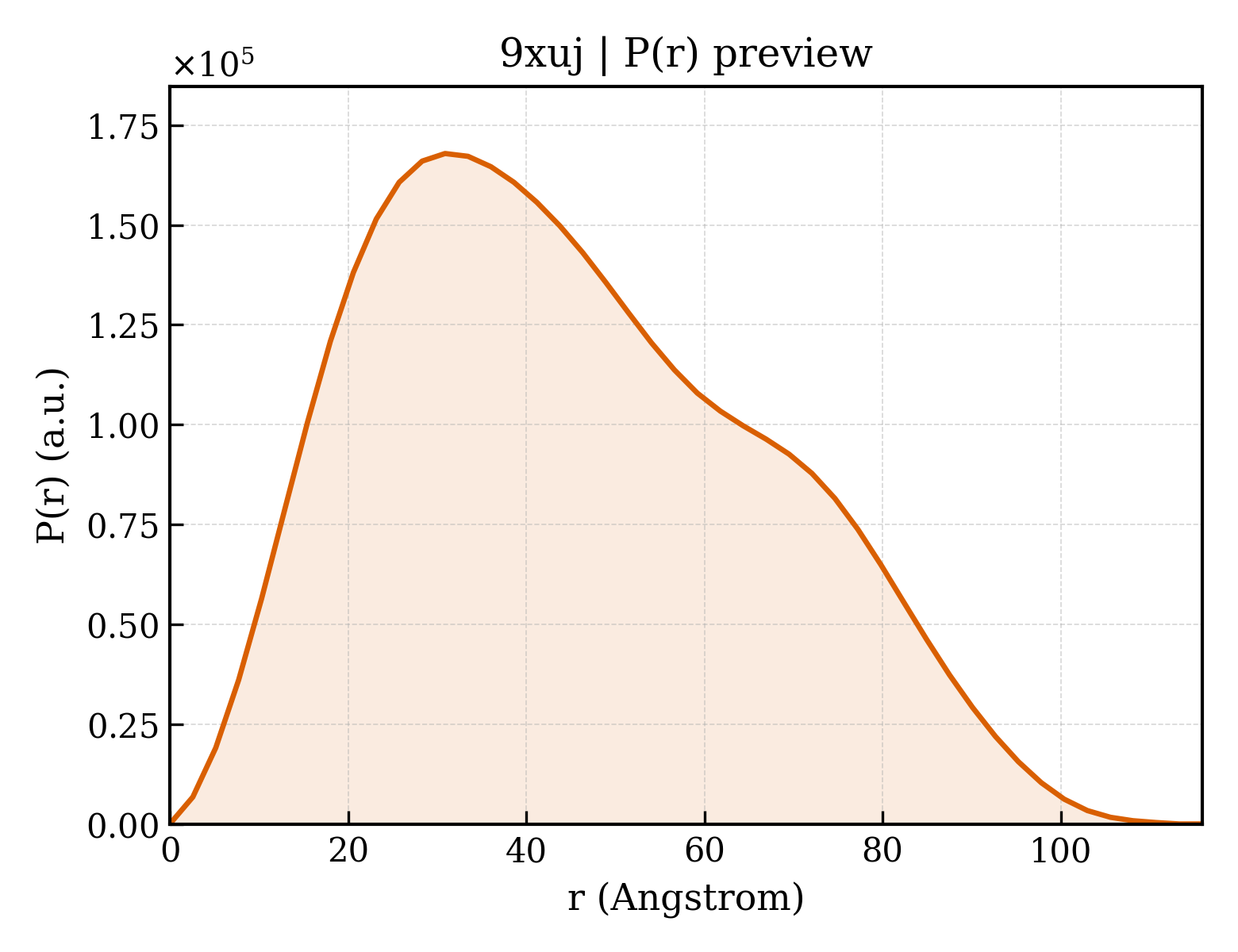

P(r) Distribution
1. Structure Basics
| entry_id | 9xuj |
| deposition_date | 2025-11-24 |
| last_revision | 2026-05-27 |
| title | Crystal structure of MPXV poxin |
| keywords | ;Enzyme, 2'3'-cGAMP, degradation, VIRAL PROTEIN ;; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.07 Å |
| rg_electron | 34.81 Å |
| i0 | 118993000.00 |
| molecular_weight | 88197.0 kDa |
| excluded_volume | 110630 ų |
| envelope_volume | 146810 ų |
| shell_volume | 36021 ų |
| envelope_diameter | 116.1 Å |
| shell_rg | 40.30 Å |
| envelope_rg | 34.36 Å |
| shape_rg | 34.82 Å |
| total_rg | 35.22 Å |
| total_atoms | 6208 |
| n_residues | 780 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 115.8 Å |
| rg_real | 35.22 Å |
| rg_real_error | 1.17 Å |
| i0_real | 1.1900e+08 |
| i0_real_error | 1.9290e+06 |
| rg_reciprocal | 35.13 Å |
| i0_reciprocal | 119000000.0000 |
| total_estimate | 0.8003 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 30.9 Å |
| skewness | 0.366 |
| kurtosis | -0.665 |
| angular_range | — – 0.2250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 20730000.0000 |
| n_real_points | 46 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.846; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.000 |
