SAXSdb — 9y0v

▼

1. Structure Basics

entry_id	9y0v
deposition_date	2025-08-29
title	Crystal Structure of human MAIT A-F7 TCR-MR1*04 complex
keywords	MAIT TCR, MR1, metabolite presentation, immune system; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	51.95 Å
rg_electron	52.32 Å
i0	469998000.00
molecular_weight	178080.0 kDa
excluded_volume	221840 Å³
envelope_volume	324230 Å³
shell_volume	56007 Å³
envelope_diameter	185.6 Å
shell_rg	48.76 Å
envelope_rg	52.21 Å
shape_rg	52.30 Å
total_rg	52.24 Å
total_atoms	12581
n_residues	1612
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

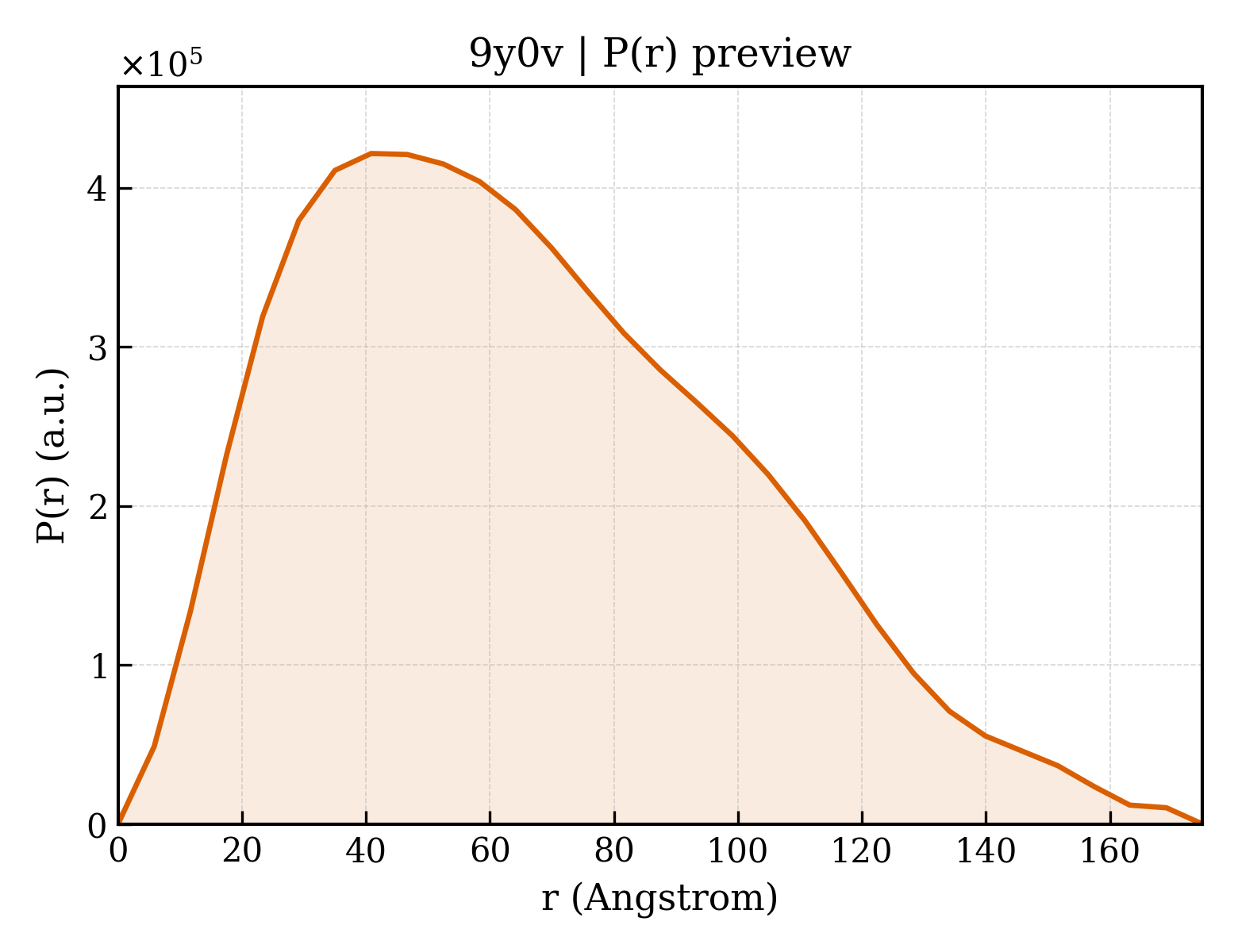

3. P(r) Analysis (GNOM)

dmax	174.9 Å
rg_real	52.36 Å
rg_real_error	2.16 Å
i0_real	4.7000e+08
i0_real_error	9.2510e+06
rg_reciprocal	51.60 Å
i0_reciprocal	469500000.0000
total_estimate	0.8175
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	40.8 Å
skewness	0.496
kurtosis	-0.390
angular_range	— – 0.1500 Å⁻¹
current_alpha	0.0000
highest_alpha	24150000.0000
n_real_points	31
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.272

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Major histocompatibility complex class I-related protein 1
formula_weight	31711.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	12912

MRTHSLRYFHLGVSDPIRGVPEFISVGYVDSHPITTYDSVTRQKEPRAPWMAENLAPDHWERYTQLLRGWQQMFKVELKRLQRHYNHSGSHTYQRMIGCELLEDGSTTGFLQYAYDGQDFLIFNKDTLSWLAVDNVAHTIKQAWEANQHELLYQKNWLEEECIAWLKRFLEYGKDTLQRTEPPLVRVNRKETFPGVTALFCKAHGFYPPEIYMTWMKNGEEIVQEIDYGDILPSGDGTYQAWASIELDPQSSNLYSCHVEHSGVHMVLQVP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	Beta-2-microglobulin
formula_weight	11879.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,F

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 polymer

description	TCR alpha chain
formula_weight	22781.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,G

MGQNIDQPTEMTATEGAIVQINCTYQTSGFNGLFWYQQHAGEAPTFLSYNVLDGLEEKGRFSSFLSRSKGYSYLLLKELQMKDSASYLCAVKDSNYQLIWGAGTKLIIKPDIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 polymer

description	TCR beta chain
formula_weight	27677.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,H

MNAGVTQTPKFQVLKTGQSMTLQCAQDMNHNSMYWYRQDPGMGLRLIYYSASEGTTDKGEVPNGYNVSRLNKREFSLRLESAAPSQTSVYFCASSVWTGEGSGELFFGEGSRLTVLEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 5 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	3

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	243

▶

6. Citations (1)

▶

length_a	62.389 Å
length_b	140.991 Å
length_c	114.942 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	monoclinic

resolution	3.000 Å
resolution_low	43.500 Å
r_factor	0.1971
r_work	0.1948
r_free	0.2436

fit	/app/data/saxs_computation/y0/9y0v/9y0v.fit
pddf	/app/data/pr_computation/y0/9y0v/9y0v.pr.out
profile	/app/data/saxs_computation/y0/9y0v/9y0v.dat
