9y48

Sro7 bound to His-Exo84 (1-326) on a Nickel-NTA lipid monolayer

Method: ELECTRON MICROSCOPY D_max: 109.5 Å Quality: GOOD

SAXS Profile

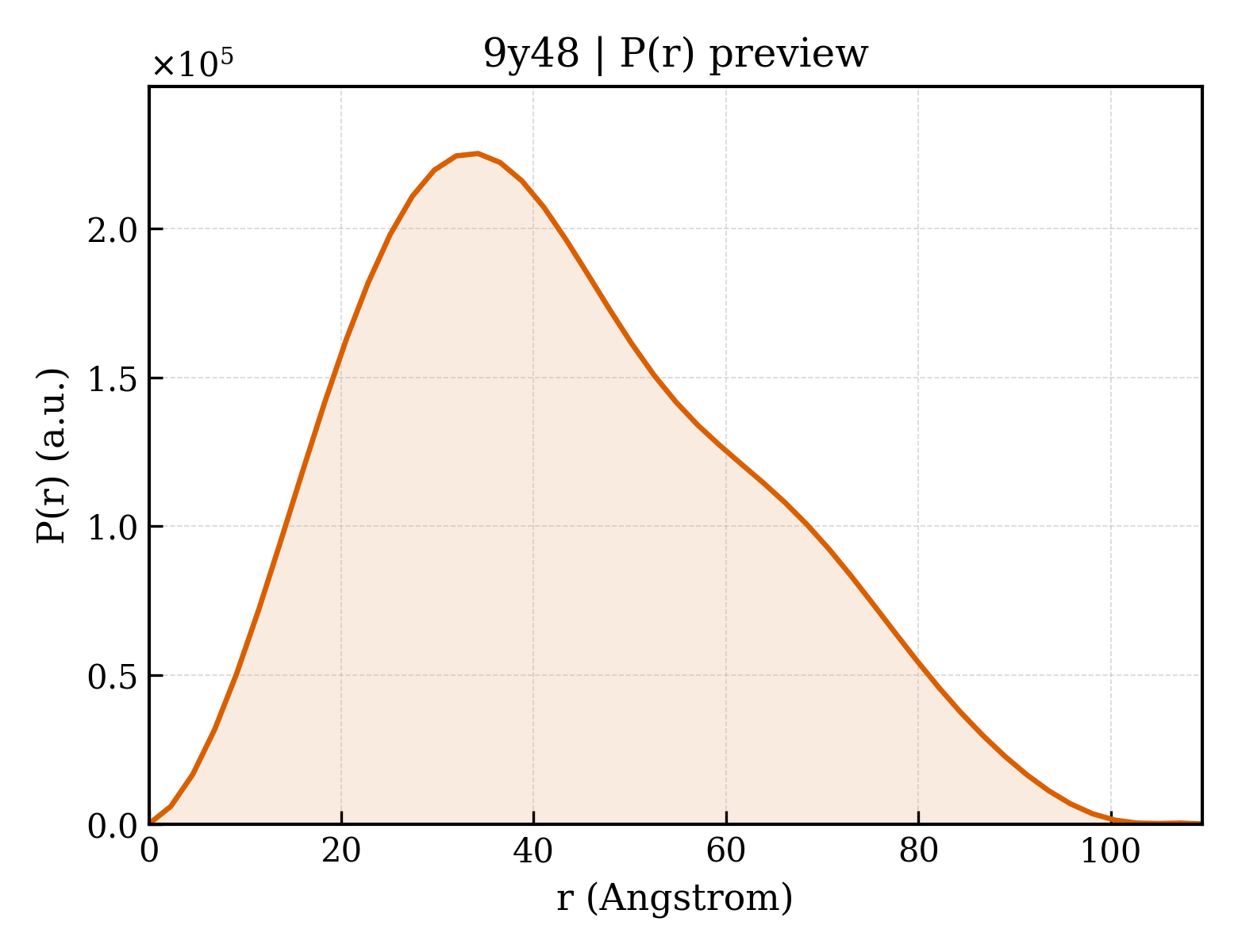

P(r) Distribution

▼

1. Structure Basics

entry_id	9y48
deposition_date	2025-09-02
title	Sro7 bound to His-Exo84 (1-326) on a Nickel-NTA lipid monolayer
keywords	Exocytosis, membrane trafficking, vesicle tethering; EXOCYTOSIS
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.15 Å
rg_electron	32.62 Å
i0	139274000.00
molecular_weight	97027.0 kDa
excluded_volume	122690 Å³
envelope_volume	156370 Å³
shell_volume	40486 Å³
envelope_diameter	112.7 Å
shell_rg	39.01 Å
envelope_rg	32.51 Å
shape_rg	32.61 Å
total_rg	33.18 Å
total_atoms	6831
n_residues	875
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	109.5 Å
rg_real	33.27 Å
rg_real_error	0.65 Å
i0_real	1.3930e+08
i0_real_error	2.0830e+06
rg_reciprocal	33.22 Å
i0_reciprocal	139300000.0000
total_estimate	0.8763
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.2 Å
skewness	0.400
kurtosis	-0.518
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0003
highest_alpha	34760000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.933

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Lethal(2) giant larvae protein homolog SRO7
formula_weight	114639.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6831

MFGSKRLKNVKEAFKSLKGQNSETPIENSKASFKSKNSKTSTISKDAKSSSSLKIPISSNNKNKIFSLAETNKYGMSSKPIAAAFDFTQNLLAIATVTGEVHIYGQQQVEVVIKLEDRSAIKEMRFVKGIYLVVINAKDTVYVLSLYSQKVLTTVFVPGKITSIDTDASLDWMLIGLQNGSMIVYDIDRDQLSSFKLDNLQKSSFFPAARLSPIVSIQWNPRDIGTVLISYEYVTLTYSLVENEIKQSFIYELPPFAPGGDFSEKTNEKRTPKVIQSLYHPNSLHIITIHEDNSLVFWDANSGHMIMARTVFETEINVPQPDYIRDSSTNAAKISKVYWMCENNPEYTSLLISHKSISRGDNQSLTMIDLGYTPRYSITSYEGMKNYYANPKQMKIFPLPTNVPIVNILPIPRQSPYFAGCHNPGLILLILGNGEIETMLYPSGIFTDKASLFPQNLSWLRPLATTSMAASVPNKLWLGALSAAQNKDYLLKGGVRTKRQKLPAEYGTAFITGHSNGSVRIYDASHGDIQDNASFEVNLSRTLNKAKELAVDKISFAAETLELAVSIETGDVVLFKYEVNQFYSVENRPESGDLEMNFRRFSLNNTNGVLVDVRDRAPTGVRQGFMPSTAVHANKGKTSAINNSNIGFVGIAYAAGSLMLIDRRGPAIIYMENIREISGAQSACVTCIEFVIMEYGDDGYSSILMVCGTDMGEVITYKILPASGGKFDVQLMDITNVTSKGPIHKIDAFSKETKSSCLATIPKMQNLSKGLCIPGIVLITGFDDIRLITLGKSKSTHKGFKYPLAATGLSYISTVEKNNDRKNLTVIITLEINGHLRVFTIPDFKEQMSEHIPFPIAAKYITESSVLRNGDIAIRVSEFQASLFSTVKEQDTLAPVSDTLYINGIRIPYRPQVNSLQWARGTVYCTPAQLNELLGGVNRPASKYKESIIAEGSFSERSSDDNNANHPEHQYTKPTRKGRNSSYGVLRNVSRAVETRWDAVEDRFNDYATAMGETMNEAVEQTGKDVMKGALGF

Source

organism	Saccharomyces cerevisiae
common_name	;brewer's yeast ;
ncbi_taxonomy_id	4932
host_organism	Saccharomyces cerevisiae

Entity 2 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.100 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.10 Å
resolution_method	—
num_particles	524737

fit	/app/data/saxs_computation/y4/9y48/9y48.fit
pddf	/app/data/pr_computation/y4/9y48/9y48.pr.out
profile	/app/data/saxs_computation/y4/9y48/9y48.dat
