9y4h

Structure of guinea pig ribosome with P/E-tRNA and mRNA

Method: ELECTRON MICROSCOPY Dmax: 244.2 Å Quality: EXCELLENT

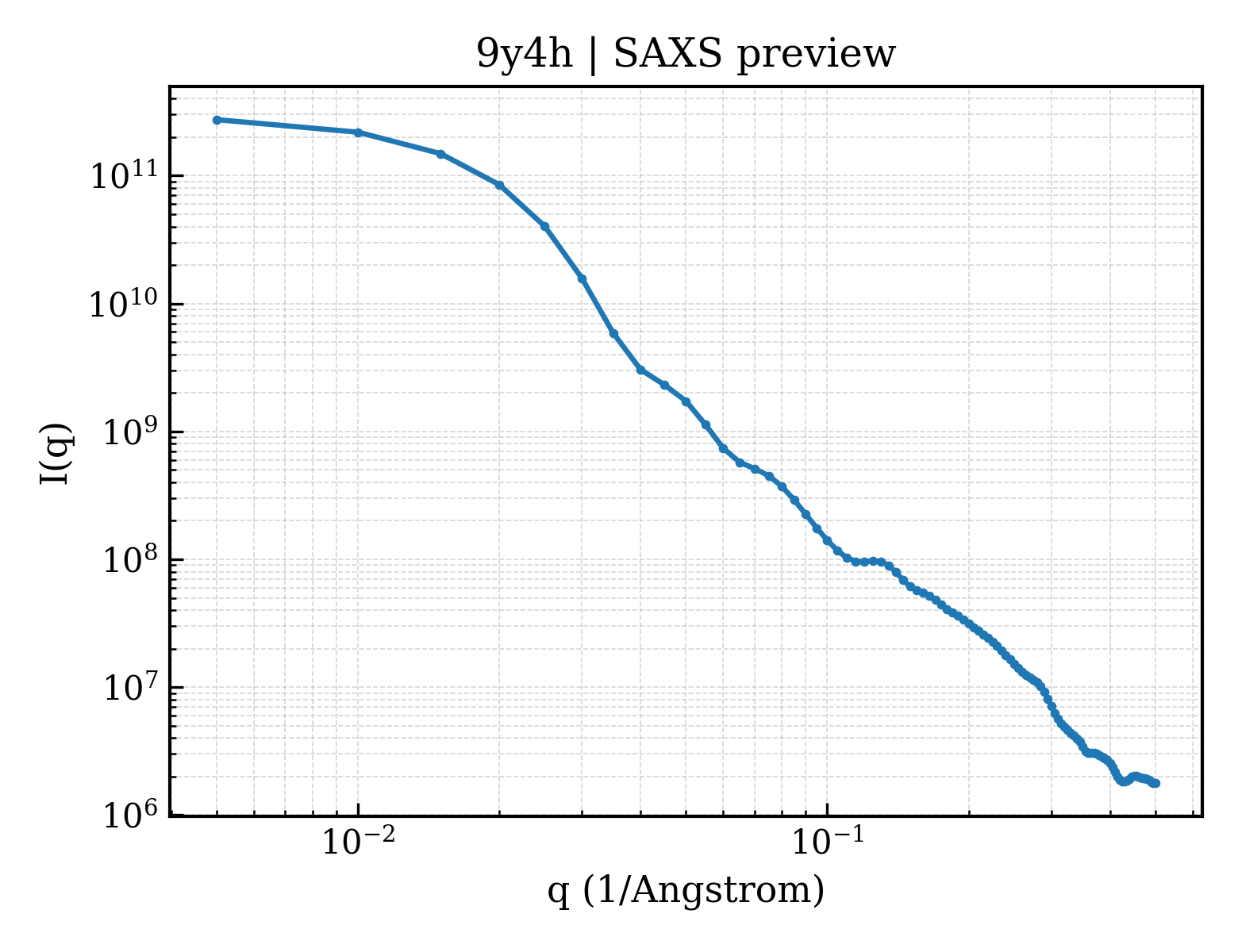

SAXS Profile

SAXS profile for 9y4h

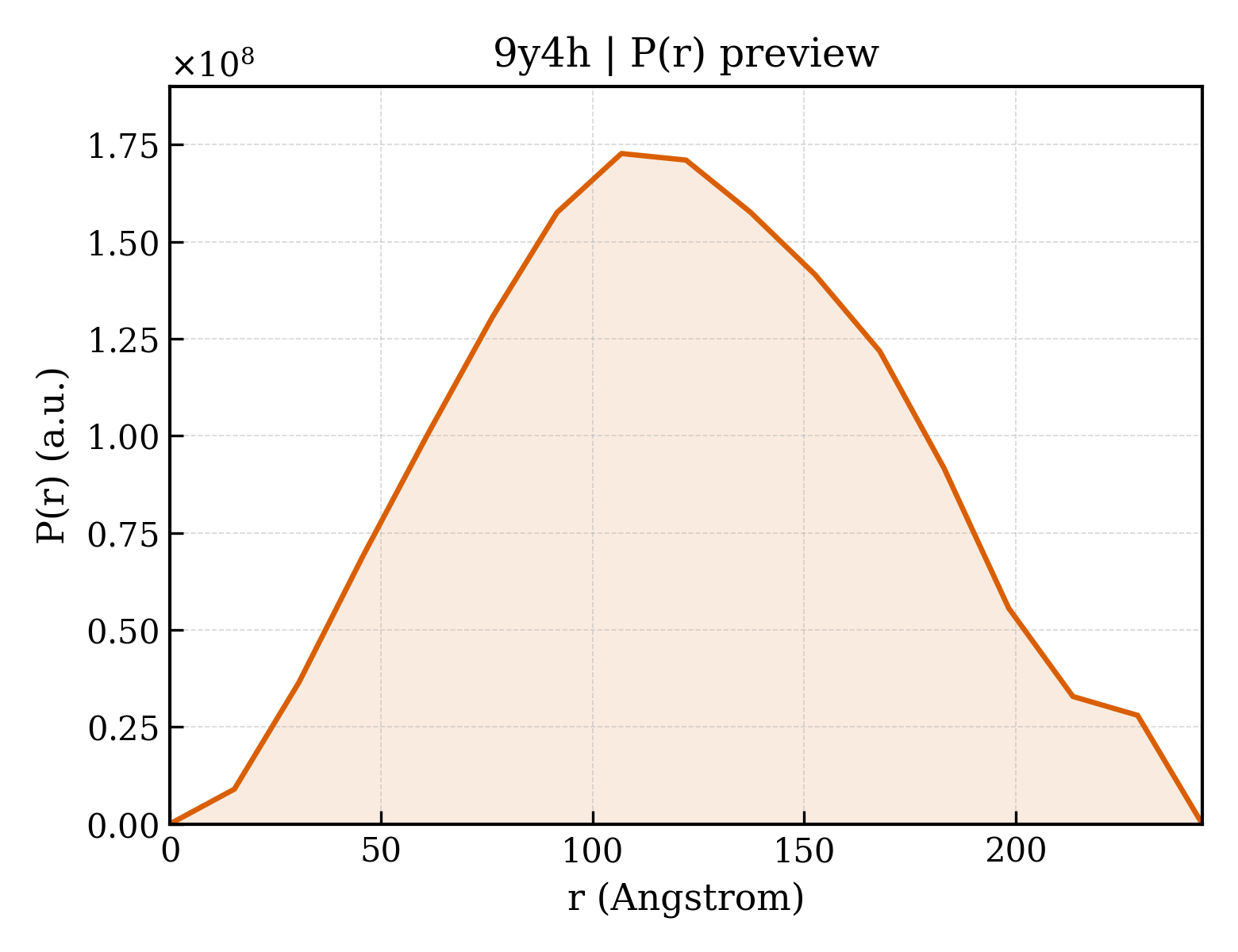

P(r) Distribution

P(r) distribution for 9y4h

1. Structure Basics

entry_id9y4h
deposition_date2025-09-03
titleStructure of guinea pig ribosome with P/E-tRNA and mRNA
keywordsGuinea pig ribosome, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier94.94
rg_electron95.78
i0295094000000.00
molecular_weight3178100.0 kDa
excluded_volume3374900 ų
envelope_volume5768500 ų
shell_volume455330 ų
envelope_diameter324.7
shell_rg112.30
envelope_rg94.93
shape_rg95.80
total_rg95.78
total_atoms371521
n_residues16945
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax244.2
rg_real92.17
rg_real_error0.35
i0_real2.8300e+11
i0_real_error5.1630e+09
rg_reciprocal96.63
i0_reciprocal296700000000.0000
total_estimate0.9106
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary106.8
skewness0.112
kurtosis-0.602
angular_range— – 0.0800 −1
current_alpha0.7293
highest_alpha16730000000.0000
n_real_points17
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.999; Stabil: 0.949; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (79)

6. Citations (1)

7. Files & Curves (10)
