SAXSdb — 9y4s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA integrity scanning protein DisA

Mycobacterium tuberculosis H37Rv

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	CHLORIDE ION × 14 TRIETHYLENE GLYCOL × 1 TETRAETHYLENE GLYCOL × 1 ;(2R,3R,3aS,5R,7aR,9R,10R,10aS,12R,14aR)-2,9-bis(6-amino-9H-purin-9-yl)octahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8 ]tetraoxadiphosphacyclododecine-3,5,10,12-tetrol 5,12-dioxide ; × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DISA_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–360； UniProt 5–356 Author chain B； PDBConstruct 9–360； UniProt 5–356 Author chain C； PDBConstruct 9–360； UniProt 5–356 Author chain D； PDBConstruct 9–360； UniProt 5–356 Author chain E； PDBConstruct 9–360； UniProt 5–356 Author chain F； PDBConstruct 9–360； UniProt 5–356 Author chain G； PDBConstruct 9–360； UniProt 5–356 Author chain H； PDBConstruct 9–360； UniProt 5–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9y4s
Deposition date deposition_date	2025-09-03
Last revision last_revision	2025-09-17
Structure title title	Crystal structure of DNA integrity scanning protein (DisA) from Mycobacterium tuberculosis in complex with cyclic di-AMP
Keywords keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, DisA; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9y4s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9y4s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

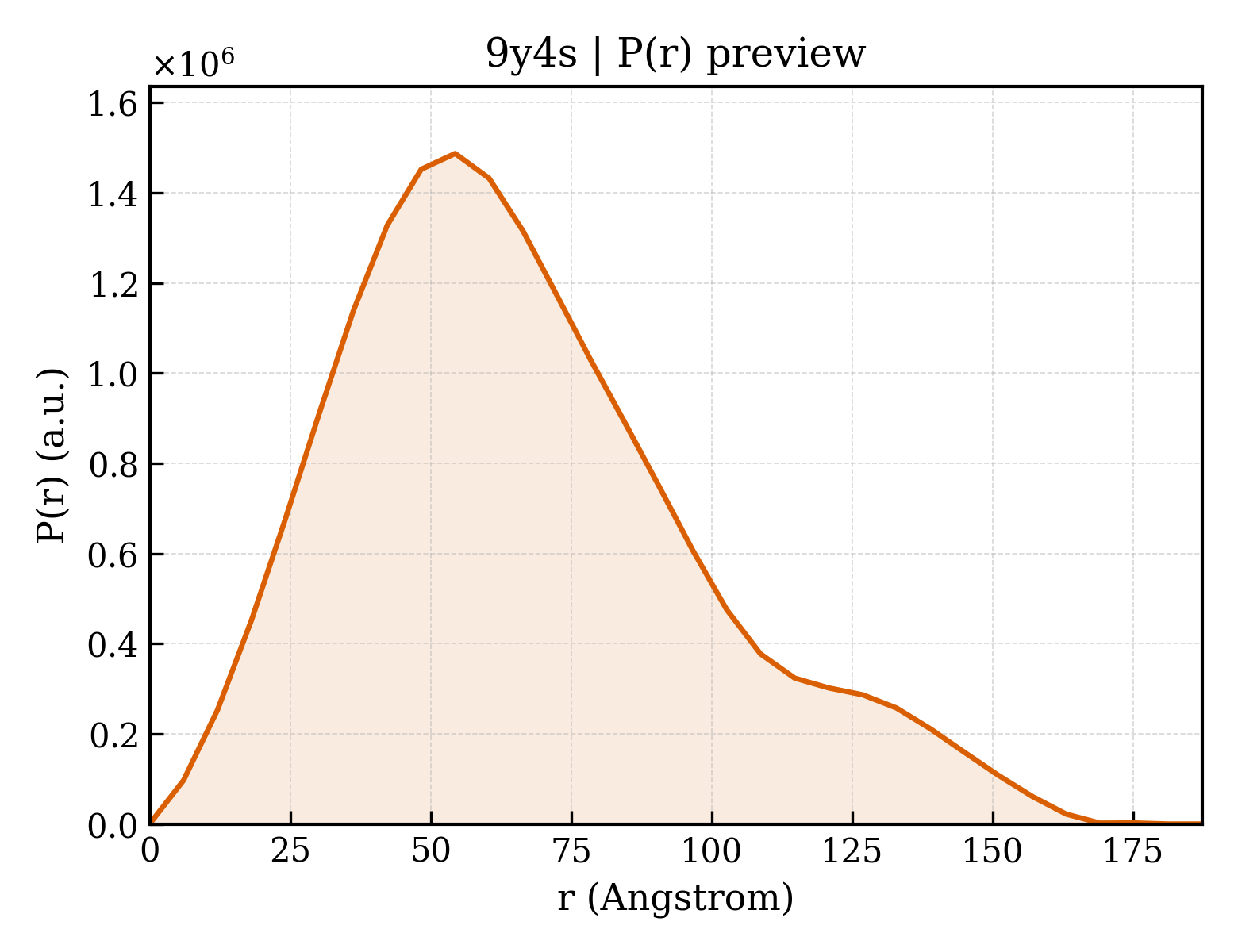

9y4s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.45 Å
Rg (electron density)	51.99 Å
Total Rg	51.61 Å
Atom count	20342
Residues	2678
Excluded volume	358180 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9y4s__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA integrity scanning protein DisA
Molecular weight formula_weight	39426.5 kDa
EC 编号 ec_number	2.7.7.85
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	20342

MAHHHHHHTRPTLREAVARLAPGTGLRDGLERILRGRTGALIVLGHDENVEAICDGGFSLDVRYAATRLRELCKMDGAVVLSTDGSRIVRANVQLVPDPSIPTDESGTRHRSAERAAIQTGYPVISVSHSMNIVTVYVRGERHVLTDSATILSRANQAIATLERYKTRLDEVSRQLSRAEIEDFVTLRDVMTVVQRLELVRRIGLVIDYDVVELGTDGRQLRLQLDELLGGNDTARELIVRDYHANPEPPSTGQINATLDELDALSDGDLLDFTALAKVFGYPTTTEAQDSTLSPRGYRAMAGIPRLQFAHADLLVRAFGTLQGLLAASAGDLQSVDGIGAMWARHVREGLSQLAESTIS

Source Source

Source organism organism	Mycobacterium tuberculosis H37Rv
NCBI taxonomy ID ncbi_taxonomy_id	83332
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 3 Entity 3 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	;(2R,3R,3aS,5R,7aR,9R,10R,10aS,12R,14aR)-2,9-bis(6-amino-9H-purin-9-yl)octahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8 ]tetraoxadiphosphacyclododecine-3,5,10,12-tetrol 5,12-dioxide ;
Molecular weight formula_weight	658.4 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	277.526 Å
Unit-cell length b length_b	74.263 Å
Unit-cell length c length_c	199.413 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	126.05 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.890 Å
Low-resolution limit resolution_low	49.220 Å
R factor r_factor	0.2053
R_work r_work	0.2028
R_free r_free	0.2522

Crystal structure of DNA integrity scanning protein (DisA) from Mycobacterium tuberculosis in complex with cyclic di-AMP
