9y94

Homomeric Glycine Receptor alpha2 with PTX in an Open State

Method: ELECTRON MICROSCOPY D_max: 128.0 Å Quality: GOOD

SAXS Profile

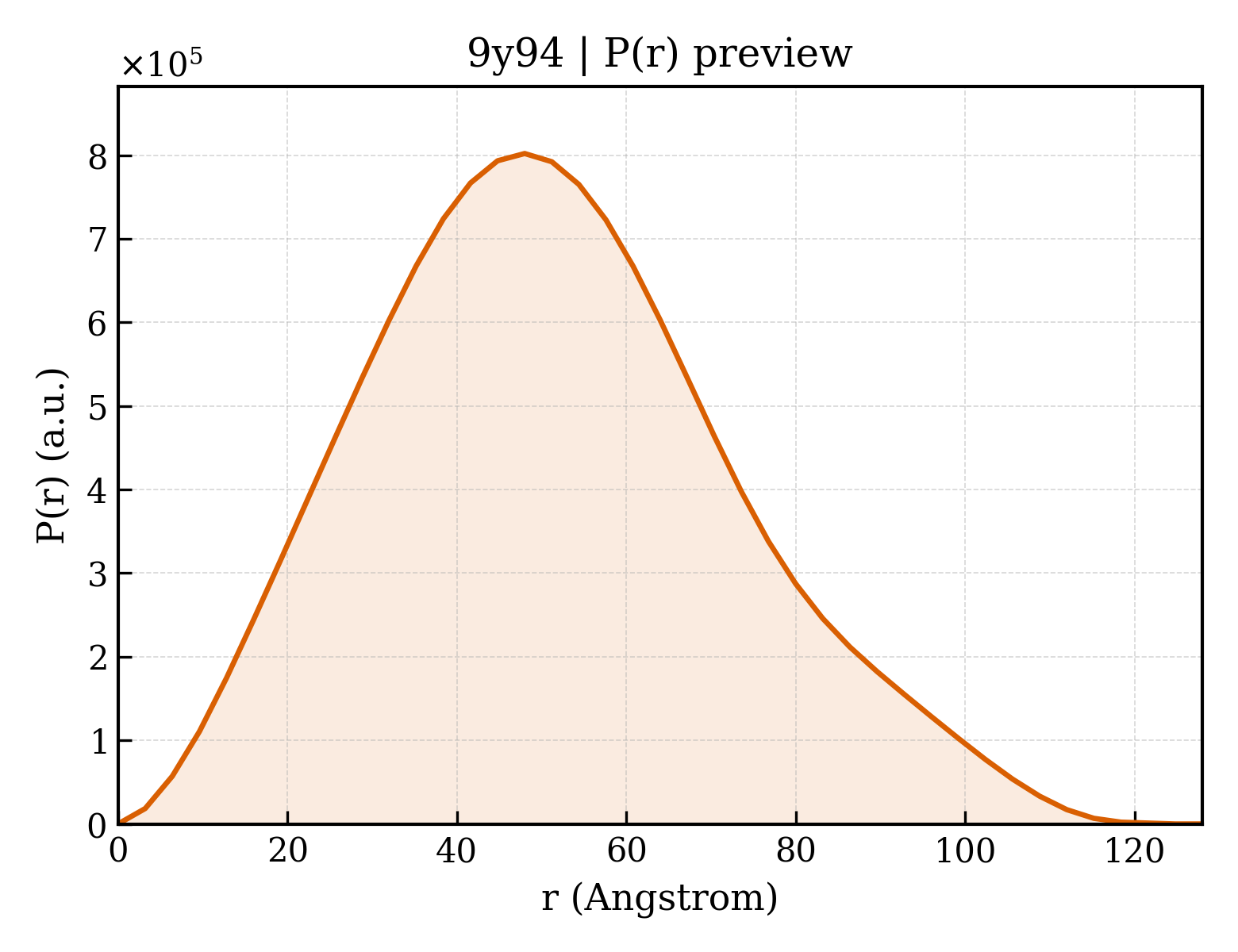

P(r) Distribution

▼

1. Structure Basics

entry_id	9y94
deposition_date	2025-09-13
title	Homomeric Glycine Receptor alpha2 with PTX in an Open State
keywords	homopentamer, ion channel, ligand gated ion channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.27 Å
rg_electron	38.69 Å
i0	540747000.00
molecular_weight	199070.0 kDa
excluded_volume	252760 Å³
envelope_volume	331740 Å³
shell_volume	69879 Å³
envelope_diameter	130.8 Å
shell_rg	45.93 Å
envelope_rg	38.13 Å
shape_rg	38.72 Å
total_rg	39.03 Å
total_atoms	14018
n_residues	1713
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	128.0 Å
rg_real	39.15 Å
rg_real_error	1.20 Å
i0_real	5.4070e+08
i0_real_error	9.1810e+06
rg_reciprocal	39.23 Å
i0_reciprocal	540800000.0000
total_estimate	0.8754
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	48.0 Å
skewness	0.316
kurtosis	-0.283
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	77360000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.896

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Glycine receptor subunit alpha-2
formula_weight	53782.8 kDa
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E
atom_count	14018

MNRQLVNILTALFAFFLETNHFRTAFCKDHDSRSGKQPSQTLSPSDFLDKLMGRTSGYDARIRPNFKGPPVNVTCNIFINSFGSVTETTMDYRVNIFLRQQWNDSRLAYSEYPDDSLDLDPSMLDSIWKPDLFFANEKGANFHDVTTDNKLLRISKNGKVLYSIRLTLTLSCPMDLKNFPMDVQTCTMQLESFGYTMNDLIFEWLSDGPVQVAEGLTLPQFILKEEKELGYCTKHYNTGKFTCIEVKFHLERQMGYYLIQMYIPSLLIVILSWVSFWINMDAAPARVALGITTVLTMTTQSSGSRASLPKVSYVKAIDIWMAVCLLFVFAALLEYAAVNFVSRQHKEFLRLRRRQKRQNKEEDVTRESRFNFSGYGMGHCLQVKDGTAVKATPANPLPQPPKDGDAIKKKFVDRAKRIDTISRAAFPLAFLIFNIFYWITYKIIRHEDVHKKLVPRGSHHHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 2 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	10

Entity 3 non-polymer

description	GLYCINE
formula_weight	75.1 kDa
src_method	syn
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.600 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.60 Å
resolution_method	—
num_particles	29955

fit	/app/data/saxs_computation/y9/9y94/9y94.fit
pddf	/app/data/pr_computation/y9/9y94/9y94.pr.out
profile	/app/data/saxs_computation/y9/9y94/9y94.dat
