SAXSdb — 9yc2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin carboxyl-terminal hydrolase 49

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–103	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；281 K；0.2 M sodium chloride; 2 M ammonium sulphate; 0.1 M sodium cacodylate	Resolution 1.40 Å R-free 0.192

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	UBP49_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–105； UniProt 1–103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yc2
Deposition date deposition_date	2025-09-18
最后修订 last_revision	2025-10-29
Structure title title	Crystal structure of USP49 ZnF-UBP domain
Keywords keywords	USP49, deubiquitinase, DUB, protease, ubiquitin, histone, nucleosome, ubiquitin binding domain, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.47 Å
Radius of gyration Rg (electron density) rg_electron	13.13 Å
Forward intensity I(0) i0	3660050.00
Molecular weight molecular_weight	12470.0 kDa
Excluded volume excluded_volume	15178 Å³
Envelope volume envelope_volume	17377 Å³
Hydration-shell volume shell_volume	11288 Å³
Envelope diameter envelope_diameter	44.0 Å
Shell Rg shell_rg	18.87 Å
Envelope Rg envelope_rg	13.42 Å
Shape Rg shape_rg	13.10 Å
Total Rg total_rg	14.42 Å
Total atoms total_atoms	1677
Residues n_residues	105
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

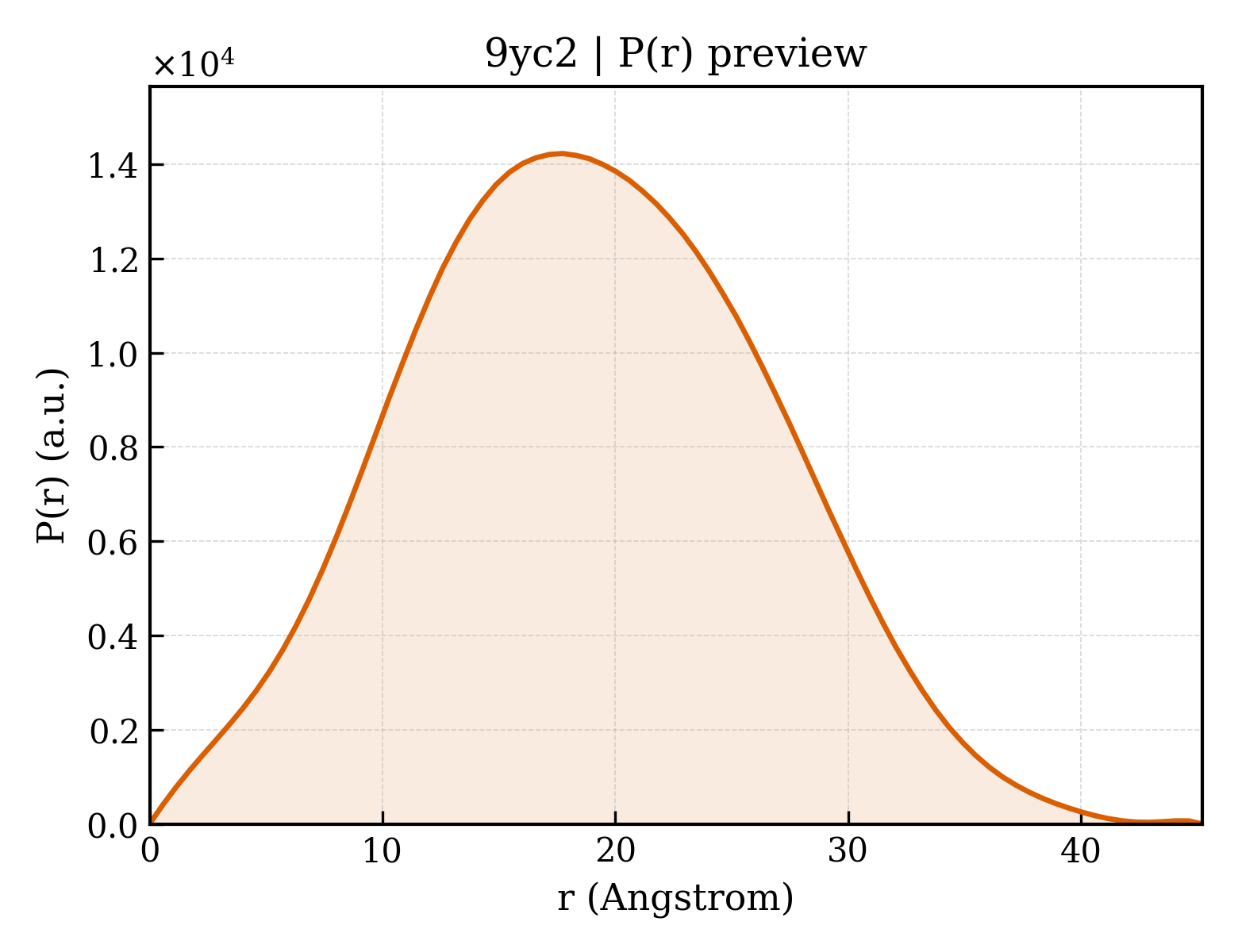

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.2 Å
Rg (real space) rg_real	14.38 Å
Rg uncertainty (real space) rg_real_error	0.22 Å
I(0) (real space) i0_real	3.6600e+06
I(0) uncertainty (real space) i0_real_error	3.7570e+04
Rg (reciprocal space) rg_reciprocal	14.39 Å
I(0) (reciprocal space) i0_reciprocal	3660000.0000
Solution quality estimate total_estimate	0.8994
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.7 Å
Skewness Skewness skewness	0.117
Kurtosis Kurtosis kurtosis	-0.415
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	501400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ubiquitin carboxyl-terminal hydrolase 49
Molecular weight formula_weight	12068.0 kDa
EC 编号 ec_number	3.4.19.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1949

GPMDRCKHVGRLRLAQDHSILNPQKWCCLECATTESVWACLKCSHVACGRYIEDHALKHFEETGHPLAMEVRDLYVFCYLCKDYVLNDNPEGDLKLLRSSLLAVR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	153

▶

8. Citations (1)

▶

Unit-cell length a length_a	35.739 Å
Unit-cell length b length_b	47.220 Å
Unit-cell length c length_c	55.247 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	35.900 Å
R factor r_factor	0.1551
R_work r_work	0.1532
R_free r_free	0.1917

fit	/app/data/saxs_computation/yc/9yc2/9yc2.fit
pddf	/app/data/pr_computation/yc/9yc2/9yc2.pr.out
profile	/app/data/saxs_computation/yc/9yc2/9yc2.dat
