9yc6

Mutant human uPAR bound to the Fab fragment of the targeted cancer therapeutic antibody FL1

Method: ELECTRON MICROSCOPY D_max: 114.2 Å Quality: GOOD

SAXS Profile

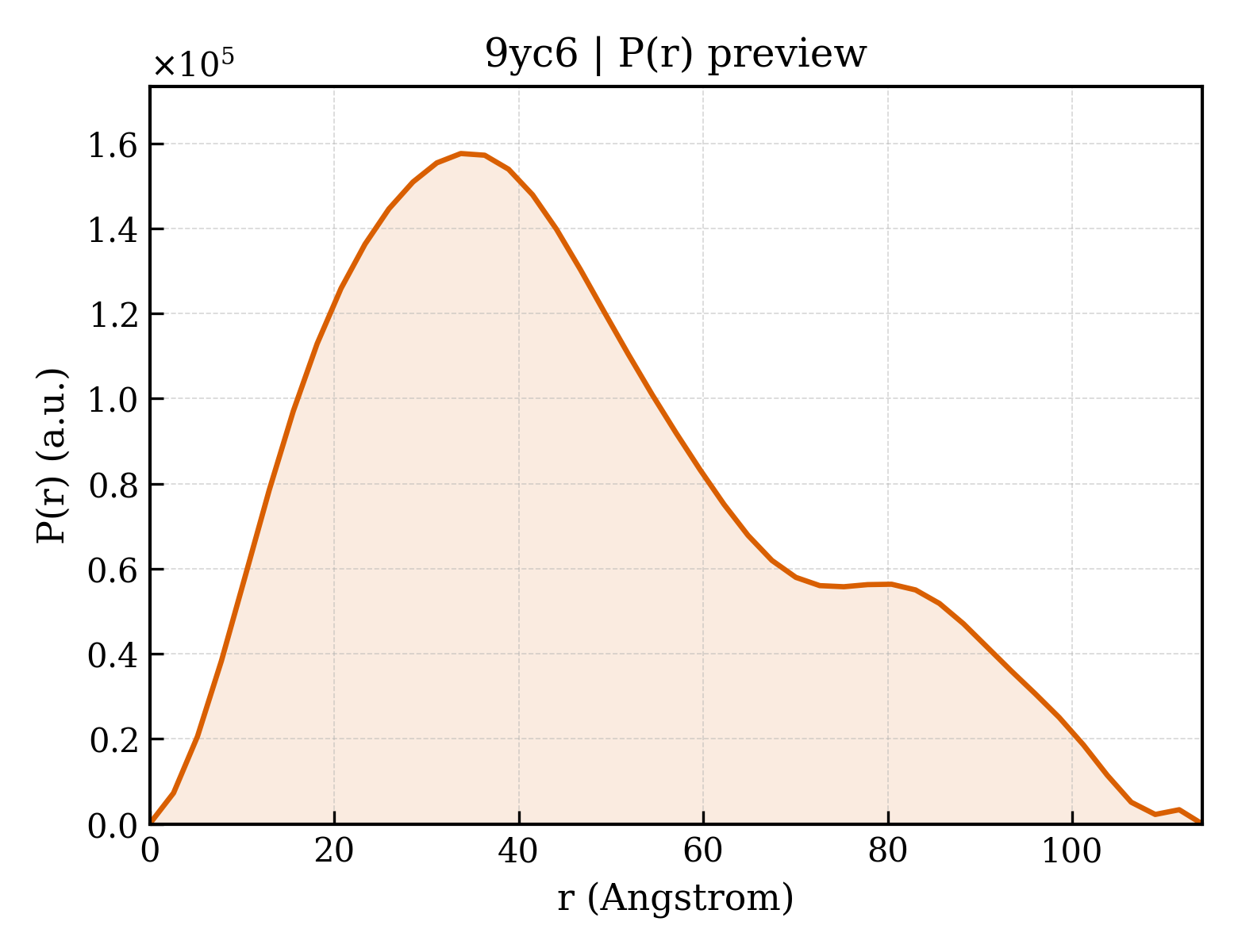

P(r) Distribution

▼

1. Structure Basics

entry_id	9yc6
deposition_date	2025-09-18
title	Mutant human uPAR bound to the Fab fragment of the targeted cancer therapeutic antibody FL1
keywords	Complex, Targeted cancer therapy, Monoclonal anti-uPAR antibody FL1, Antibody-drug conjugate, IMMUNE SYSTEM; IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.71 Å
rg_electron	35.94 Å
i0	108714000.00
molecular_weight	78920.0 kDa
excluded_volume	96860 Å³
envelope_volume	133080 Å³
shell_volume	34230 Å³
envelope_diameter	121.6 Å
shell_rg	38.15 Å
envelope_rg	35.62 Å
shape_rg	35.86 Å
total_rg	36.35 Å
total_atoms	10788
n_residues	709
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	114.2 Å
rg_real	36.13 Å
rg_real_error	1.18 Å
i0_real	1.0870e+08
i0_real_error	1.9580e+06
rg_reciprocal	35.87 Å
i0_reciprocal	108700000.0000
total_estimate	0.7865
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	33.7 Å
skewness	0.552
kurtosis	-0.464
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	5898000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.751; Smooth: 0.032

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Anti-uPAR antibody FL1 Fab light chain
formula_weight	24168.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L
atom_count	10788

DIVMTQTPLSLPVSLGDQASISCRSSQSVVSNNGKTYLEWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYYCFQGSHVPWTFGGGTKLEVKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Source

organism	Mus musculus
common_name	Mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 2 polymer

description	Urokinase plasminogen activator surface receptor
formula_weight	31455.4 kDa
mutation	H47C, N259C
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	U

LRCMQCKTNGDCRVEECALGQDLCRTTIVRLWEEGEELELVEKSCTCSEKTNRTLSYRTGLKITSLTEVVCGLDLCNQGNSGRAVTYSRSRYLECISCGSSDMSCERGRHQSLQCRSPEEQCLDVVTHWIQEGEEGRPKDDRHLRGCGYLPGCPGSNGFHNNDTFHFLKCCNTTKCNEGPILELENLPQNGRQCYSCKGNSTHGCSSEETFLIDCRGPMNQCLVATGTHEPKNQSYMVRGCATASMCQHAHLGDAFSMCHIDVSCCTKSGCNHPDLDVQYRSG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Drosophila melanogaster

Entity 3 polymer

description	Anti-uPAR antibody FL1 Fab heavy chain
formula_weight	23581.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

EVQLQQSGSVLVRPGTSVNLSCKASGYTFTSYWMSWVKQRPGQGLEWIGEIFPKSGRINSNENFRGKATLTVDTSSSTAYINLSSLTSEDSAVYYCSPIYSGDYGFADWGQGTLVTVSAAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDC

Source

organism	Mus musculus
common_name	Mouse
ncbi_taxonomy_id	10090
host_organism	Mus musculus

Entity 4 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	1

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

resolution	4.80 Å
resolution_method	—
num_particles	86404

fit	/app/data/saxs_computation/yc/9yc6/9yc6.fit
pddf	/app/data/pr_computation/yc/9yc6/9yc6.pr.out
profile	/app/data/saxs_computation/yc/9yc6/9yc6.dat
