9ye4

Crystal structure of the human DCAF1 WDR domain in complex with OICR-41110

Method: X-RAY DIFFRACTION D_max: 87.2 Å Quality: EXCELLENT

SAXS Profile

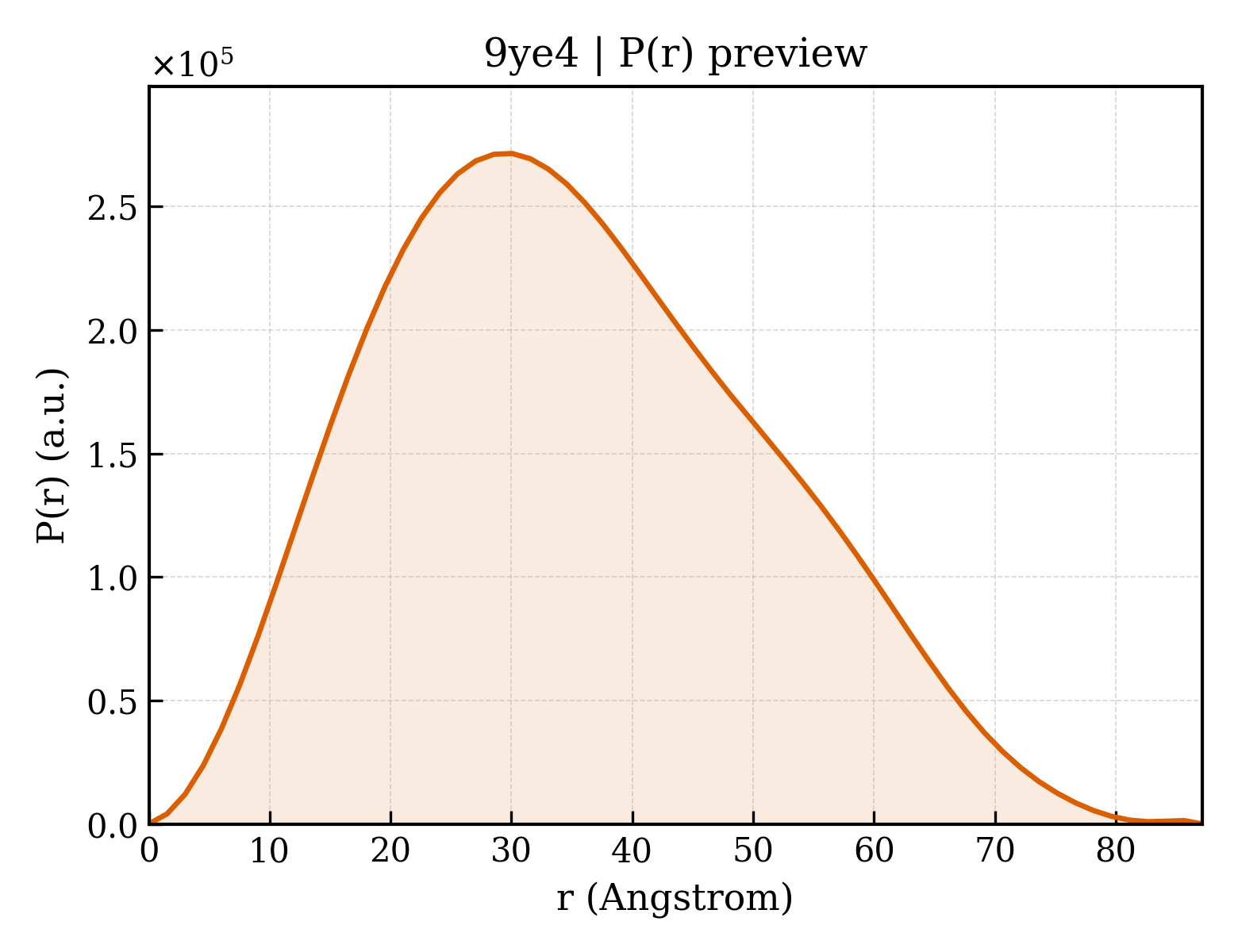

P(r) Distribution

▼

1. Structure Basics

entry_id	9ye4
deposition_date	2025-09-23
last_revision	2025-11-12
title	Crystal structure of the human DCAF1 WDR domain in complex with OICR-41110
keywords	;WD-repeat, WDR, DCAF1, SGC, Structural Genomics, PSI-2, Protein Structure Initiative, Structural Genomics Consortium, PROTEIN TRANSPORT ;; PROTEIN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.27 Å
rg_electron	26.59 Å
i0	139353000.00
molecular_weight	62573.0 kDa
excluded_volume	60576 Å³
envelope_volume	100000 Å³
shell_volume	31460 Å³
envelope_diameter	92.3 Å
shell_rg	33.83 Å
envelope_rg	26.44 Å
shape_rg	26.56 Å
total_rg	27.19 Å
total_atoms	4718
n_residues	596
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	87.2 Å
rg_real	27.26 Å
rg_real_error	0.63 Å
i0_real	1.3940e+08
i0_real_error	2.0900e+06
rg_reciprocal	27.27 Å
i0_reciprocal	139400000.0000
total_estimate	0.9019
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	30.1 Å
skewness	0.319
kurtosis	-0.522
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	21280000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.981

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DDB1- and CUL4-associated factor 1
formula_weight	35592.9 kDa
ec_number	2.7.11.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	5058

GASAFRPISVFREANEDESGFTCCAFSARERFLMLGTCTGQLKLYNVFSGQEEASYNCHNSAITHLEPSRDGSLLLTSATWSQPLSALWGMKSVFDMKHSFTEDHYVEFSKHSQDRVIGTKGDIAHIYDIQTGNKLLTLFNPDLANNYKRNCATFNPTDDLVLNDGVLWDVRSAQAIHKFDKFNMNISGVFHPNGLEVIINTEIWDLRTFHLLHTVPALDQCRVVFNHTGTVMYGAMLQADDEDDLMEERMKSPFGSSFRTFNATDYKPIATIDVKRNIFDLCTDTKDCYLAVIENQGSMDALNMDTVCRLYEVG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	;(4P)-4-(4-chloro-2-fluorophenyl)-N-[(1S)-1-(3-chloro-4-fluorophenyl)-2-cyanoethyl]-5-[(1E)-3-oxo-3-(piperidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide ;
formula_weight	557.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	278

▶

6. Citations (1)

▶

length_a	48.858 Å
length_b	87.712 Å
length_c	73.828 Å
angle_alpha	90.00 °
angle_beta	98.43 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.740 Å
resolution_low	48.380 Å
r_factor	0.1875
r_work	0.1855
r_free	0.2244
