SAXSdb — 9ylp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BCL11 transcription factor A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 373–433	Fragment：C2H2 zinc finger domains 2 and 3	DNA Strand II × 1 DNA Strand I × 1 ZN ZINC ION × 4 MG MAGNESIUM ION × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；278 K；28 % w/v PEG 4000, 0.1 M Sodium citrate (pH 6.5), 0.1 M Magnesium acetate tetrahydrate, 0.1 M Ammonium sulfate	Resolution 2.04 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9YLP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5VTB Crystal structure of RBBP4 bound to BCL11a peptide Deposited 2017-05-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–16（15 aa） Fragment：UNP residues 2-16	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG2000 MME, 0.1 M potassium thiocyanate	Resolution 2.40 Å R-free 0.244
6KI6 Crystal structure of BCL11A in complex with gamma-globin -115 HPFH region Deposited 2019-07-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 731–835（105 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M calcium acetate hydrate, 0.1 M sodium cacodylate trihydrate (pH6.5), 18% w/v polyethylene glycol 8,000	Resolution 2.50 Å R-free 0.251
6KI6 Crystal structure of BCL11A in complex with gamma-globin -115 HPFH region Deposited 2019-07-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 731–835（105 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M calcium acetate hydrate, 0.1 M sodium cacodylate trihydrate (pH6.5), 18% w/v polyethylene glycol 8,000	Resolution 2.50 Å R-free 0.251
6U9Q Crystal Structure Analysis of DNA-BCL11A Znf domain complex Deposited 2019-09-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa）	Not recorded	ZN ZINC ION × 3 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；NaMalate~8.0	Resolution 1.83 Å R-free 0.195
8DTN The complex of nanobody 6101 with BCL11A ZF6 Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 797–826（30 aa） Chain D 797–826（30 aa） Chain F 797–826（30 aa） Chain H 797–826（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M Bis-Tris propane, pH 6.0-7.0, 0.2 M NaKPO4 and 18%-20% PEG 3350	Resolution 2.20 Å R-free 0.232
8DTN The complex of nanobody 6101 with BCL11A ZF6 Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 797–826（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M Bis-Tris propane, pH 6.0-7.0, 0.2 M NaKPO4 and 18%-20% PEG 3350	Resolution 2.20 Å R-free 0.232
8DTN The complex of nanobody 6101 with BCL11A ZF6 Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 797–826（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M Bis-Tris propane, pH 6.0-7.0, 0.2 M NaKPO4 and 18%-20% PEG 3350	Resolution 2.20 Å R-free 0.232
8DTN The complex of nanobody 6101 with BCL11A ZF6 Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 797–826（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 3 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M Bis-Tris propane, pH 6.0-7.0, 0.2 M NaKPO4 and 18%-20% PEG 3350	Resolution 2.20 Å R-free 0.232
8DTN The complex of nanobody 6101 with BCL11A ZF6 Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 797–826（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M Bis-Tris propane, pH 6.0-7.0, 0.2 M NaKPO4 and 18%-20% PEG 3350	Resolution 2.20 Å R-free 0.232
8DTU The complex of nanobody 5344N74D with BCL11A ZF6. Deposited 2022-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 799–826（28 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281.15 K；0.1 M HEPES, pH 7.5-8.2, 2.2M Li2SO4.	Resolution 2.45 Å R-free 0.288
8THO Solution structure of the zinc finger repeat domain of BCL11A (ZnF456) Deposited 2023-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 737–835（99 aa） Fragment：residues 737-835	Not recorded	ZN ZINC ION × 3	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 163；Pressure 1 NMR sample composition 137 mM sodium chloride, 2.7 mM potassium chloride, 10 mM sodium phosphate, 1.8 mM potassium phosphate, 1 mM dithiothreitol, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8TLO Crystal Structure Analysis of BCL11A in complex with DNA Deposited 2023-07-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；30% PEG6K and 0.1M Na Citrate pH 5.0	Resolution 2.76 Å R-free 0.269
9B4P Tetramer Formation of the BCL11A ZF0 Domain Deposited 2024-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain B 45–71（27 aa） Fragment：ZF0 domain Chain C 45–71（27 aa） Fragment：ZF0 domain	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.3；291.15 K；0.2M potassium nitrate, 0.1M Tris-HCl pH 7.3, 20% PEG3350	Resolution 2.56 Å R-free 0.294
9B4P Tetramer Formation of the BCL11A ZF0 Domain Deposited 2024-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 45–71（27 aa） Fragment：ZF0 domain Chain D 45–71（27 aa） Fragment：ZF0 domain Chain E 45–71（27 aa） Fragment：ZF0 domain Chain F 45–71（27 aa） Fragment：ZF0 domain	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.3；291.15 K；0.2M potassium nitrate, 0.1M Tris-HCl pH 7.3, 20% PEG3350	Resolution 2.56 Å R-free 0.294
9B4P Tetramer Formation of the BCL11A ZF0 Domain Deposited 2024-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain G 45–71（27 aa） Fragment：ZF0 domain Chain H 45–71（27 aa） Fragment：ZF0 domain Chain I 45–71（27 aa） Fragment：ZF0 domain Chain J 45–71（27 aa） Fragment：ZF0 domain	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.3；291.15 K；0.2M potassium nitrate, 0.1M Tris-HCl pH 7.3, 20% PEG3350	Resolution 2.56 Å R-free 0.294
9BV0 NMR structure of the Z0 CCHC zinc-finger of transcription repressor Bcl11A Deposited 2024-05-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 46–72（27 aa） Fragment：B0 atypical C2HC zinc-finger domain, residues 46-72	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 6.3；298 K；Ionic strength (raw mmCIF value) 0.6；Pressure 1 NMR measurement conditions pH 5.8；298 K；Ionic strength (raw mmCIF value) 0.6；Pressure 1 NMR sample composition 40 uM Bcl11A-Z0, 600 uM Zn2+, 90% H2O/10% D20 \| 90% H2O/10% D20 NMR sample composition 40 uM Bcl11A-Z0, 600 uM Zn2+, 100% D20 \| 100% D2O	Resolution not provided
9E6R BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGACCA Deposited 2024-10-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 4 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；292 K；24 % v/v Ethanol, 0.1 M HEPES 7.8, 40 mM Magnesium chloride hexahydrate	Resolution 2.09 Å R-free 0.238
9E6R BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGACCA Deposited 2024-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；292 K；24 % v/v Ethanol, 0.1 M HEPES 7.8, 40 mM Magnesium chloride hexahydrate	Resolution 2.09 Å R-free 0.238
9E6R BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGACCA Deposited 2024-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain Y 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；292 K；24 % v/v Ethanol, 0.1 M HEPES 7.8, 40 mM Magnesium chloride hexahydrate	Resolution 2.09 Å R-free 0.238
9E6S BCL11A ZF4-6 with K784T Mutation in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGACCA Deposited 2024-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6 Chain D 730–835（106 aa） Fragment：Zinc finger domains 4-6	Mutation：K784T Mutation：K784T	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；292 K；18 % w/v PEG 3350, 17 % v/v PEG 400, 4.8 % v/v 2-Propanol, 0.1 M CAPSO 9.0	Resolution 2.20 Å R-free 0.275
9E6T BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGCCCA Deposited 2024-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6 Chain B 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 6 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；15 % w/v PEG 1000, 30 % v/v PEG 300, 0.1 M Bis-Tris Propane 7.0	Resolution 2.78 Å R-free 0.281
9YLL BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGTCCA (20-mer) Deposited 2025-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；292 K；20% w/v Polyethylene glycol 3,350 0.2M sodium chloride	Resolution 2.38 Å R-free 0.247
9YLM BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGTCCA (12-mer) Deposited 2025-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；28 % w/v PEG 4000, 0.1 M Sodium citrate (pH 5.2), 0.2 M Ammonium acetate	Resolution 1.91 Å R-free 0.244
9YLN BCL11A ZF4-6 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGGCCA (12-mer) Deposited 2025-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 730–835（106 aa） Fragment：Zinc finger domains 4-6	Not recorded	ZN ZINC ION × 3 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；292 K；28 % w/v PEG 4000, 0.1 M Sodium citrate (pH 5.2), 0.2 M Ammonium acetate	Resolution 2.15 Å R-free 0.247
9YLO BCL11A ZF2-3 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGTCCA (P21212 crystal form) Deposited 2025-10-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 373–433（61 aa） Fragment：C2H2 zinc finger domains 2 and 3	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；292 K；10% w/v PEG 20 000, 20% v/v PEG MME 500, 60mM sodium fluoride, 60mM sodium bromide, 60mM sodium iodide, 0.1M Bicine- TRIS-base (pH 8.5)	Resolution 1.97 Å R-free 0.241

16 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BC11A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–63； UniProt 373–433

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ylp
Deposition date deposition_date	2025-10-08
Structure title title	BCL11A ZF2-3 in Complex with a DNA Sequence Observed in the Human Globin Locus Containing Motif TGTCCA (C2221 Crystal Form)
Keywords keywords	TRANSCRIPTION FACTOR, DNA BINDING, TRANSCRIPTION, TRANSCRIPTION-DNA COMPLEX, GLOBIN LOCUS, DNA BINDING PROTEIN; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.32 Å
Radius of gyration Rg (electron density) rg_electron	14.75 Å
Forward intensity I(0) i0	7187990.00
Molecular weight molecular_weight	14272.0 kDa
Excluded volume excluded_volume	15508 Å³
Envelope volume envelope_volume	19790 Å³
Hydration-shell volume shell_volume	11805 Å³
Envelope diameter envelope_diameter	56.7 Å
Shell Rg shell_rg	19.90 Å
Envelope Rg envelope_rg	15.07 Å
Shape Rg shape_rg	14.67 Å
Total Rg total_rg	15.68 Å
Total atoms total_atoms	954
Residues n_residues	80
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

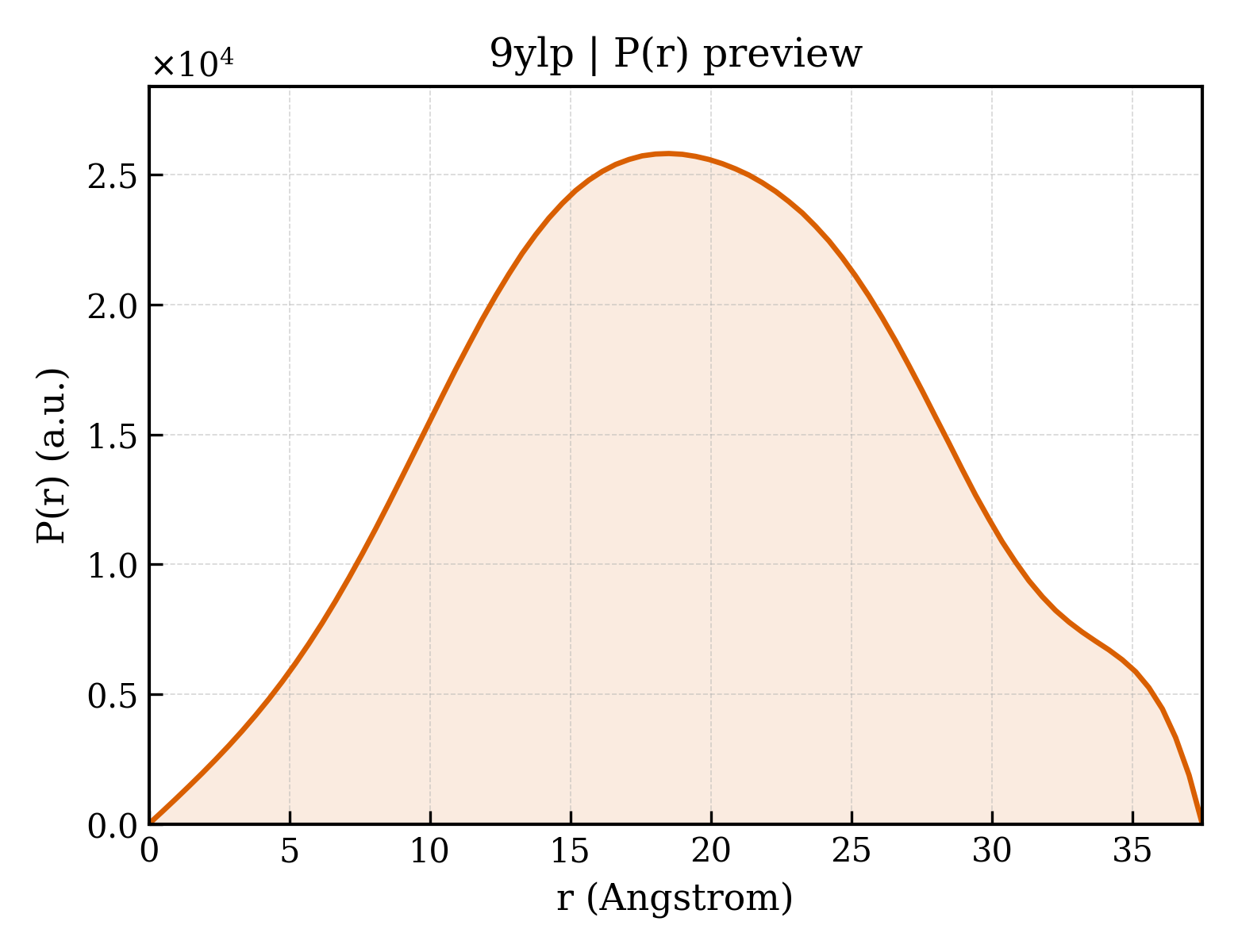

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.5 Å
Rg (real space) rg_real	14.69 Å
Rg uncertainty (real space) rg_real_error	0.03 Å
I(0) (real space) i0_real	6.8840e+06
I(0) uncertainty (real space) i0_real_error	4.6740e+04
Rg (reciprocal space) rg_reciprocal	15.25 Å
I(0) (reciprocal space) i0_reciprocal	7188000.0000
Solution quality estimate total_estimate	0.6881
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	18.5 Å
Skewness Skewness skewness	0.050
Kurtosis Kurtosis kurtosis	-0.601
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	2.4340
Highest regularization parameter α highest_alpha	509400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 1.000; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	BCL11 transcription factor A
Molecular weight formula_weight	7318.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	984

HMPVKSKSCEFCGKTFKFQSNLVVHRRSHTGEKPYKCNLCDHACTQASKLKRHMKTHMHKSSP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DNA Strand II
Molecular weight formula_weight	3686.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

AGATGGACATTC

Entity 3 Entity 3 polymer

Description description	DNA Strand I
Molecular weight formula_weight	3637.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E

GAATGTCCATCT

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	30

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.899 Å
Unit-cell length b length_b	69.554 Å
Unit-cell length c length_c	129.174 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	orthorhombic

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	34.780 Å
R factor r_factor	0.2113
R_work r_work	0.2095
R_free r_free	0.2447

fit	/app/data/saxs_computation/yl/9ylp/9ylp.fit
pddf	/app/data/pr_computation/yl/9ylp/9ylp.pr.out
profile	/app/data/saxs_computation/yl/9ylp/9ylp.dat
