SAXSdb — 8dtn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

B-cell lymphoma/leukemia 11A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Nanobody 6101 × 4 MAGNESIUM ION × 4 ZINC ION × 4 water × 8	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Nanobody 6101 × 1 MAGNESIUM ION × 1 ZINC ION × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Nanobody 6101 × 1 ZINC ION × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Nanobody 6101 × 1 MAGNESIUM ION × 3 ZINC ION × 1 water × 2	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 2	Nanobody 6101 × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BC11A_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–30； UniProt 797–826 Author chain D； PDBConstruct 1–30； UniProt 797–826 Author chain F； PDBConstruct 1–30； UniProt 797–826 Author chain H； PDBConstruct 1–30； UniProt 797–826

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dtn
Deposition date deposition_date	2022-07-26
Structure title title	The complex of nanobody 6101 with BCL11A ZF6
Keywords keywords	Nanobody, BCL11A, Transcription factor, Zinc finger domain, protein degradation, gamma globin, sickle cells, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8dtn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

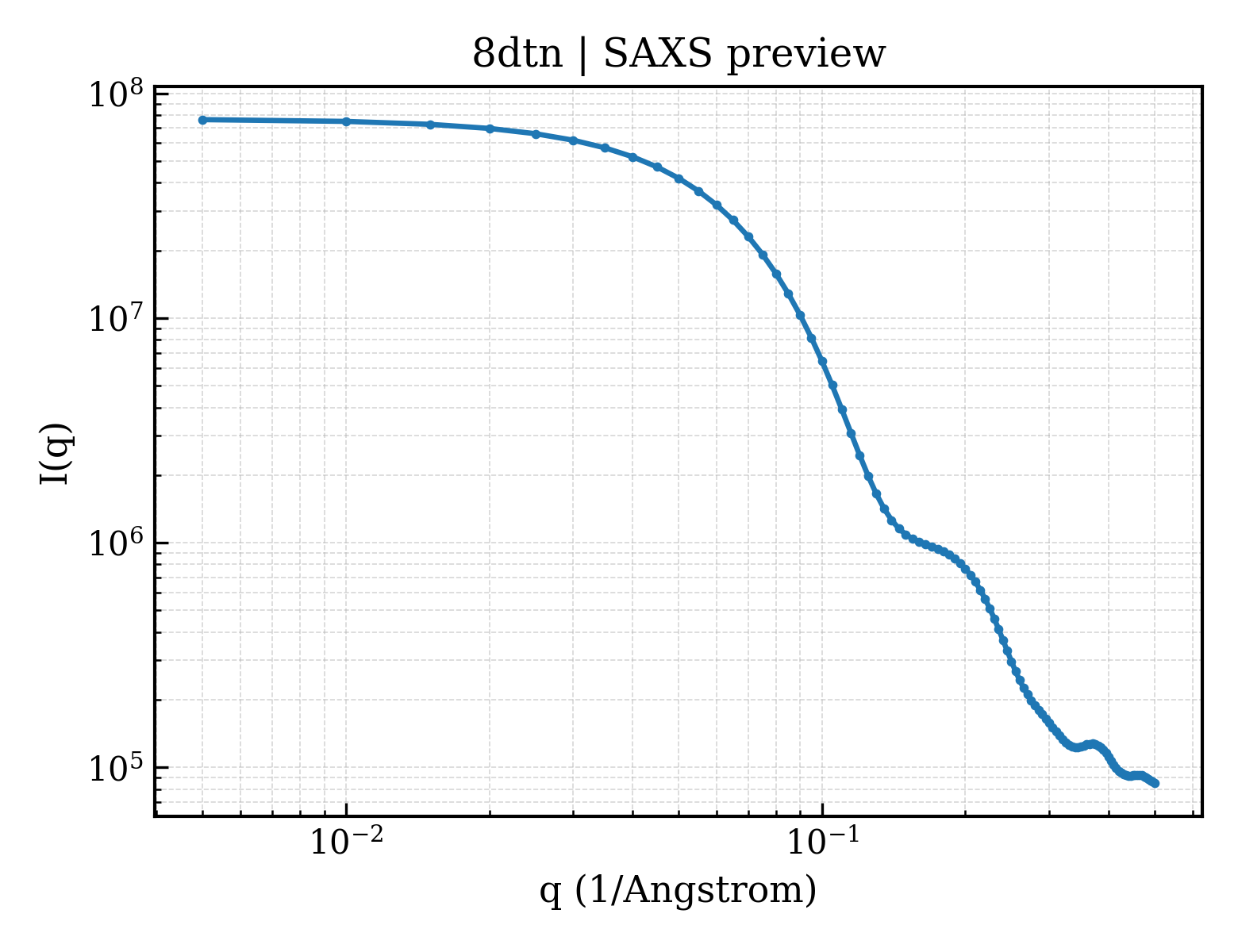

8dtn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8dtn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.89 Å
Rg (electron density)	26.17 Å
Total Rg	27.04 Å
Atom count	4519
Residues	563
Excluded volume	80508 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8dtn__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8dtn__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8dtn__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`8dtn__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`8dtn__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Nanobody 6101
Molecular weight formula_weight	12726.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	4920

RVQLVESGGGLVQAGGSLRLSCAASGFIFDSYAMGWYRQAPGKEMELVAAITSSGSSTYYADSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCAALDYVIDGYWGQGTQVTVSS

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	B-cell lymphoma/leukemia 11A
Molecular weight formula_weight	3821.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

KDVYKCEICKMPFSVYSTLEKHMKKWHSDR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	401

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	8dtnA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8dtnC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8dtnE01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8dtnG01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	54.933 Å
Unit-cell length b length_b	54.933 Å
Unit-cell length c length_c	408.619 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.199 Å
Low-resolution limit resolution_low	29.279 Å
R factor r_factor	0.1969
R_work r_work	0.1949
R_free r_free	0.2324

The complex of nanobody 6101 with BCL11A ZF6
