9ylz
Backbone Modification in the Villin Headpiece Miniprotein: HP35 with beta3Leu at Position 28
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9ylz |
| deposition_date | 2025-10-09 |
| title | Backbone Modification in the Villin Headpiece Miniprotein: HP35 with beta3Leu at Position 28 |
| keywords | miniprotein, heterogeneous backbone, proteomimetic, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.50 Å |
| rg_electron | 9.29 Å |
| i0 | 20261000.00 |
| molecular_weight | 40578.0 kDa |
| excluded_volume | 52272 ų |
| envelope_volume | 7347 ų |
| shell_volume | 6643 ų |
| envelope_diameter | 33.1 Å |
| shell_rg | 14.96 Å |
| envelope_rg | 10.30 Å |
| shape_rg | 9.27 Å |
| total_rg | 9.71 Å |
| total_atoms | 5860 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

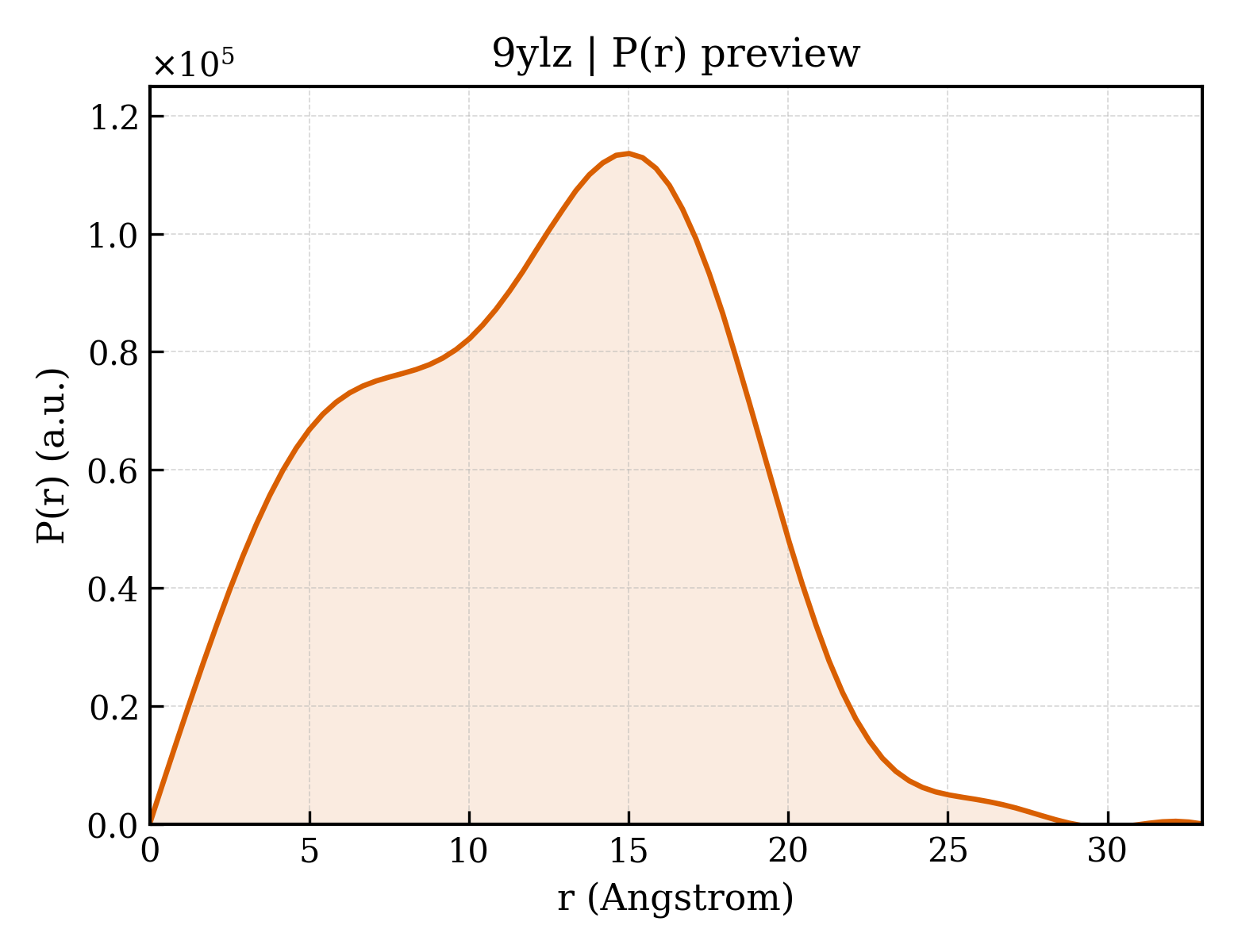

3. P(r) Analysis (GNOM)
| dmax | 33.0 Å |
| rg_real | 9.46 Å |
| rg_real_error | 0.36 Å |
| i0_real | 2.0260e+07 |
| i0_real_error | 2.0360e+05 |
| rg_reciprocal | 9.46 Å |
| i0_reciprocal | 20260000.0000 |
| total_estimate | 0.8219 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.0 Å |
| skewness | -0.052 |
| kurtosis | -0.676 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5459.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.609; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.880; Smooth: 0.976 |
