9ym0
Backbone Modification in the Villin Headpiece Miniprotein: HP35 with ACPC at Position 28
SAXS Profile

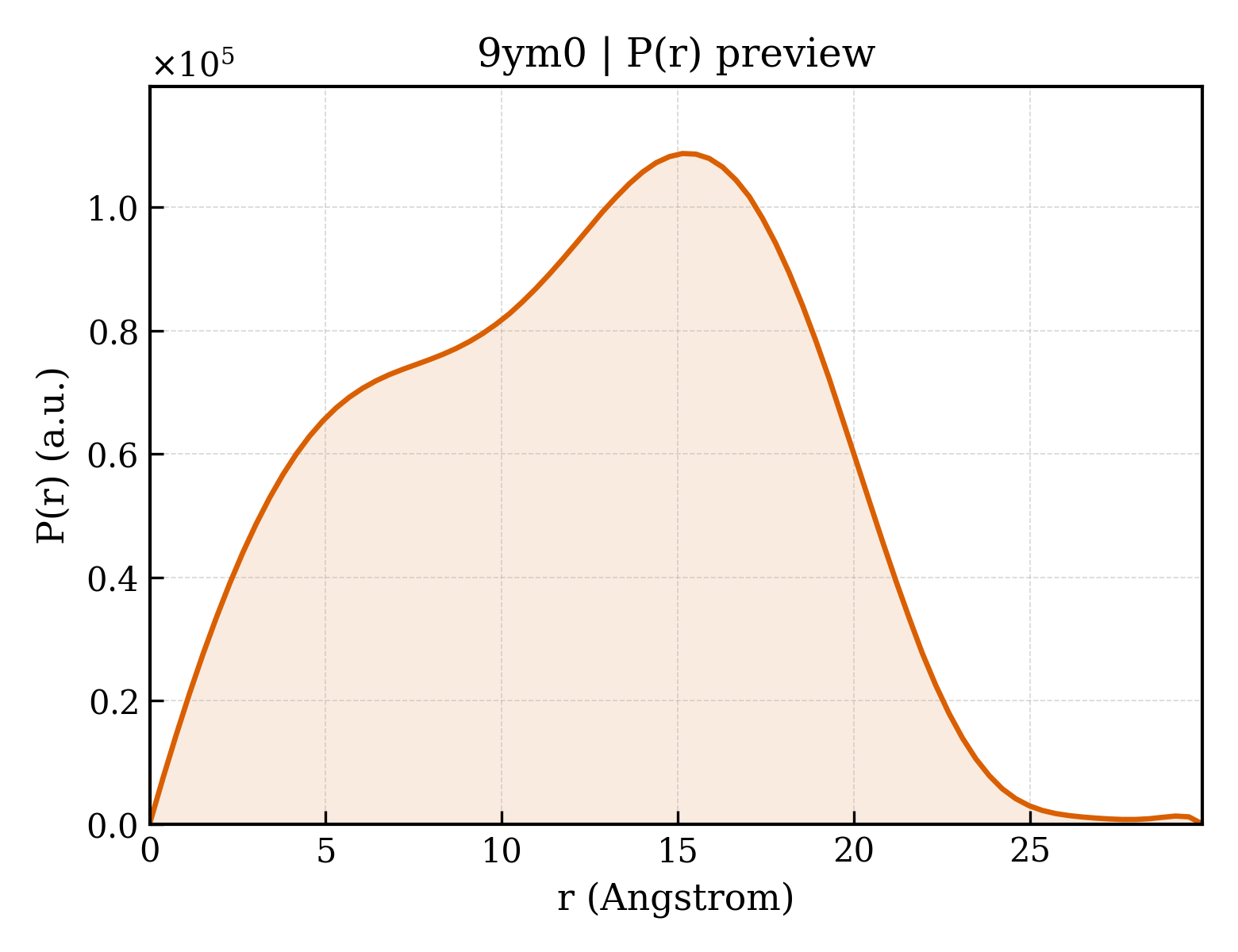

P(r) Distribution
1. Structure Basics
| entry_id | 9ym0 |
| deposition_date | 2025-10-09 |
| title | Backbone Modification in the Villin Headpiece Miniprotein: HP35 with ACPC at Position 28 |
| keywords | miniprotein, heterogeneous backbone, proteomimetic, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.64 Å |
| rg_electron | 9.60 Å |
| i0 | 20583400.00 |
| molecular_weight | 40417.0 kDa |
| excluded_volume | 51897 ų |
| envelope_volume | 7545 ų |
| shell_volume | 6639 ų |
| envelope_diameter | 32.9 Å |
| shell_rg | 15.18 Å |
| envelope_rg | 10.67 Å |
| shape_rg | 9.57 Å |
| total_rg | 10.03 Å |
| total_atoms | 5810 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.9 Å |
| rg_real | 9.60 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.0580e+07 |
| i0_real_error | 2.0200e+05 |
| rg_reciprocal | 9.60 Å |
| i0_reciprocal | 20580000.0000 |
| total_estimate | 0.8854 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.1 Å |
| skewness | -0.100 |
| kurtosis | -0.787 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4440.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.861; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.976 |
