9ym2
Backbone Modification in the Villin Headpiece Miniprotein: HP35 with ACPC at Position 29

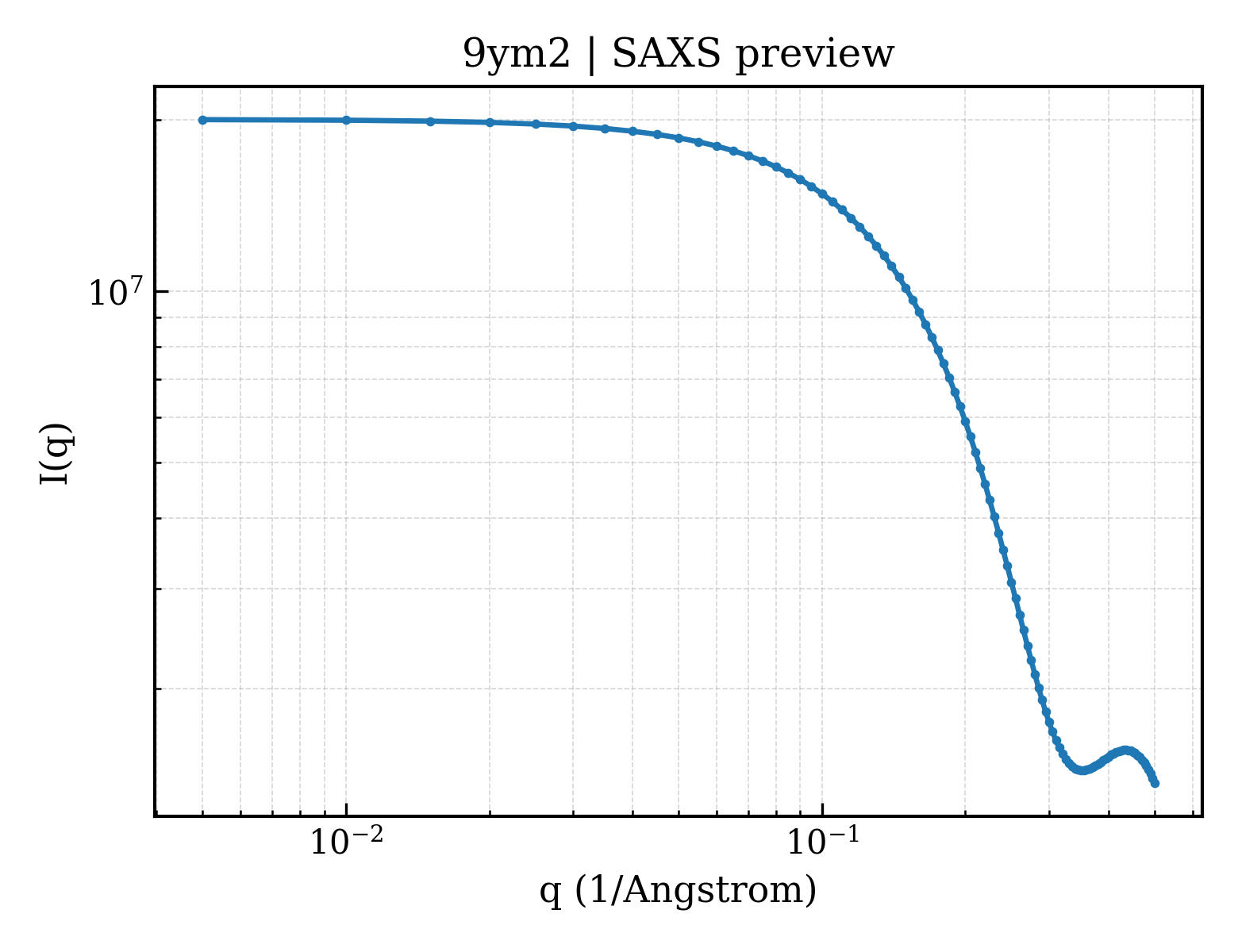

SAXS Profile

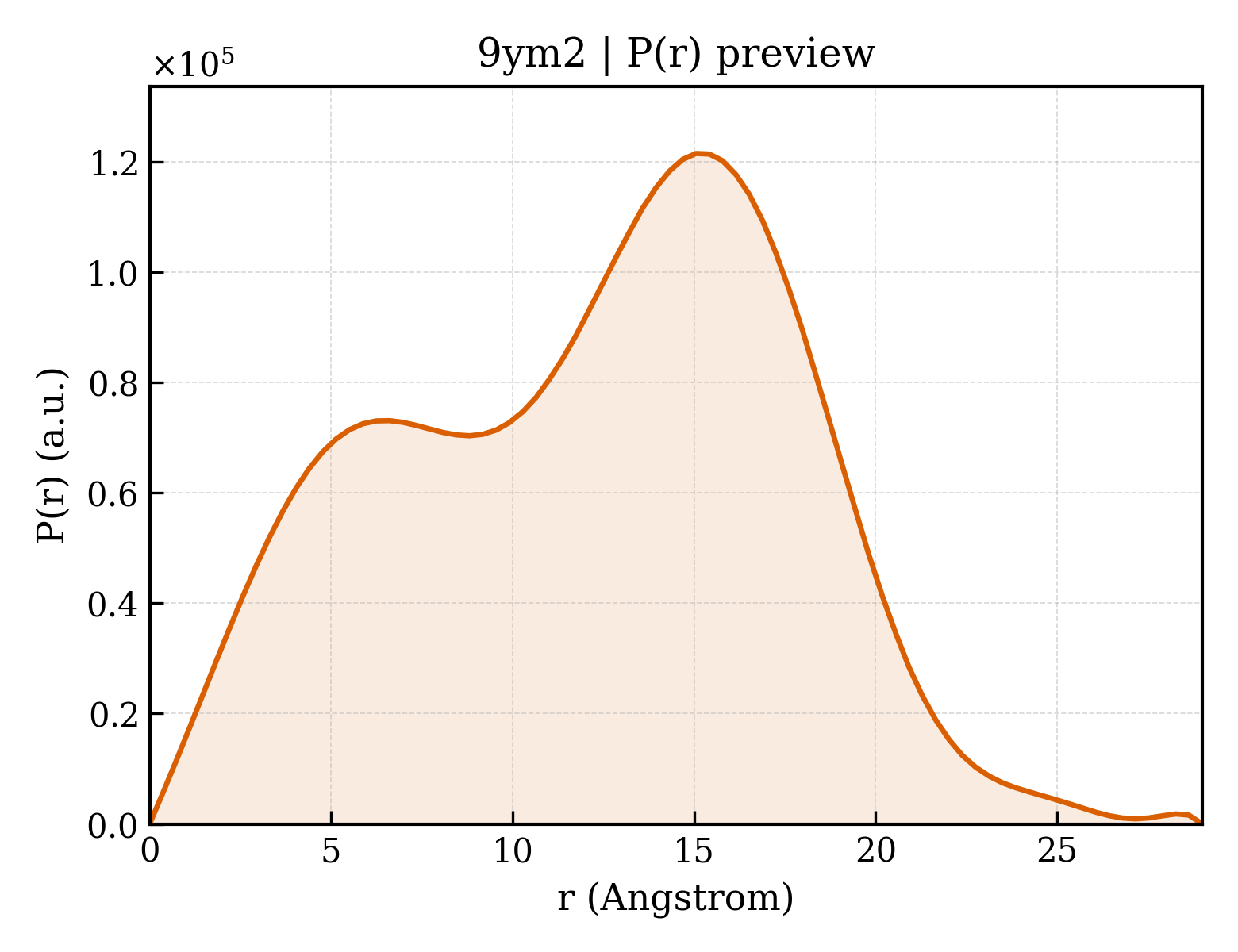

P(r) Distribution
1. Structure Basics
| entry_id | 9ym2 |
| deposition_date | 2025-10-09 |
| title | Backbone Modification in the Villin Headpiece Miniprotein: HP35 with ACPC at Position 29 |
| keywords | miniprotein, heterogeneous backbone, proteomimetic, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.50 Å |
| rg_electron | 9.20 Å |
| i0 | 20050600.00 |
| molecular_weight | 40257.0 kDa |
| excluded_volume | 51780 ų |
| envelope_volume | 7132 ų |
| shell_volume | 6522 ų |
| envelope_diameter | 32.3 Å |
| shell_rg | 14.79 Å |
| envelope_rg | 10.13 Å |
| shape_rg | 9.17 Å |
| total_rg | 9.64 Å |
| total_atoms | 5780 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.0 Å |
| rg_real | 9.45 Å |
| rg_real_error | 0.28 Å |
| i0_real | 2.0050e+07 |
| i0_real_error | 2.2110e+05 |
| rg_reciprocal | 9.45 Å |
| i0_reciprocal | 20050000.0000 |
| total_estimate | 0.8330 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 15.1 Å |
| skewness | -0.125 |
| kurtosis | -0.721 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4429.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.639; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.950 |
