9ym5
Backbone Modification in the Villin Headpiece Miniprotein: HP35 with Calpha-methyl-Phe at Position 6

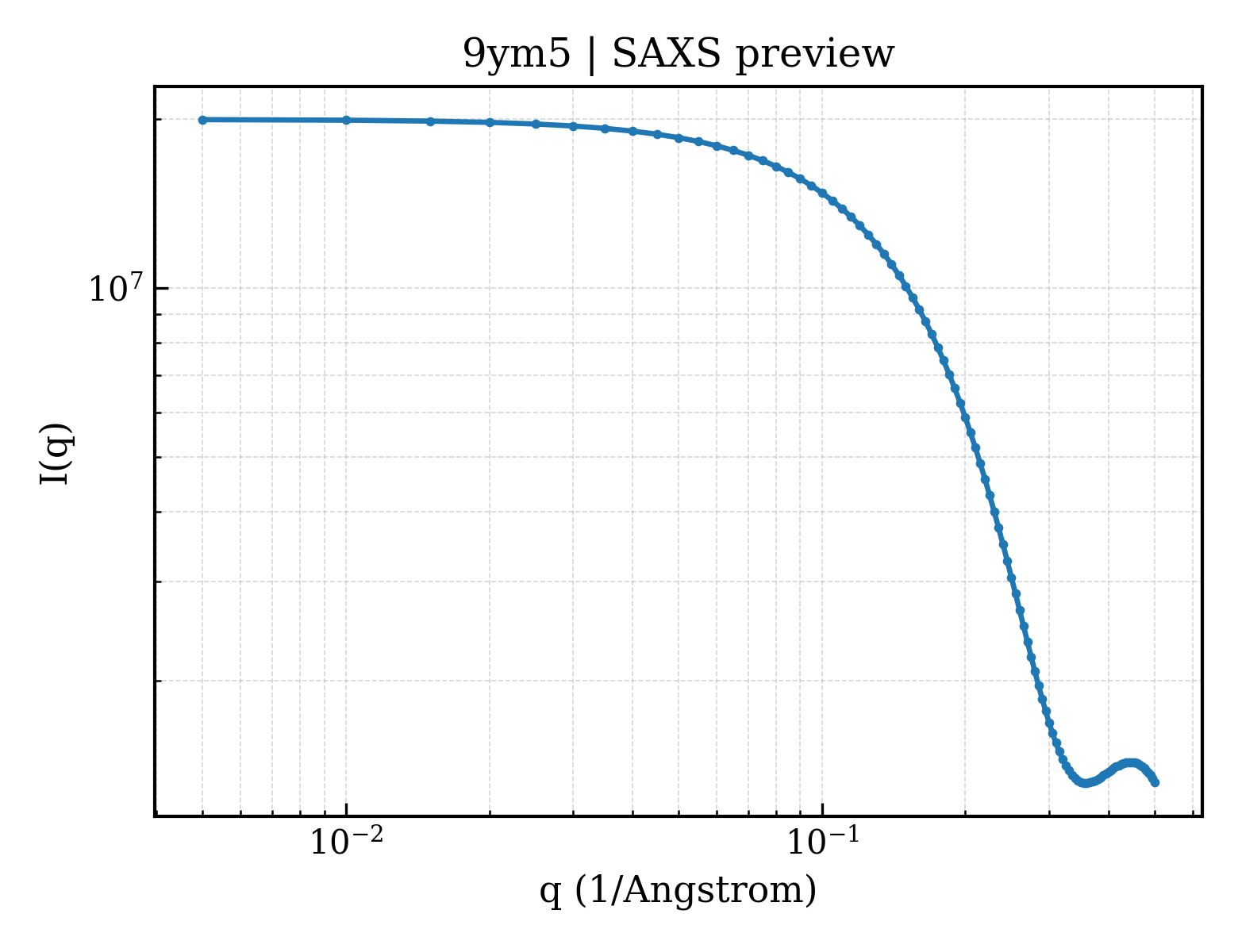

SAXS Profile

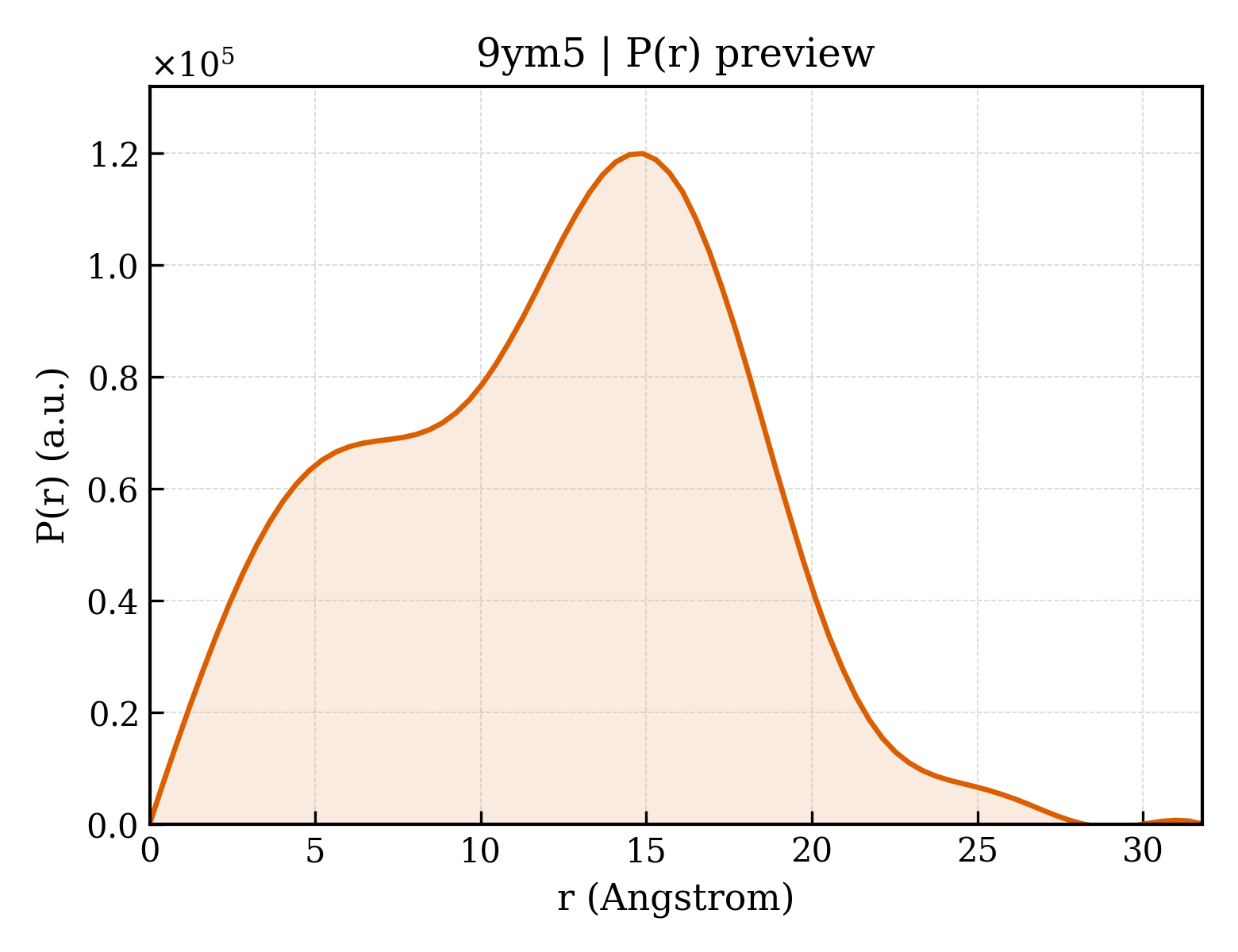

P(r) Distribution
1. Structure Basics
| entry_id | 9ym5 |
| deposition_date | 2025-10-09 |
| title | Backbone Modification in the Villin Headpiece Miniprotein: HP35 with Calpha-methyl-Phe at Position 6 |
| keywords | miniprotein, heterogeneous backbone, proteomimetic, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.50 Å |
| rg_electron | 9.18 Å |
| i0 | 19963600.00 |
| molecular_weight | 40568.0 kDa |
| excluded_volume | 52336 ų |
| envelope_volume | 6986 ų |
| shell_volume | 6472 ų |
| envelope_diameter | 32.7 Å |
| shell_rg | 14.65 Å |
| envelope_rg | 10.04 Å |
| shape_rg | 9.20 Å |
| total_rg | 9.42 Å |
| total_atoms | 5860 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.8 Å |
| rg_real | 9.46 Å |
| rg_real_error | 0.36 Å |
| i0_real | 1.9960e+07 |
| i0_real_error | 2.2810e+05 |
| rg_reciprocal | 9.46 Å |
| i0_reciprocal | 19960000.0000 |
| total_estimate | 0.8101 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.9 Å |
| skewness | -0.086 |
| kurtosis | -0.606 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5482.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.547; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.949 |
