9yy4

Importin a2 in complex with Lone Star virus non-structural S (NSs) NLS peptide

Method: X-RAY DIFFRACTION D_max: 98.9 Å Quality: GOOD

SAXS Profile

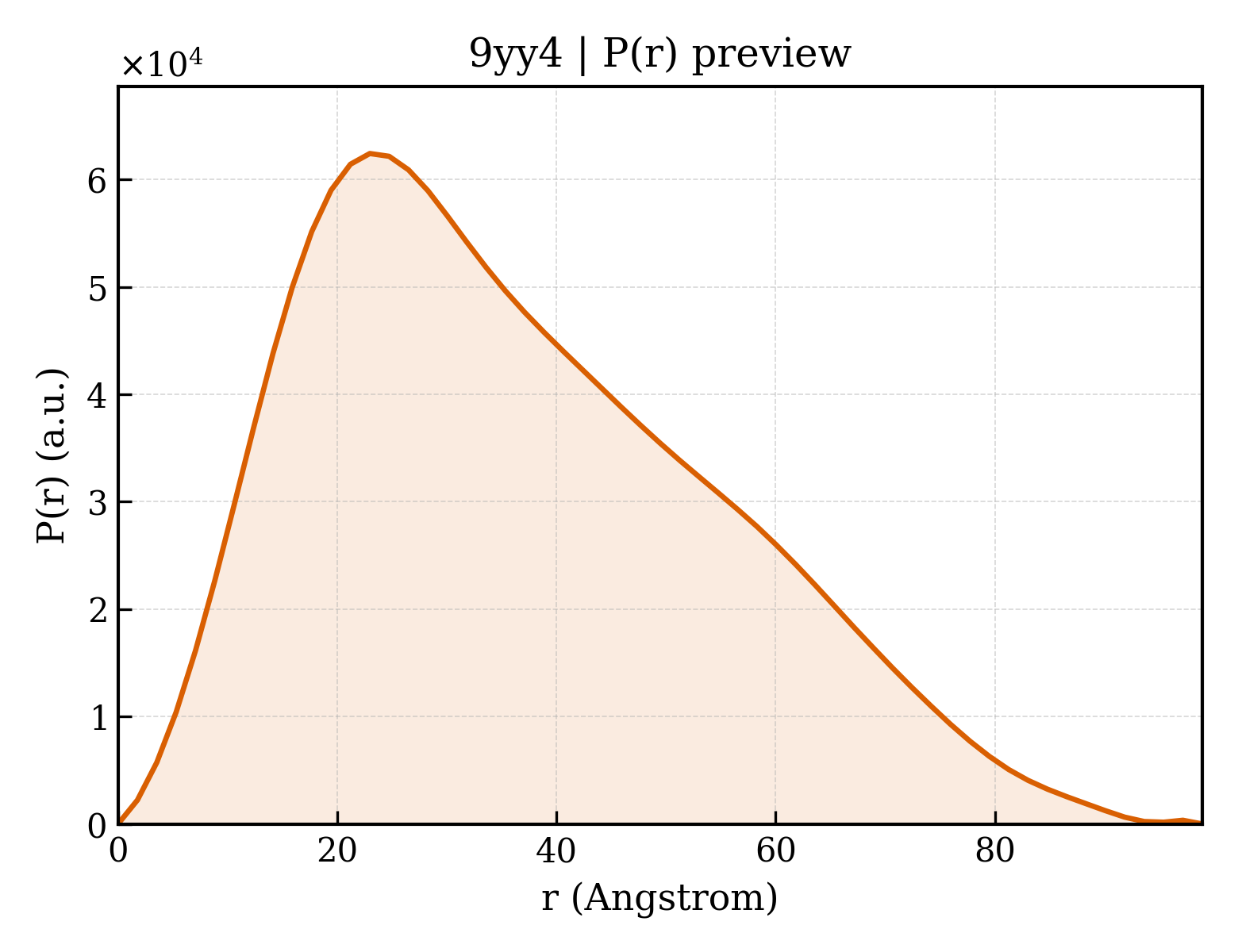

P(r) Distribution

▼

1. Structure Basics

entry_id	9yy4
deposition_date	2025-10-28
last_revision	2025-11-05
title	Importin a2 in complex with Lone Star virus non-structural S (NSs) NLS peptide
keywords	Complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.46 Å
rg_electron	28.20 Å
i0	34275500.00
molecular_weight	47018.0 kDa
excluded_volume	59532 Å³
envelope_volume	73041 Å³
shell_volume	23153 Å³
envelope_diameter	102.6 Å
shell_rg	33.18 Å
envelope_rg	28.24 Å
shape_rg	28.20 Å
total_rg	28.72 Å
total_atoms	3309
n_residues	433
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	98.9 Å
rg_real	28.83 Å
rg_real_error	1.01 Å
i0_real	3.4280e+07
i0_real_error	5.6480e+05
rg_reciprocal	28.72 Å
i0_reciprocal	34270000.0000
total_estimate	0.8004
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	23.0 Å
skewness	0.519
kurtosis	-0.437
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0000
highest_alpha	11980000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.666; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.508; Smooth: 0.894

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Importin subunit alpha-1
formula_weight	55268.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3438

MHHHHHHSSGLVPRGSGMLETAAALFERNHMDSPDLGTDDDDLAMADIGSNQGTVNWSVEDIVKGINSNNLESQLQATQAARKLLSREKQPPIDNIIRAGLIPKFVSFLGKTDCSPIQFESAWALTNIASGTSEQTKAVVDGGAIPAFISLLASPHAHISEQAVWALGNIAGDGSAFRDLVIKHGAIDPLLALLAVPDLSTLACGYLRNLTWTLSNLCRNKNPAPPLDAVEQILPTLVRLLHHNDPEVLADSCWAISYLTDGPNERIEMVVKKGVVPQLVKLLGATELPIVTPALRAIGNIVTGTDEQTQKVIDAGALAVFPSLLTNPKTNIQKEATWTMSNITAGRQDQIQQVVNHGLVPFLVGVLSKADFKTQKEAAWAITNYTSGGTVEQIVYLVHCGIIEPLMNLLSAKDTKIIQVILDAISNIFQAAEKLGETEKLSIMIEECGGLDKIEALQRHENESVYKASLNLIEKYFSVEEEEDQNVVPETTSEGFAFQVQDGAPGTFNF

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Escherichia coli

Entity 2 polymer

description	Non-structural S NLS peptide
formula_weight	2398.9 kDa
src_method	syn
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

YPRKLPKRMRRDVDEYLR

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	129

▶

6. Citations (1)

▶

length_a	78.898 Å
length_b	90.144 Å
length_c	100.309 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	2.350 Å
resolution_low	29.680 Å
r_factor	0.1876
r_work	0.1854
r_free	0.2294

fit	/app/data/saxs_computation/yy/9yy4/9yy4.fit
pddf	/app/data/pr_computation/yy/9yy4/9yy4.pr.out
profile	/app/data/saxs_computation/yy/9yy4/9yy4.dat
