1. Protein Identity and Related Structures Protein Identity & Related Structures

Transferrin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Transferrin-binding protein A × 1 （Q01996） Transferrin-binding protein B × 1 （Q9JPI9） BICARBONATE ION × 1 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRFE_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain F； PDBConstruct 1–698； UniProt 1–698

Transferrin-binding protein A

Neisseria gonorrhoeae

UniProt Q01996

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Transferrin × 1 （P02787） Transferrin-binding protein B × 1 （Q9JPI9） BICARBONATE ION × 1 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBPA_NEIGO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 20–910； UniProt 25–915

Transferrin-binding protein B

Neisseria meningitidis serogroup B

UniProt Q9JPI9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Transferrin × 1 （P02787） Transferrin-binding protein A × 1 （Q01996） BICARBONATE ION × 1 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9JPI9_NEIME
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 2–693； UniProt 21–712

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yz4
Deposition date deposition_date	2025-10-29
Structure title title	Neisseria gonorrhoeae Transferrin Binding Protein A in complex with Transferrin Binding Protein B and transferrin (iron bound in N lobe only)
Keywords keywords	Membrane protein, metal transporter, iron import, ton B-dependent transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9yz4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9yz4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

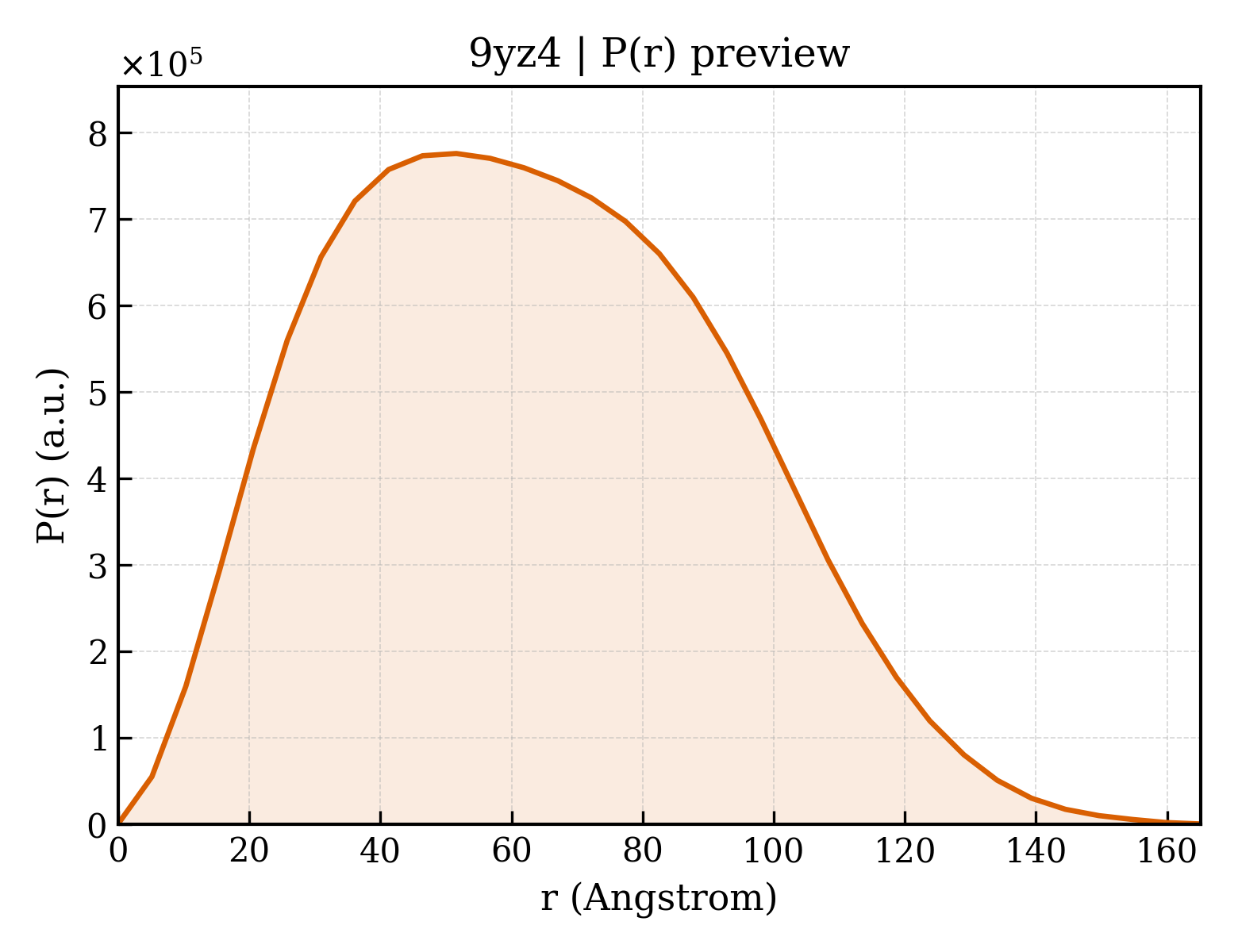

9yz4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.09 Å
Rg (electron density)	49.30 Å
Total Rg	49.21 Å
Atom count	16161
Residues	2074
Excluded volume	283850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9yz4__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Transferrin
Molecular weight formula_weight	77153.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F
Atom count atom_count	16166

MRLAVGALLVCAVLGLCLAVPDKTVRWCAVSEHEATKCQSFRDHMKSVIPSDGPSVACVKKASYLDCIRAIAANEADAVTLDAGLVYDAYLAPNNLKPVVAEFYGSKEDPQTFYYAVAVVKKDSGFQMNQLRGKKSCHTGLGRSAGWNIPIGLLYCDLPEPRKPLEKAVANFFSGSCAPCADGTDFPQLCQLCPGCGCSTLNQYFGYSGAFKCLKDGAGDVAFVKHSTIFENLANKADRDQYELLCLDNTRKPVDEYKDCHLAQVPSHTVVARSMGGKEDLIWELLNQAQEHFGKDKSKEFQLFSSPHGKDLLFKDSAHGFLKVPPRMDAKMYLGYEYVTAIRNLREGTCPEAPTDECKPVKWCALSHHERLKCDEWSVNSVGKIECVSAETTEDCIAKIMNGEADAMSLDGGFVYIAGKCGLVPVLAENYNKSDNCEDTPEAGYFAVAVVKKSASDLTWDNLKGKKSCHTAVGRTAGWNIPMGLLYNKINHCRFDEFFSEGCAPGSKKDSSLCKLCMGSGLNLCEPNNKEGYYGYTGAFRCLVEKGDVAFVKHQTVPQNTGGKNPDPWAKNLNEKDYELLCLDGTRKPVEEYANCHLARAPNHAVVTRKDKEACVHKILRQQQHLFGSNVTDCSGNFCLFRSETKDLLFRDDTVCLAKLHDRNTYEKYLGEEYVKAVGNLRKCSTSSLLEACTFRRP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Transferrin-binding protein A
Molecular weight formula_weight	102036.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

HHHHHHHHHHENLYFQGAMENVQAGQAQEKQLDTIQVKAKKQKTRRDNEVTGLGKLVKTADTLSKEQVLDIRDLTRYDPGIAVVEQGRGASSGYSIRGMDKNRVSLTVDGLAQIQSYTAQAALGGTRTAGSSGAINEIEYENVKAVEISKGSNSVEQGSGALAGSVAFQTKTADDVIGEGRQWGIQSKTAYSGKNRGLTQSIALAGRIGGAEALLIRTGRHAGEIRAHEAAGRGVQSFNRLAPVDDGSKYAYFIVEEECKNGGHEKCKANPKKDVVGEDKRQTVSTRDYTGPNRFLADPLSYESRSWLFRPGFRFENKRHYIGGILERTQQTFDTRDMTVPAFLTKAVFDANQKQAGSLRGNGKYAGNHKYGGLFTSGENNAPVGAEYGTGVFYDETHTKSRYGLEYVYTNADKDTWADYARLSYDRQGIGLDNHFQQTHCSADGSDKYCRPSADKPFSYYKSDRVIYGESHKLLQAAFKKSFDTAKIRHNLSVNLGYDRFGSNLRHQDYYYQSANRAYSLKTPPQNNGKKTSPNGREKNPYWVSIGRGNVVTRQICLFGNNTYTDCTPRSINGKSYYAAVRDNVRLGRWADVGAGLRYDYRSTHSDDGSVSTGTHRTLSWNAGIVLKPADWLDLTYRTSTGFRLPSFAEMYGWRSGDKIKAVKIDPEKSFNKEAGIVFKGDFGNLEASWFNNAYRDLIVRGYEAQIKDGKEQVKGNPAYLNAQSARITGINILGKIDWNGVWDKLPEGWYSTFAYNRVRVRDIKKRADRTDIQSHLFDAIQPSRYVVGSGYDQPEGKWGVNGMLTYSKAKEITELLGSRALLNGNSRNTKATARRTRPWYIVDVSGYYTVKKHFTLRAGVYNLLNHRYVTWENVRQTAAGAVNQHKNVGVYNRYAAPGRNYTFSLEMKF

Source Source

Source organism organism	Neisseria gonorrhoeae
NCBI taxonomy ID ncbi_taxonomy_id	485
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Transferrin-binding protein B
Molecular weight formula_weight	75484.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MCLGGGGSFDLDSVDTEAPRPAPKYQDVFSEKPQAQKDQGGYGFAMRLKRRNWYPQAKEDEVKLDESDWEATGLPDEPKELPKRQKSVIEKVETDSDNNIYSSPYLKPSNHQNGNTGNGINQPKNQAKDYENFKYVYSGWFYKHAKREFNLKVEPKSAKNGDDGYIFYHGKEPSRQLPASGKITYKGVWHFATDTKKGQKFREIIQPSKSQGDRYSGFSGDDGEEYSNKNKSTLTDGQEGYGFTSNLEVDFHNKKLTGKLIRNNANTDNNQATTTQYYSLEAQVTGNRFNGKATATDKPQQNSETKEHPFVSDSSSLSGGFFGPQGEELGFRFLSDDQKVAVVGSAKTKDKPANGNTAAASGGTDAAASNGAAGTSSENGKLTTVLDAVELKLGDKKVQKLDNFSNAAQLVVDGIMIPLLPEASESGNNQANQGTNGGTAFTRKFDHTPESDKKDAQAGTQTNGAQTASNTAGDTNGKTKTYEVEVCCSNLNYLKYGMLTRKNSKSAMQAGESSSQADAKTEQVEQSMFLQGERTDEKEIPSEQNIVYRGSWYGYIANDKSTSWSGNASNATSGNRAEFTVNFADKKITGTLTADNRQEATFTIDGNIKDNGFEGTAKTAESGFDLDQSNTTRTPKAYITDAKVQGGFYGPKAEELGGWFAYPGDKQTKNATNASGNSSATVVFGAKRQQPVQ

Source Source

Source organism organism	Neisseria meningitidis serogroup B
NCBI taxonomy ID ncbi_taxonomy_id	491
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	BICARBONATE ION
Molecular weight formula_weight	61.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.260 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.26 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	30000

Neisseria gonorrhoeae Transferrin Binding Protein A in complex with Transferrin Binding Protein B and transferrin (iron bound in N lobe only)
