9yzo

;Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Even-skipped homeodomain ;

Method: X-RAY DIFFRACTION D_max: 98.5 Å Quality: GOOD

SAXS Profile

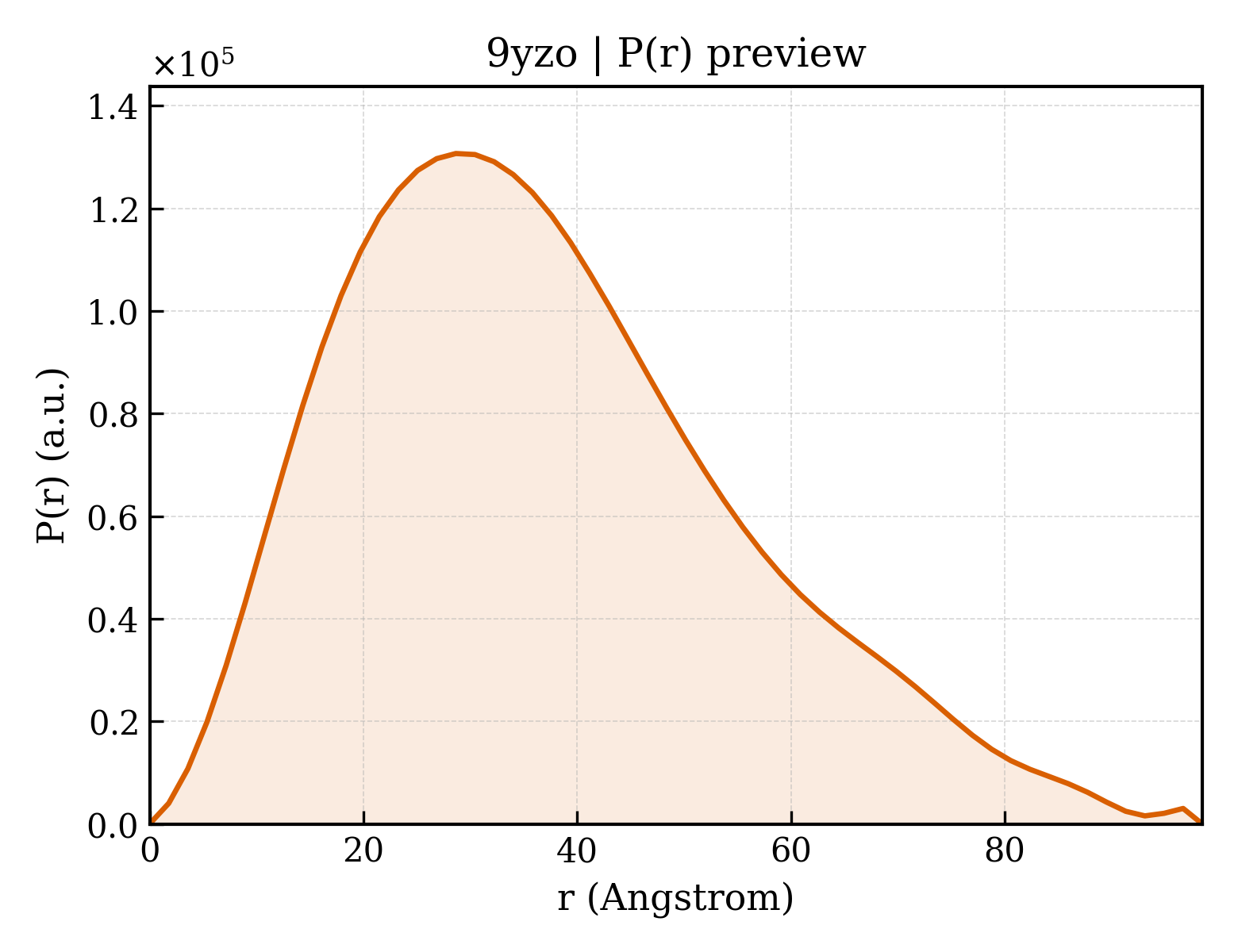

P(r) Distribution

▼

1. Structure Basics

entry_id	9yzo
deposition_date	2025-10-30
last_revision	2026-02-18
title	;Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Even-skipped homeodomain ;
keywords	Protein-DNA complex, DNA Binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.76 Å
rg_electron	27.76 Å
i0	72375400.00
molecular_weight	52731.0 kDa
excluded_volume	59771 Å³
envelope_volume	84065 Å³
shell_volume	27132 Å³
envelope_diameter	102.8 Å
shell_rg	32.46 Å
envelope_rg	28.10 Å
shape_rg	27.69 Å
total_rg	28.32 Å
total_atoms	3645
n_residues	391
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	98.5 Å
rg_real	29.00 Å
rg_real_error	0.94 Å
i0_real	7.2380e+07
i0_real_error	1.1460e+06
rg_reciprocal	28.90 Å
i0_reciprocal	72370000.0000
total_estimate	0.8269
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.6 Å
skewness	0.588
kurtosis	-0.092
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	6355000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.786; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.744; Smooth: 0.643

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9528.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	3645

CCTGTGACAAATTGCCCTGCTTGATGAGCAG

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9537.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

GCTGCTCATCAAGCAGGGCAATTTGTCACAG

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 polymer

description	Segmentation protein even-skipped
formula_weight	7853.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,E

GTGSVRRYRTAFTRDQLGRLEKEFYKENYVSRPRRCELAAQLNLPESTIKVWFQNRRMKDKRQR

Source

organism	Drosophila melanogaster
common_name	fruit fly
ncbi_taxonomy_id	7227
host_organism	Escherichia coli BL21(DE3)

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (2)

▶

length_a	74.105 Å
length_b	118.259 Å
length_c	141.680 Å
angle_alpha	90.00 °
angle_beta	90.89 °
angle_gamma	90.00 °
z_pdb	8

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.960 Å
resolution_low	46.680 Å
r_factor	0.2917
r_work	0.2894
r_free	0.3121

fit	/app/data/saxs_computation/yz/9yzo/9yzo.fit
pddf	/app/data/pr_computation/yz/9yzo/9yzo.pr.out
profile	/app/data/saxs_computation/yz/9yzo/9yzo.dat
