9z0y
;Crystal structure of Neisseria gonorrhoeae penicillin-binding protein 2 from strain FA19 containing seven resistance mutations and three epistatic mutations ;

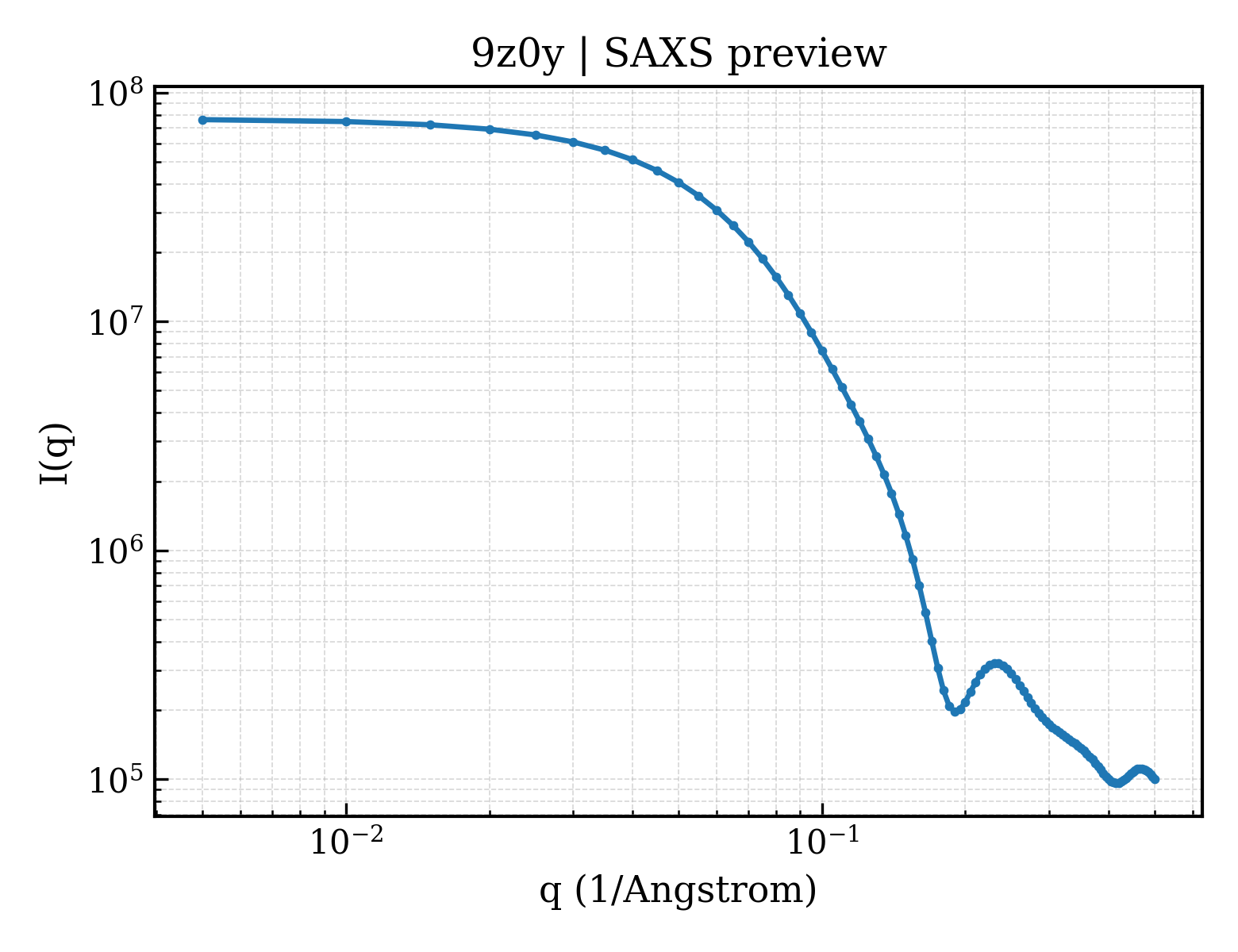

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9z0y |
| deposition_date | 2025-11-03 |
| last_revision | 2026-03-04 |
| title | ;Crystal structure of Neisseria gonorrhoeae penicillin-binding protein 2 from strain FA19 containing seven resistance mutations and three epistatic mutations ; |
| keywords | PENICILLIN-BINDING PROTEIN, TRANSPEPTIDASE DOMAIN, N. GONORRHOEAE, ANTIBIOTIC RESISTANCE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.72 Å |
| rg_electron | 26.90 Å |
| i0 | 76699300.00 |
| molecular_weight | 69169.0 kDa |
| excluded_volume | 87047 ų |
| envelope_volume | 103270 ų |
| shell_volume | 31891 ų |
| envelope_diameter | 92.0 Å |
| shell_rg | 34.37 Å |
| envelope_rg | 27.09 Å |
| shape_rg | 26.91 Å |
| total_rg | 27.64 Å |
| total_atoms | 4872 |
| n_residues | 641 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.3 Å |
| rg_real | 27.73 Å |
| rg_real_error | 0.54 Å |
| i0_real | 7.6700e+07 |
| i0_real_error | 1.1670e+06 |
| rg_reciprocal | 27.73 Å |
| i0_reciprocal | 76700000.0000 |
| total_estimate | 0.8946 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 29.8 Å |
| skewness | 0.349 |
| kurtosis | -0.475 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 20920000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.986 |
