9z72
Structure of V. cholerae CapS (form 1)
SAXS Profile

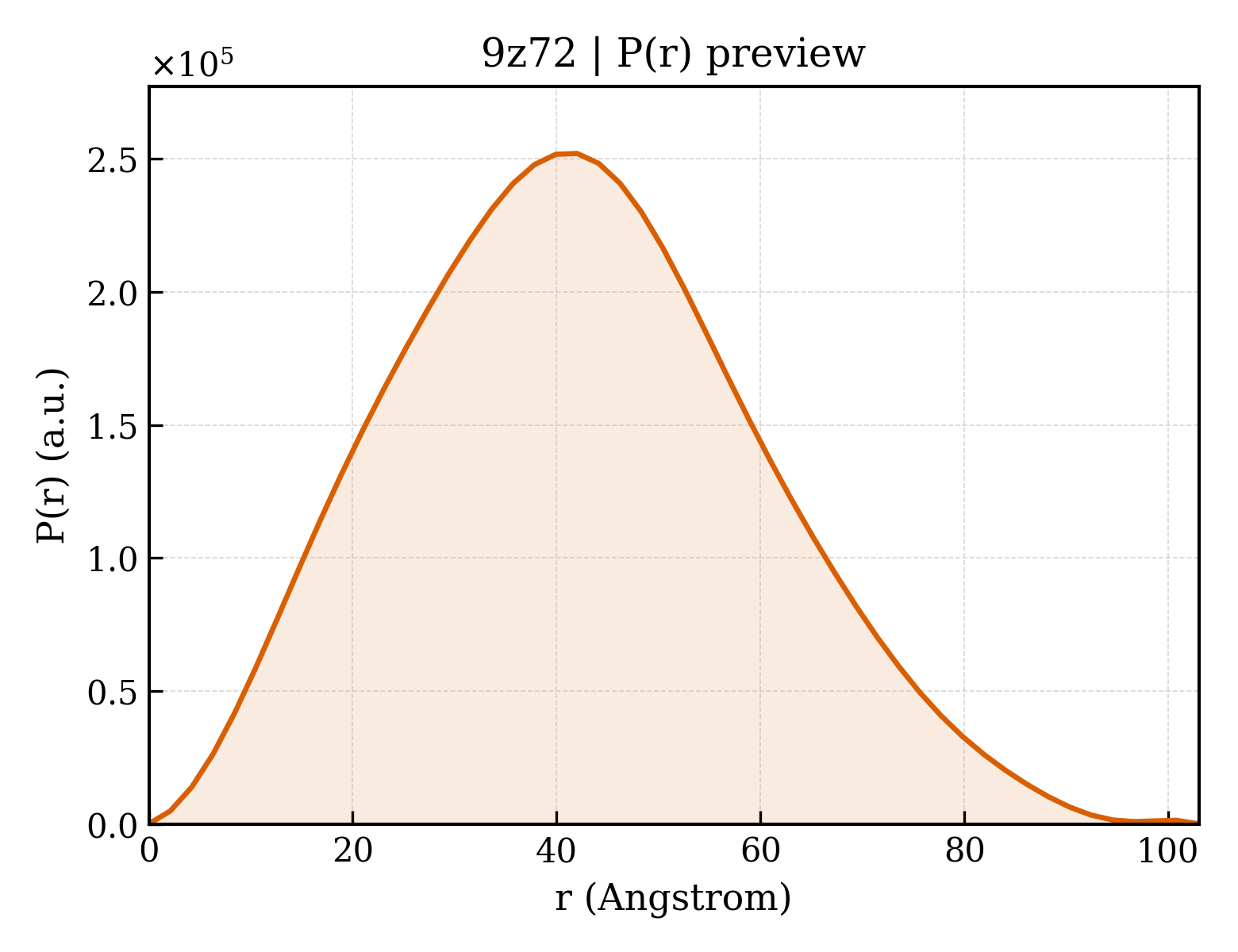

P(r) Distribution
1. Structure Basics
| entry_id | 9z72 |
| deposition_date | 2025-11-15 |
| title | Structure of V. cholerae CapS (form 1) |
| keywords | STAS domain, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.39 Å |
| rg_electron | 31.37 Å |
| i0 | 143161000.00 |
| molecular_weight | 98033.0 kDa |
| excluded_volume | 124250 ų |
| envelope_volume | 161610 ų |
| shell_volume | 42755 ų |
| envelope_diameter | 109.1 Å |
| shell_rg | 38.57 Å |
| envelope_rg | 30.90 Å |
| shape_rg | 31.38 Å |
| total_rg | 32.02 Å |
| total_atoms | 13962 |
| n_residues | 906 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 103.0 Å |
| rg_real | 32.26 Å |
| rg_real_error | 0.66 Å |
| i0_real | 1.4320e+08 |
| i0_real_error | 2.3670e+06 |
| rg_reciprocal | 32.32 Å |
| i0_reciprocal | 143200000.0000 |
| total_estimate | 0.8988 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 42.0 Å |
| skewness | 0.230 |
| kurtosis | -0.376 |
| angular_range | — – 0.2450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 22720000.0000 |
| n_real_points | 50 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.981 |
