9zj4

Crystal structure of SARS-CoV-2 3CL protease in complex with inhibitor IKR-I-45

Method: X-RAY DIFFRACTION D_max: 75.1 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9zj4
deposition_date	2025-12-04
last_revision	2026-06-10
title	Crystal structure of SARS-CoV-2 3CL protease in complex with inhibitor IKR-I-45
keywords	HYDROLASE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.27 Å
rg_electron	21.71 Å
i0	36678300.00
molecular_weight	31114.0 kDa
excluded_volume	29972 Å³
envelope_volume	49243 Å³
shell_volume	19817 Å³
envelope_diameter	76.4 Å
shell_rg	27.46 Å
envelope_rg	21.92 Å
shape_rg	21.71 Å
total_rg	22.26 Å
total_atoms	2338
n_residues	304
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

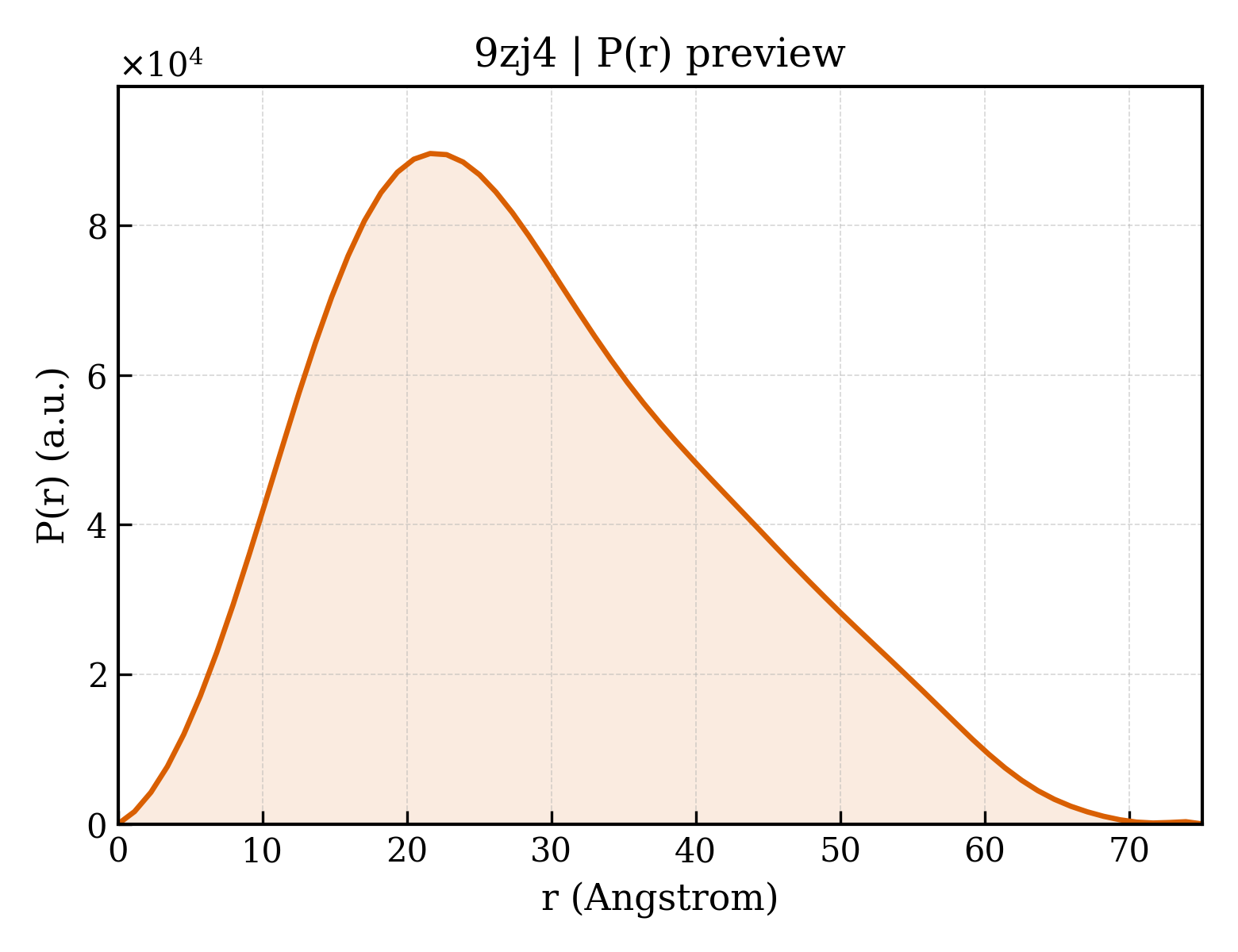

3. P(r) Analysis (GNOM)

dmax	75.1 Å
rg_real	22.37 Å
rg_real_error	0.54 Å
i0_real	3.6680e+07
i0_real_error	4.8030e+05
rg_reciprocal	22.35 Å
i0_reciprocal	36680000.0000
total_estimate	0.8623
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.6 Å
skewness	0.469
kurtosis	-0.395
angular_range	— – 0.3550 Å⁻¹
current_alpha	0.0000
highest_alpha	11900000.0000
n_real_points	67
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.774; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.900; Smooth: 0.983

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	3C-like proteinase
formula_weight	34068.8 kDa
ec_number	3.4.22.69
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2351

SNIGSGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCSGVTF

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	;N~2~-[(2S,4S)-3-benzyl-4-methyl-2-oxo-1,3,2lambda~5~-oxazaphospholidin-2-yl]-N-{(2S)-1-oxo-3-[(3S)-2-oxopyrrolidin-3-yl]propan-2-yl}-L-leucinamide ;
formula_weight	478.5 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	13

▶

6. Citations (1)

▶

length_a	111.258 Å
length_b	54.912 Å
length_c	46.795 Å
angle_alpha	90.00 °
angle_beta	101.89 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.440 Å
resolution_low	49.030 Å
r_factor	0.2132
r_work	0.2106
r_free	0.2656

fit	/app/data/saxs_computation/zj/9zj4/9zj4.fit
pddf	/app/data/pr_computation/zj/9zj4/9zj4.pr.out
profile	/app/data/saxs_computation/zj/9zj4/9zj4.dat
