9zlo
Crystal structure of Proteus mirabilis UreE
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9zlo |
| deposition_date | 2025-12-09 |
| title | Crystal structure of Proteus mirabilis UreE |
| keywords | Nickel, Metallochaperone, Urease Accessory Protein, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.22 Å |
| rg_electron | 22.22 Å |
| i0 | 17613000.00 |
| molecular_weight | 31966.0 kDa |
| excluded_volume | 40191 ų |
| envelope_volume | 51658 ų |
| shell_volume | 19858 ų |
| envelope_diameter | 72.5 Å |
| shell_rg | 28.42 Å |
| envelope_rg | 22.09 Å |
| shape_rg | 22.21 Å |
| total_rg | 23.09 Å |
| total_atoms | 4521 |
| n_residues | 288 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

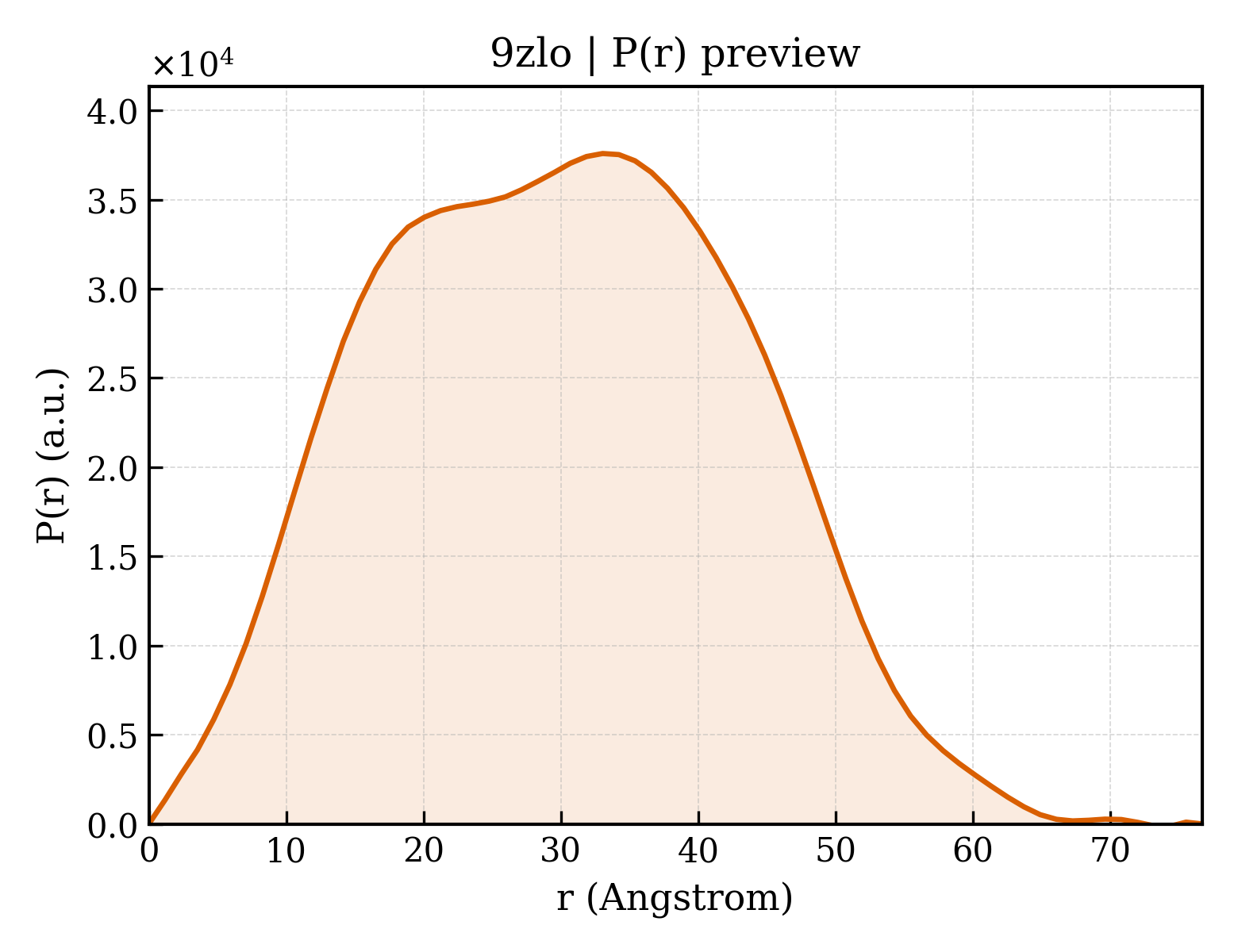

3. P(r) Analysis (GNOM)
| dmax | 76.7 Å |
| rg_real | 23.13 Å |
| rg_real_error | 0.73 Å |
| i0_real | 1.7610e+07 |
| i0_real_error | 2.6770e+05 |
| rg_reciprocal | 23.16 Å |
| i0_reciprocal | 17610000.0000 |
| total_estimate | 0.8131 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 33.0 Å |
| skewness | 0.105 |
| kurtosis | -0.652 |
| angular_range | — – 0.3400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5132000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000 |
