9zmh

Structure of PTP1b complexed with difluoromethylphosphonate inhibitor Compound 30

Method: X-RAY DIFFRACTION D_max: 69.7 Å Quality: GOOD

SAXS Profile

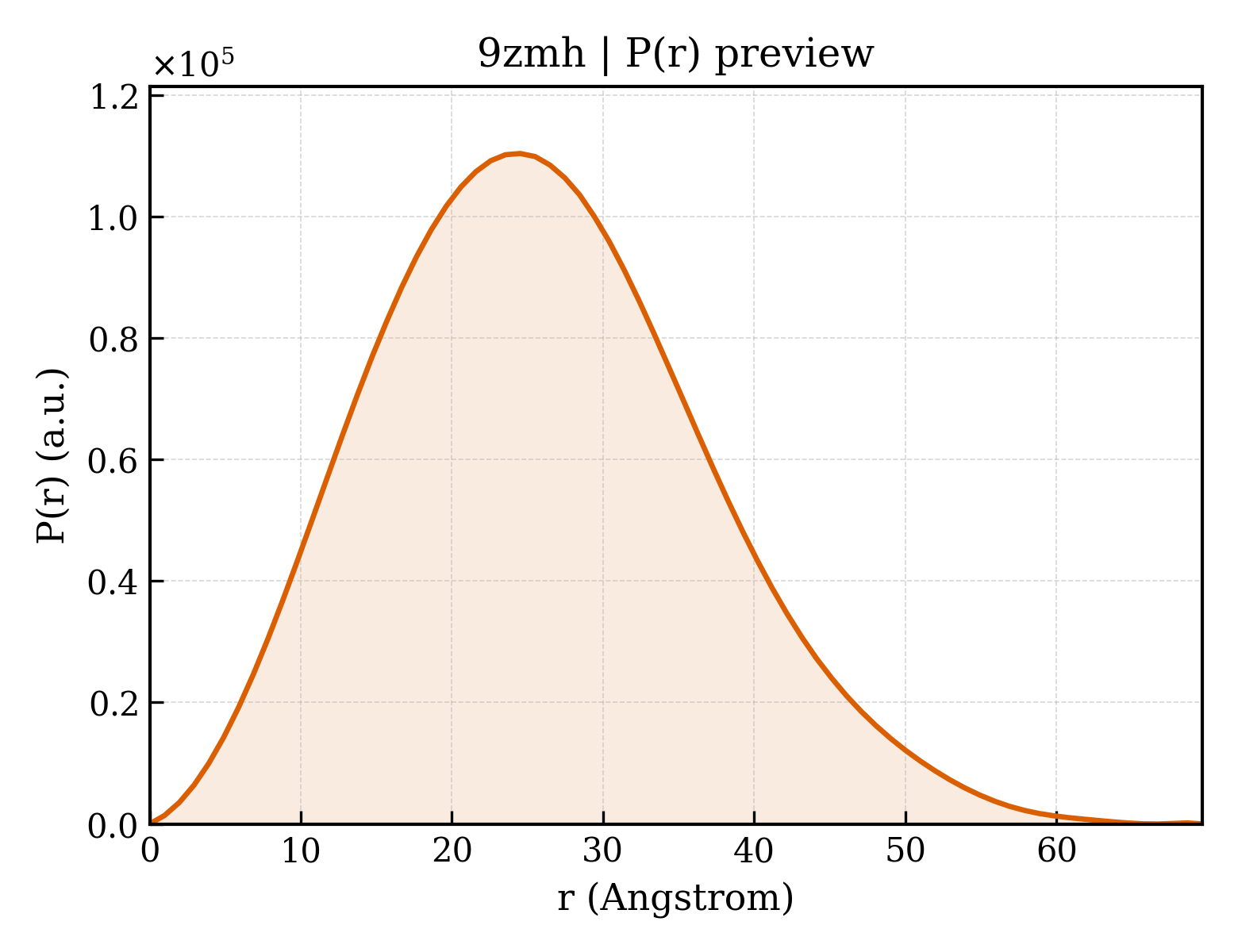

P(r) Distribution

▼

1. Structure Basics

entry_id	9zmh
deposition_date	2025-12-10
last_revision	2026-05-27
title	Structure of PTP1b complexed with difluoromethylphosphonate inhibitor Compound 30
keywords	HYDROLASE-INHIBITOR complex, PTP1B; HYDROLASE/INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.90 Å
rg_electron	19.07 Å
i0	38220800.00
molecular_weight	31767.0 kDa
excluded_volume	30584 Å³
envelope_volume	48667 Å³
shell_volume	21025 Å³
envelope_diameter	70.8 Å
shell_rg	25.93 Å
envelope_rg	19.61 Å
shape_rg	19.06 Å
total_rg	19.77 Å
total_atoms	2392
n_residues	288
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	69.7 Å
rg_real	19.83 Å
rg_real_error	0.43 Å
i0_real	3.8220e+07
i0_real_error	5.2540e+05
rg_reciprocal	19.84 Å
i0_reciprocal	38220000.0000
total_estimate	0.7757
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.5 Å
skewness	0.336
kurtosis	-0.171
angular_range	— – 0.4000 Å⁻¹
current_alpha	0.0000
highest_alpha	9139000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.702; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Tyrosine-protein phosphatase non-receptor type 1
formula_weight	38883.2 kDa
ec_number	3.1.3.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2595

MDYKDDDDKLEFMEMEKEFEQIDKSGSWAAIYQDIRHEASDFPCRVAKLPKNKNRNRYRDVSPFDHSRIKLHQEDNDYINASLIKMEEAQRSYILTQGPLPNTCGHFWEMVWEQKSRGVVMLNRVMEKGSLKCAQYWPQKEEKEMIFEDTNLKLTLISEDIKSYYTVRQLELENLTTQETREILHFHYTTWPDFGVPESPASFLNFLFKVRESGSLSPEHGPVVVHCSAGIGRSGTFCLADTCLLLMDKRKDPSSVDIKKVLLEMRKFRMGLIQTADQLRFSYLAVIEGAKFIMGDSSVQDQWKELSHEDLEPPPEHIPPPPRPPKRILEPHN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	{[3-bromo-7-(3-hydroxy-3-methylbutoxy)-5-{[(pyridazin-3-yl)methyl]carbamoyl}-1-benzothiophen-2-yl]di(fluoro)methyl}phosphonic acid
formula_weight	580.3 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	203

▶

6. Citations (1)

▶

length_a	89.008 Å
length_b	89.008 Å
length_c	105.662 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	1.939 Å
resolution_low	77.080 Å
r_factor	0.2037
r_work	0.2020
r_free	0.2356
