SAXSdb — 2b4s

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2b4s
沉积日期 deposition_date	2005-09-26
结构标题 title	Crystal structure of a complex between PTP1B and the insulin receptor tyrosine kinase
关键词 keywords	Hydrolase/transferase, phosphorylation, tyrosine protein kinase, Hydrolase-transferase complex; Hydrolase/transferase
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.41 Å
回转半径 Rg (电子) rg_electron	41.49 Å
零角强度 I(0) i0	275149000.00
分子量 molecular_weight	132160.0 kDa
排除体积 excluded_volume	164070 Å³
包络体积 envelope_volume	220900 Å³
水化壳体积 shell_volume	47637 Å³
包络直径 envelope_diameter	143.0 Å
壳层 Rg shell_rg	43.06 Å
包络 Rg envelope_rg	40.88 Å
形状 Rg shape_rg	41.50 Å
总 Rg total_rg	41.55 Å
总原子数 total_atoms	9264
残基数 n_residues	1155
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	142.0 Å
Rg (实空间) rg_real	41.74 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	2.7510e+08
I(0) 误差 (实空间) i0_real_error	4.5170e+06
Rg (倒空间) rg_reciprocal	41.42 Å
I(0) (倒空间) i0_reciprocal	275100000.0000
解质量估计 total_estimate	0.8180
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	37.4 Å
偏度 Skewness skewness	0.518
峰度 Kurtosis kurtosis	-0.387
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	50100000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.840; Smooth: 0.478

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Tyrosine-protein phosphatase, non-receptor type 1
分子量 formula_weight	34688.5 kDa
EC 编号 ec_number	3.1.3.48
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	9641

MEMEKEFEQIDKSGSWAAIYQDIRHEASDFPCRVAKLPKNKNRNRYRDVSPFDHSRIKLHQEDNDYINASLIKMEEAQRSYILTQGPLPNTCGHFWEMVWEQKSRGVVMLNRVMEKGSLKCAQYWPQKEEKEMIFEDTNLKLTLISEDIKSYYTVRQLELENLTTQETREILHFHYTTWPDFGVPESPASFLNFLFKVRESGSLSPEHGPVVVHASAGIGRSGTFCLADTCLLLMDKRKDPSSVDIKKVLLEMRKFRMGLIQTADQLRFSYLAVIEGAKFIMGDSSVQDQWKELSHED

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Insulin receptor
分子量 formula_weight	35033.7 kDa
EC 编号 ec_number	2.7.1.112
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

VFPSSVYVPDEWEVSREKITLLRELGQGSFGMVYEGNARDIIKGEAETRVAVKTVNESASLRERIEFLNEASVMKGFTCHHVVRLLGVVSKGQPTLVVMELMAHGDLKSYLRSLRPEAENNPGRPPPTLQEMIQMAAEIADGMAYLNAKKFVHRDLAARNCMVAHDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMAPESLKDGVFTTSSDMWSFGVVLWEITSLAEQPYQGLSNEQVLKFVMDGGYLDQPDNCPERVTDLMRMCWQFNPNMRPTFLEIVNLLKDDLHPSFPEVSFFHSEENK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	377

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2b4sa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
超家族 Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
家族 Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

结构域编号 domain_id	d2b4sb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2b4sc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
超家族 Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
家族 Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

结构域编号 domain_id	d2b4sd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (6 domains)

结构域编号 domain_id	2b4sA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

结构域编号 domain_id	2b4sB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2b4sB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2b4sC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

结构域编号 domain_id	2b4sD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2b4sD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	87.472 Å
晶胞边长 b length_b	88.165 Å
晶胞边长 c length_c	178.040 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	29.490 Å
R 因子 r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2390

fit	/app/data/saxs_computation/b4/2b4s/2b4s.fit
pddf	/app/data/pr_computation/b4/2b4s/2b4s.pr.out
profile	/app/data/saxs_computation/b4/2b4s/2b4s.dat

Crystal structure of a complex between PTP1B and the insulin receptor tyrosine kinase

SAXS 散射曲线 SAXS Profile

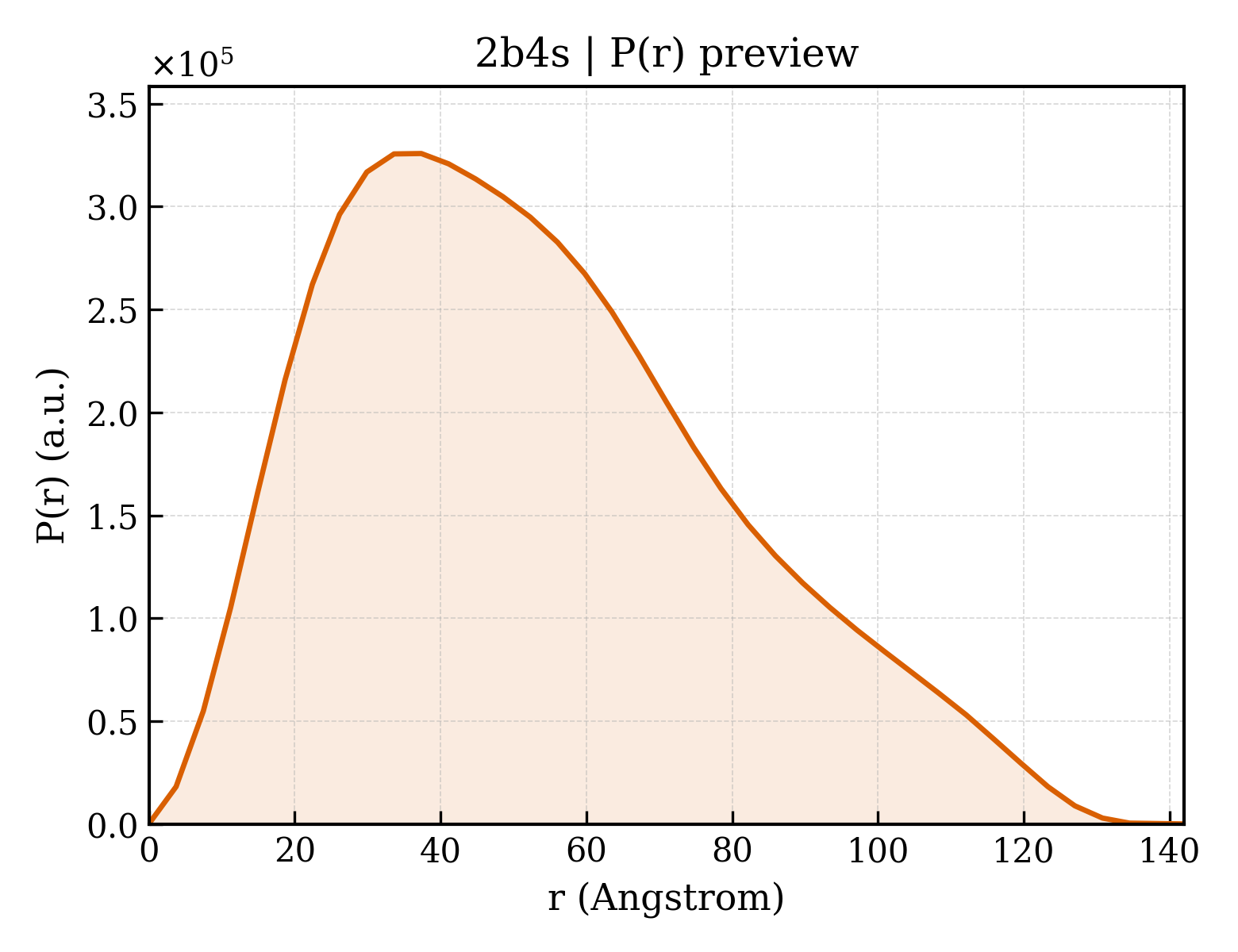

P(r) 距离分布 P(r) Distribution
