2hr7

Insulin receptor (domains 1-3)

Method: X-RAY DIFFRACTION D_max: 135.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 11 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 28–512 Chain B； UniProt 28–512	Fragment：Domains 1-3 (residues 28-512)	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 SO4 SULFATE ION × 8 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 GOL GLYCEROL × 19	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；291 K；1.5-1.65 M ammonium sulfate, 2 % PEG 400, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K, pH 8.50	Resolution 2.32 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2HR7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GAG CRYSTAL STRUCTURE OF THE INSULIN RECEPTOR KINASE IN COMPLEX WITH A BISUBSTRATE INHIBITOR Deposited 2000-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1005–1310（306 aa） Fragment：TYROSINE KINASE DOMAIN	Mutation：C981S, Y984F Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2 112 THIOPHOSPHORIC ACID O-((ADENOSYL-PHOSPHO)PHOSPHO)-S-ACETAMIDYL-DIESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 8000, Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.269
1GAG CRYSTAL STRUCTURE OF THE INSULIN RECEPTOR KINASE IN COMPLEX WITH A BISUBSTRATE INHIBITOR Deposited 2000-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1005–1310（306 aa） Fragment：TYROSINE KINASE DOMAIN	Mutation：C981S, Y984F Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 112 THIOPHOSPHORIC ACID O-((ADENOSYL-PHOSPHO)PHOSPHO)-S-ACETAMIDYL-DIESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 8000, Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.269
1I44 CRYSTALLOGRAPHIC STUDIES OF AN ACTIVATION LOOP MUTANT OF THE INSULIN RECEPTOR TYROSINE KINASE Deposited 2001-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa） Fragment：TYROSINE KINASE DOMAIN	Mutation：C981S, Y984PHE, D1161A	MG MAGNESIUM ION × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 8000, Tris-HCl, NaCl, dithiothreitol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.268
1IR3 PHOSPHORYLATED INSULIN RECEPTOR TYROSINE KINASE IN COMPLEX WITH PEPTIDE SUBSTRATE AND ATP ANALOG Deposited 1997-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1005–1310（306 aa） Fragment：TYROSINE KINASE DOMAIN	Mutation：C981S, Y984F Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；22% PEG 8000, 100 MM TRIS-HCL, PH 7.5, 2% ETHYLENE GLYCOL	Resolution 1.90 Å R-free 0.226
1IRK CRYSTAL STRUCTURE OF THE TYROSINE KINASE DOMAIN OF THE HUMAN INSULIN RECEPTOR Deposited 1995-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa）	Not recorded	EMC ETHYL MERCURY ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.232
1P14 Crystal structure of a catalytic-loop mutant of the insulin receptor tyrosine kinase Deposited 2003-04-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 993–1298（306 aa） Fragment：tyrosine kinase domain, residues 978-1283	Mutation：C981S, D1132N	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 1.90 Å R-free 0.240
1RQQ Crystal Structure of the Insulin Receptor Kinase in Complex with the SH2 Domain of APS Deposited 2003-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1005–1310（306 aa） Fragment：Kinase domain Chain B 1005–1310（306 aa） Fragment：Kinase domain	Mutation：C980S, K1251N Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C980S, K1251N Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 2 112 THIOPHOSPHORIC ACID O-((ADENOSYL-PHOSPHO)PHOSPHO)-S-ACETAMIDYL-DIESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.60 Å R-free 0.277
2AUH Crystal structure of the Grb14 BPS region in complex with the insulin receptor tyrosine kinase Deposited 2005-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1005–1310（306 aa） Fragment：tyrosine kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.254
2B4S Crystal structure of a complex between PTP1B and the insulin receptor tyrosine kinase Deposited 2005-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1005–1310（306 aa） Fragment：Protein kinase Chain D 1005–1310（306 aa） Fragment：Protein kinase	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM Tris-HCl, 1.9 M ammonium sulfate, 2% PEG 400, pH 7.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.239
2MFR Solution structure of the transmembrane domain of the insulin receptor in micelles Deposited 2013-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 940–988（49 aa） Fragment：UNP residues 940-988	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；313 K；Ionic strength (raw mmCIF value) 20；Pressure ambient NMR sample composition 0.2-0.4 mM [U-100% 15N] protein-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.2-0.4 mM [U-100% 13C; U-100% 15N] protein-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2Z8C Phosphorylated insulin receptor tyrosine kinase in complex with (4-{[5-carbamoyl-4-(3-methylanilino)pyrimidin-2-yl]amino}phenyl)acetic acid Deposited 2007-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1008–1310（303 aa） Fragment：TYROSINE KINASE DOMAIN	Mutation：C981S, Y984F Non-standard monomer：Yes (specific site not provided by mmCIF)	S91 [4-({5-(AMINOCARBONYL)-4-[(3-METHYLPHENYL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；PEG 3350, VAPOR DIFFUSION, HANGING DROP	Resolution 3.25 Å R-free 0.292
3BU3 Crystal structure of the insulin receptor kinase in complex with IRS2 KRLB peptide Deposited 2007-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1005–1310（306 aa） Fragment：protein kinase	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；28% PEG8000 0.1 M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.220
3BU5 Crystal structure of the insulin receptor kinase in complex with IRS2 KRLB peptide and ATP Deposited 2007-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1005–1310（306 aa） Fragment：protein kinase	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；28% PEG8000 0.1 M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.239
3BU6 Crystal structure of the insulin receptor kinase in complex with IRS2 KRLB phosphopeptide Deposited 2007-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1005–1310（306 aa） Fragment：protein kinase	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；28% PEG8000 0.1 M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.95 Å R-free 0.239
3EKK Insulin receptor kinase complexed with an inhibitor Deposited 2008-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa） Fragment：kinase domain	Mutation：C1008S, D1159N	GS2 2-[(2-{[1-(N,N-dimethylglycyl)-5-methoxy-1H-indol-6-yl]amino}-7H-pyrrolo[2,3-d]pyrimidin-4-yl)amino]-6-fluoro-N-methylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；0.1 M MOPS, 1.0 M Na3citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.10 Å R-free 0.260
3EKN Insulin receptor kinase complexed with an inhibitor Deposited 2008-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa） Fragment：kinase domain	Mutation：C1008S, D1159N	GS3 2-fluoro-6-{[2-({2-methoxy-4-[4-(1-methylethyl)piperazin-1-yl]phenyl}amino)-7H-pyrrolo[2,3-d]pyrimidin-4-yl]amino}benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；0.1 M MOPS, 1.0 M Na3citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.20 Å R-free 0.274
3ETA Kinase domain of insulin receptor complexed with a pyrrolo pyridine inhibitor Deposited 2008-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1017–1322（306 aa） Fragment：kinase domain	Not recorded	351 1-(3-{5-[4-(aminomethyl)phenyl]-1H-pyrrolo[2,3-b]pyridin-3-yl}phenyl)-3-(2-phenoxyphenyl)urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；0.1 M MOPS pH 7.0, 1.1 M sodium citrate, 1% Jeffamine M89, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.60 Å R-free 0.232
3ETA Kinase domain of insulin receptor complexed with a pyrrolo pyridine inhibitor Deposited 2008-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1017–1322（306 aa） Fragment：kinase domain	Not recorded	351 1-(3-{5-[4-(aminomethyl)phenyl]-1H-pyrrolo[2,3-b]pyridin-3-yl}phenyl)-3-(2-phenoxyphenyl)urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；0.1 M MOPS pH 7.0, 1.1 M sodium citrate, 1% Jeffamine M89, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.60 Å R-free 0.232
3ETA Kinase domain of insulin receptor complexed with a pyrrolo pyridine inhibitor Deposited 2008-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1017–1322（306 aa） Fragment：kinase domain Chain B 1017–1322（306 aa） Fragment：kinase domain	Not recorded	351 1-(3-{5-[4-(aminomethyl)phenyl]-1H-pyrrolo[2,3-b]pyridin-3-yl}phenyl)-3-(2-phenoxyphenyl)urea × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；0.1 M MOPS pH 7.0, 1.1 M sodium citrate, 1% Jeffamine M89, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.60 Å R-free 0.232
3W11 Insulin receptor ectodomain construct comprising domains L1-CR in complex with human insulin, Alpha-CT peptide(704-719) and FAB 83-7 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：UNP residues 28-337 Chain F 731–746（16 aa） Fragment：UNP residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.9-1.1M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE-HCL, 0.02% SODIUM AZIDE, PH 8.0	Resolution 3.90 Å R-free 0.292
3W12 Insulin receptor ectodomain construct comprising domains L1-CR in complex with high-affinity insulin analogue [D-PRO-B26]-DTI-NH2, alpha-CT peptide(704-719) and FAB 83-7 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：UNP residues 28-337 Chain F 731–746（16 aa） Fragment：UNP residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.9-1.1M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE-HCL, 0.02% SODIUM AZIDE, PH 8.0	Resolution 4.30 Å R-free 0.349
3W13 Insulin receptor ectodomain construct comprising domains L1-CR in complex with high-affinity insulin analogue [D-PRO-B26]-DTI-NH2, alphact peptide(693-719) and FAB 83-7 Deposited 2012-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：UNP residues 28-337 Chain F 724–746（23 aa） Fragment：UNP residues 724-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.9-1.1M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE-HCL, 0.02% SOIDUM AZIDE, PH 8.0	Resolution 4.30 Å R-free 0.335
4IBM Crystal structure of insulin receptor kinase domain in complex with an inhibitor Irfin-1 Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa）	Mutation：K1278N	IR1 5-(2-phenylpyrazolo[1,5-a]pyridin-3-yl)-3H-pyrazolo[3,4-c]pyridazin-3-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.1 M Sodium cacodylate pH 6.5, 23% PEG-4000, 10% Ethylene glycol, and 0.03 M Glycyl-glycyl-glycine, VAPOR DIFFUSION, temperature 293K	Resolution 1.80 Å R-free 0.218
4IBM Crystal structure of insulin receptor kinase domain in complex with an inhibitor Irfin-1 Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1005–1310（306 aa）	Mutation：K1278N	IR1 5-(2-phenylpyrazolo[1,5-a]pyridin-3-yl)-3H-pyrazolo[3,4-c]pyridazin-3-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.1 M Sodium cacodylate pH 6.5, 23% PEG-4000, 10% Ethylene glycol, and 0.03 M Glycyl-glycyl-glycine, VAPOR DIFFUSION, temperature 293K	Resolution 1.80 Å R-free 0.218
4OGA Insulin in complex with Site 1 of the human insulin receptor Deposited 2014-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：L1-CR, UNP residues 28-377 Chain F 731–746（16 aa） Fragment：alpha-CT peptide, UNP residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.9-1.1M TRI-SODIUM CITRATE, 0.1M IMIDAZOLE-HCL, 0.02% SODIUM AZIDE, PH 8.0 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.284
4XLV Crystal structure of the activated insulin receptor tyrosine kinase dimer Deposited 2015-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 983–1310（328 aa） Fragment：UNP residues 983-1310	Mutation：Y965F, C981S Non-standard monomer：Yes (specific site not provided by mmCIF)	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；100 mM Tris-HCl, pH 7.5, 26% (w/v) polyethylene glycol (PEG) 4000, 200 mM MgCl2, and 5 mM DTT	Resolution 2.30 Å R-free 0.266
4XSS Insulin-like growth factor I in complex with site 1 of a hybrid insulin receptor / Type 1 insulin-like growth factor receptor Deposited 2015-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 28–337（310 aa） Fragment：L1-CR, UNP residues 28-377	Not recorded	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10.5；298 K；1.75 M ammonium sulfate, 0.1 M CAPS-NaOH (pH 10.5), 0.2 M LiSO4	Resolution 3.00 Å R-free 0.229
4XSS Insulin-like growth factor I in complex with site 1 of a hybrid insulin receptor / Type 1 insulin-like growth factor receptor Deposited 2015-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain E 28–337（310 aa） Fragment：L1-CR, UNP residues 28-377	Not recorded	SO4 SULFATE ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10.5；298 K；1.75 M ammonium sulfate, 0.1 M CAPS-NaOH (pH 10.5), 0.2 M LiSO4	Resolution 3.00 Å R-free 0.229
4XST Structure of the endoglycosidase-H treated L1-CR domains of the human insulin receptor in complex with residues 697-719 of the human insulin receptor (A-isoform) Deposited 2015-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 28–337（310 aa） Fragment：L1-CR, UNP residues 28-377	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.45 M (NH4)2SO4 + 10 % glycerol	Resolution 3.00 Å R-free 0.262
4XST Structure of the endoglycosidase-H treated L1-CR domains of the human insulin receptor in complex with residues 697-719 of the human insulin receptor (A-isoform) Deposited 2015-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain E 28–337（310 aa） Fragment：L1-CR, UNP residues 28-377	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18 SO4 SULFATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.45 M (NH4)2SO4 + 10 % glycerol	Resolution 3.00 Å R-free 0.262
4ZXB Structure of the human insulin receptor ectodomain, IRDeltabeta construct, in complex with four Fab molecules Deposited 2015-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain E 28–944（917 aa）	Mutation：Y144H, V731A, T732G, V733N, A734N, residues 735-753 deleted	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Crystals were produced by vapour diffusion using 1 microlitre of the complex (2.6 mg/ml) in 10 mM HEPES (pH 7.5), 0.02% sodium azide and 10% D-trehalose solution and 1 microlitres of well solution containing 10% PEG 8000, 0.1 M MES (pH 6.5) and 0.1 M MgAc2.	Resolution 3.30 Å R-free 0.237
5E1S The Crystal structure of INSR Tyrosine Kinase in complex with the Inhibitor BI 885578 Deposited 2015-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa）	Not recorded	5JA (5R)-N-(1-{2-[4-(2-methoxyethyl)piperazin-1-yl]ethyl}-1H-pyrazol-3-yl)-5,8-dimethyl-9-phenyl-6,8-dihydro-5H-pyrazolo[3,4-h]quinazolin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；293 K；25% PEG 8000, 0.1M TRIS pH 7.3, 50mM NaCl, 5 mM DTT	Resolution 2.26 Å R-free 0.262
5HHW Crystal structure of insulin receptor kinase domain in complex with cis-(R)-7-(3-(azetidin-1-ylmethyl)cyclobutyl)-5-(3-((tetrahydro-2H-pyran-2-yl)methoxy)phenyl)-7H-pyrrolo[2,3-d]pyrimidin-4-amine. Deposited 2016-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa） Fragment：Kinase domain, residues 1005-1310	Mutation：C1008S, D1159N	60O 7-[3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-[[(2~{R})-oxan-2-yl]methoxy]phenyl]pyrrolo[2,3-d]pyrimidin-4-amine × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；18% Peg3000, 0.1M Tris pH7.5	Resolution 1.79 Å R-free 0.198
5J3H Human insulin receptor domains L1-CR in complex with peptide S519C16 and 83-7 Fv Deposited 2016-03-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 28–337（310 aa） Fragment：UNP residues 28-337	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；300 K；1.75 M (NH4)2HPO4	Resolution 3.27 Å R-free 0.248
5KQV Insulin receptor ectodomain construct comprising domains L1,CR,L2, FnIII-1 and alphaCT peptide in complex with bovine insulin and FAB 83-14 (REVISED STRUCTURE) Deposited 2016-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: eicosameric	Chain E 28–620（593 aa） Chain E 731–746（16 aa） Chain F 28–620（593 aa） Chain F 731–746（16 aa）	Mutation：Y144H,Y144H Mutation：Y144H,Y144H Mutation：Y144H,Y144H Mutation：Y144H,Y144H	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；9% POLYETHYLENE GLYCOL 3350, 200MM PROLINE, 100MM HEPES/NAOH, PH 7.5	Resolution 4.40 Å R-free 0.266
5U1M Structure of the IRS-1 PTB Domain Bound to the Juxtamembrane Region of the Insulin Receptor Deposited 2016-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 991–999（9 aa） Fragment：juxtamembrane region (UNP residues 991-999)	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；ammonium sulfate	Resolution 1.80 Å
6CE7 Insulin Receptor ectodomain in complex with one insulin molecule Deposited 2018-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–956（929 aa） Fragment：residues 28-956 Chain B 28–956（929 aa） Fragment：residues 28-956 Chain P 718–747（30 aa） Fragment：residues 718-747	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Hepes Saline (HBS) cryo-EM vitrification conditions Cryogen ETHANE；Grids made with SpotItOn	Resolution 7.40 Å
6CE9 Insulin Receptor ectodomain in complex with two insulin molecules Deposited 2018-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain A 28–944（917 aa） Fragment：Ectodomain residues 28-944 Chain B 28–944（917 aa） Fragment：Ectodomain residues 28-944 Chain M 718–747（30 aa） Fragment：residues 718-747 Chain P 718–747（30 aa） Fragment：residues 718-747	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Hepes Saline (HBS) cryo-EM vitrification conditions Cryogen ETHANE；Grids made with SpotItOn	Resolution 4.30 Å
6CEB Insulin Receptor ectodomain in complex with two insulin molecules - C1 symmetry Deposited 2018-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain A 28–944（917 aa） Fragment：Ectodomain residues 28-944 Chain B 28–944（917 aa） Fragment：Ectodomain residues 28-944 Chain M 718–747（30 aa） Fragment：residues 718-747 Chain P 718–747（30 aa） Fragment：residues 718-747	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Hepes Saline (HBS) cryo-EM vitrification conditions Cryogen ETHANE；Grids made with SpotItOn	Resolution 4.70 Å
6HN4 Leucine-zippered human insulin receptor ectodomain with single bound insulin - "lower" membrane-proximal part Deposited 2018-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 28–761（734 aa） Chain E 781–943（163 aa） Chain F 28–761（734 aa） Chain F 781–943（163 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
6HN5 Leucine-zippered human insulin receptor ectodomain with single bound insulin - "upper" membrane-distal part Deposited 2018-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 28–761（734 aa） Chain E 781–943（163 aa） Chain F 28–761（734 aa） Chain F 781–943（163 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6PXV Cryo-EM structure of full-length insulin receptor bound to 4 insulin. 3D refinement was focused on the extracellular region. Deposited 2019-07-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 28–1370（1343 aa） Chain C 28–1370（1343 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6PXW Cryo-EM structure of full-length insulin receptor bound to 4 insulin. 3D refinement was focused on the top part of the receptor complex. Deposited 2019-07-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 28–1370（1343 aa） Chain B 28–1370（1343 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
6SOF human insulin receptor ectodomain bound by 4 insulin Deposited 2019-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 28–746（719 aa） Chain B 783–944（162 aa） Chain C 28–746（719 aa） Chain D 783–944（162 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.30 Å
6VEP Human insulin in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：residues 28-337 Chain F 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；Protein: 4.5 mg/ml in 10 mM HEPES pH 7.5 Well condition: 16% PEG 3350, 0.2 M sodium thiocyanate	Resolution 2.90 Å R-free 0.225
6VEP Human insulin in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 28–337（310 aa） Fragment：residues 28-337 Chain L 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；Protein: 4.5 mg/ml in 10 mM HEPES pH 7.5 Well condition: 16% PEG 3350, 0.2 M sodium thiocyanate	Resolution 2.90 Å R-free 0.225
6VEP Human insulin in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain Q 28–337（310 aa） Fragment：residues 28-337 Chain R 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；Protein: 4.5 mg/ml in 10 mM HEPES pH 7.5 Well condition: 16% PEG 3350, 0.2 M sodium thiocyanate	Resolution 2.90 Å R-free 0.225
6VEP Human insulin in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain W 28–337（310 aa） Fragment：residues 28-337 Chain X 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；Protein: 4.5 mg/ml in 10 mM HEPES pH 7.5 Well condition: 16% PEG 3350, 0.2 M sodium thiocyanate	Resolution 2.90 Å R-free 0.225
6VEQ Con-Ins G1 in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–337（310 aa） Fragment：residues 28-337 Chain F 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；1.7 M ammonium sulphate 50 mM MOPS-NaOH (pH 7.0)	Resolution 3.25 Å R-free 0.277
6VEQ Con-Ins G1 in complex with the human insulin microreceptor in turn in complex with Fv 83-7 Deposited 2020-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 28–337（310 aa） Fragment：residues 28-337 Chain L 731–746（16 aa） Fragment：residues 731-746	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；1.7 M ammonium sulphate 50 mM MOPS-NaOH (pH 7.0)	Resolution 3.25 Å R-free 0.277
7BW7 Cryo-EM Structure for the Ectodomain of the Full-length Human Insulin Receptor in Complex with 1 Insulin. Deposited 2020-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–1382（1355 aa） Chain C 28–1382（1355 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7BW8 Cryo-EM Structure for the Insulin Binding Region in the Ectodomain of the Full-length Human Insulin Receptor in Complex with 1 Insulin Deposited 2020-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–1382（1355 aa） Chain C 28–1382（1355 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7BWA Cryo-EM Structure for the Ectodomain of the Full-length Human Insulin Receptor in Complex with 2 Insulin Deposited 2020-04-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–1382（1355 aa） Fragment：UNP residues 28-1382	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
7BWA Cryo-EM Structure for the Ectodomain of the Full-length Human Insulin Receptor in Complex with 2 Insulin Deposited 2020-04-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 28–1382（1355 aa） Fragment：UNP residues 28-1382	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
7KD6 Insulin Receptor L1-CR plus alphaCT fragment in co-complex with Fv 83-7 and single-chain insulin SCI-b Deposited 2020-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 28–337（310 aa）	Mutation：Y171H	SO4 SULFATE ION × 1 GOL GLYCEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；16% PEG 3350, 0.2 M sodium thiocyanate (NaSCN), 0.02% sodium azide (NaN3)	Resolution 2.60 Å R-free 0.221
7KD6 Insulin Receptor L1-CR plus alphaCT fragment in co-complex with Fv 83-7 and single-chain insulin SCI-b Deposited 2020-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 28–337（310 aa）	Mutation：Y171H	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；16% PEG 3350, 0.2 M sodium thiocyanate (NaSCN), 0.02% sodium azide (NaN3)	Resolution 2.60 Å R-free 0.221
7KD6 Insulin Receptor L1-CR plus alphaCT fragment in co-complex with Fv 83-7 and single-chain insulin SCI-b Deposited 2020-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain Q 28–337（310 aa）	Mutation：Y171H	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；16% PEG 3350, 0.2 M sodium thiocyanate (NaSCN), 0.02% sodium azide (NaN3)	Resolution 2.60 Å R-free 0.221
7KD6 Insulin Receptor L1-CR plus alphaCT fragment in co-complex with Fv 83-7 and single-chain insulin SCI-b Deposited 2020-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain W 28–337（310 aa）	Mutation：Y171H	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；16% PEG 3350, 0.2 M sodium thiocyanate (NaSCN), 0.02% sodium azide (NaN3)	Resolution 2.60 Å R-free 0.221
7MD4 Insulin receptor ectodomain dimer complexed with two IRPA-3 partial agonists Deposited 2021-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 28–944（917 aa） Fragment：extracellular domain Chain B 28–944（917 aa） Fragment：extracellular domain Chain M 721–747（27 aa） Fragment：C-terminal helix Chain N 721–747（27 aa） Fragment：C-terminal helix	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7MD5 Insulin receptor ectodomain dimer complexed with two IRPA-9 partial agonists Deposited 2021-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 28–944（917 aa） Fragment：extracellular domain Chain B 28–944（917 aa） Fragment：extracellular domain Chain M 721–747（27 aa） Fragment：C-terminal helix Chain N 721–747（27 aa） Fragment：C-terminal helix	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.20 Å
7MQO The insulin receptor ectodomain in complex with a venom hybrid insulin analog - "head" region Deposited 2021-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–944（917 aa） Fragment：Ectodomain, UNP residues 28-944 Chain F 28–944（917 aa） Fragment：Ectodomain, UNP residues 28-944	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 8；Equal parts HBS( 50 mM HEPES pH 7.5, 150 mM NaCl ) and TBS (25 mM Tris pH 8.5, 150 mM NaCl) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7MQR The insulin receptor ectodomain in complex with four venom hybrid insulins - symmetric conformation Deposited 2021-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 28–943（916 aa） Fragment：Ectodomain, UNP residues 28-943 Chain F 28–943（916 aa） Fragment：Ectodomain, UNP residues 28-943	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20	ELECTRON MICROSCOPY cryo-EM buffer pH 8；Equal parts HBS(50 mM HEPES pH 7.5, 150 mM NaCl ) and TBS (25 mM Tris pH 8.5, 150 mM NaCl) cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7PG0 Low resolution Cryo-EM structure of full-length insulin receptor bound to 3 insulin with visible ddm micelle, conf 1 Deposited 2021-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3s prior to plunging	Resolution 7.60 Å
7PG2 Low resolution Cryo-EM structure of full-length insulin receptor bound to 3 insulin, conf 1 Deposited 2021-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3s prior to plunging	Resolution 6.70 Å
7PG3 Low resolution Cryo-EM structure of the full-length insulin receptor bound to 3 insulin, conf 2 Deposited 2021-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3s prior to plunging	Resolution 7.30 Å
7PG4 Low resolution Cryo-EM structure of the full-length insulin receptor bound to 2 insulin, conf 3 Deposited 2021-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3s prior to plunging	Resolution 9.10 Å
7QID tentative model of the human insulin receptor ectodomain bound by three insulin Deposited 2021-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 28–746（719 aa） Chain C 28–746（719 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 5.00 Å
7S0Q Head region of a complex of IGF-I with the ectodomain of a hybrid insulin receptor / type 1 insulin-like growth factor receptor Deposited 2021-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 28–955（928 aa）	Not recorded	BMA beta-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris pH 8.0 160mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7S8V Leg region of a complex of IGF-I with the ectodomain of a hybrid insulin receptor / type 1 insulin-like growth factor receptor Deposited 2021-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–955（928 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
7U6D Head region of insulin receptor ectodomain (A-isoform) bound to the non-insulin agonist IM459 Deposited 2022-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 28–943（916 aa） Fragment：ectodomain (UNP residues 28-943) Chain C 28–943（916 aa） Fragment：ectodomain (UNP residues 28-943)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.03 Å
7YQ3 human insulin receptor bound with A43 DNA aptamer and insulin Deposited 2022-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain E 28–934（907 aa） Chain F 28–934（907 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7YQ4 human insulin receptor bound with A62 DNA aptamer and insulin - locally refined Deposited 2022-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain E 28–934（907 aa） Chain F 28–934（907 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
7YQ6 human insulin receptor bound with A62 DNA aptamer Deposited 2022-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain E 28–934（907 aa） Chain F 28–934（907 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8DWN Crystal structure of bis-phosphorylated insulin receptor kinase domain Deposited 2022-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1005–1310（306 aa）	Mutation：C981S, Y984F Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；25% PEG 6000, 0.2 M malate-imidazole	Resolution 2.15 Å R-free 0.247
8GUY human insulin receptor bound with two insulin molecules Deposited 2022-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–934（907 aa） Chain F 28–934（907 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
8U4B Cryo-EM structure of long form insulin receptor (IR-B) in the apo state Deposited 2023-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–1382（1382 aa） Chain B 1–1382（1382 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8U4C Cryo-EM structure of long form insulin receptor (IR-B) with four IGF2 bound, symmetric conformation. Deposited 2023-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1382（1382 aa） Chain B 1–1382（1382 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8U4E Cryo-EM structure of long form insulin receptor (IR-B) with three IGF2 bound, asymmetric conformation. Deposited 2023-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1382（1382 aa） Chain B 1–1382（1382 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8VJB Cryo-EM structure of short form insulin receptor (IR-A) with four IGF2 bound, symmetric conformation. Deposited 2024-01-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8VJC Cryo-EM structure of short form insulin receptor (IR-A) with three IGF2 bound, asymmetric conformation. Deposited 2024-01-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8X06 Cryo-EM structure of the IR/IGF-I complex, conformation 1 Deposited 2023-11-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
8X2M Cryo-EM structure of the IR/IGF-I complex, conformation 2 Deposited 2023-11-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
8XJS Cryo-EM structure of human insulin receptor bound to 3 IGF-I Deposited 2023-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
8XK1 Cryo-EM structure of human insulin receptor bound to 4 IGF-I Deposited 2023-12-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
8XKM Cryo-EM structure of human insulin receptor bound to 4 IGF-I, conformation 3 Deposited 2023-12-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
8XKR Cryo-EM structure of human insulin receptor bound to 4 IGF-I, conformation 2 Deposited 2023-12-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8YSZ Cryo-EM structure of the complex IR with three IGF-II Deposited 2024-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
8YYL Cryo-EM structure of the complex IR with one insulin Deposited 2024-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.01 Å
8YYS Cryo-EM structure of the complex IR with two insulin Deposited 2024-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.14 Å
8YYT Cryo-EM structure of the complex IR with four insulin Deposited 2024-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1370（1370 aa） Chain B 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9DN6 Insulin receptor bound with de novo designed agonist called "RF-405". Deposited 2024-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–1370（1370 aa） Chain D 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9DNI Insulin receptor bound with de novo designed agonist called "S2-F1-S1" Deposited 2024-09-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–1370（1370 aa） Chain D 1–1370（1370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
9JF9 Human insulin receptor bound with A62-dimer, Pseudo-arrowhead conformation Deposited 2024-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 28–946（919 aa） Chain B 28–946（919 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.26 Å
9JFD Human insulin receptor bound with A62-dimer, Pseudo-gamma conformation Deposited 2024-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 28–946（919 aa） Chain B 28–946（919 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.35 Å
9JHS Human insulin receptor bound with A62-dimer, arrowhead conformation Deposited 2024-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain E 28–946（919 aa） Chain F 28–946（919 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.02 Å
9PUV Insulin receptor bound to S961 Deposited 2025-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–1382（1355 aa） Chain C 28–1382（1355 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.68 Å
9PUW Insulin Receptor bound to Ins-AC-S2 Deposited 2025-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 28–956（929 aa） Chain B 28–956（929 aa） Chain M 28–956（929 aa） Chain N 28–956（929 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.64 Å
9PVO Novel site 1 interaction of the IR/Ins-AC-S2 complex Deposited 2025-08-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–956（929 aa） Chain B 28–956（929 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.89 Å
9SA8 Human insulin receptor domains FnIII-1 and L2 bound to HIR-6 DNA aptamer Deposited 2025-08-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 496–1382（887 aa） Chain B 1–495（495 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å

85 other PDB entries and 99 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INSR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–485； UniProt 28–512 Author chain B； PDBConstruct 1–485； UniProt 28–512

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

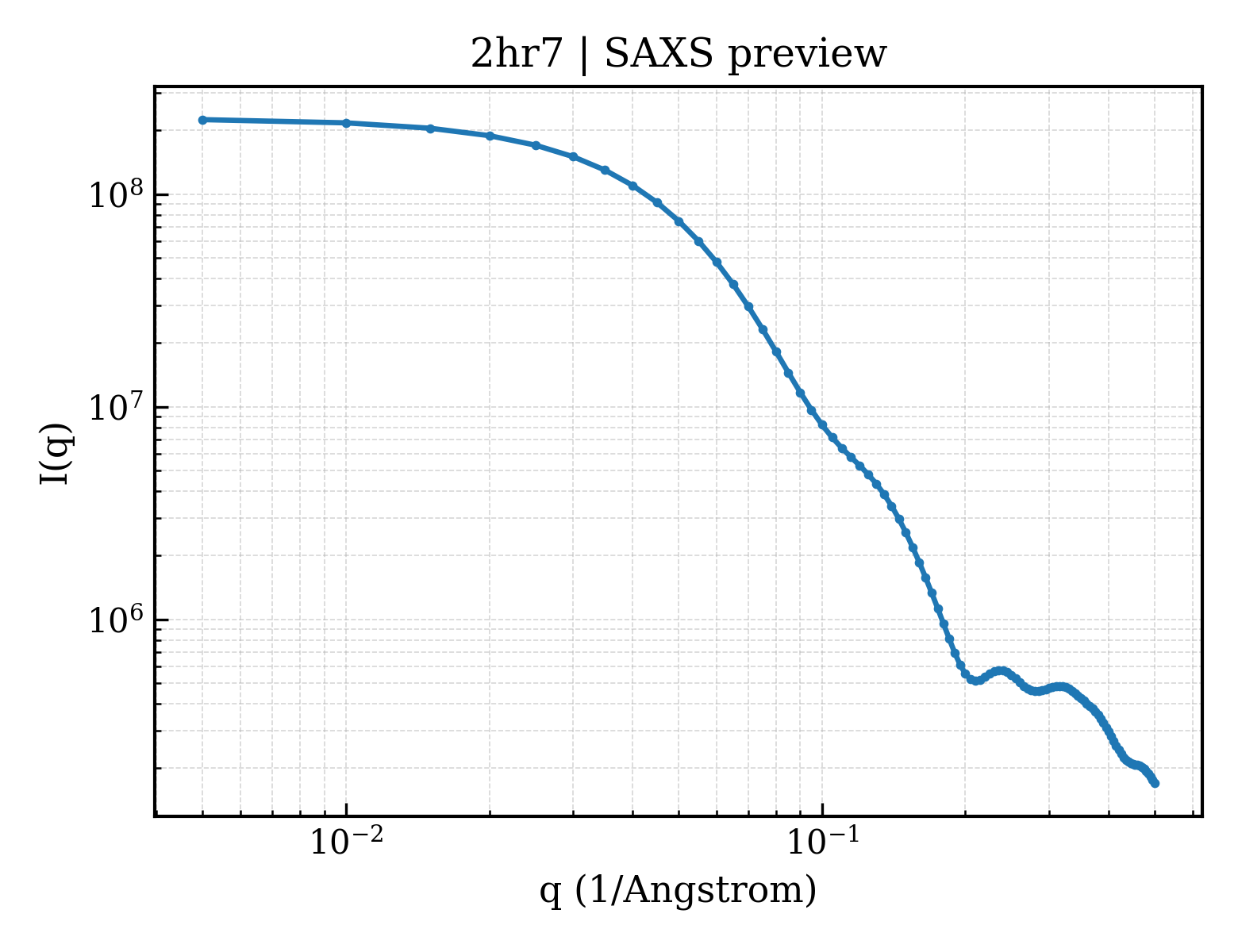

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hr7
Deposition date deposition_date	2006-07-19
Structure title title	Insulin receptor (domains 1-3)
Keywords keywords	HORMONE RECEPTOR, LEUCINE RICH REPEAT, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.18 Å
Radius of gyration Rg (electron density) rg_electron	37.01 Å
Forward intensity I(0) i0	226966000.00
Molecular weight molecular_weight	116830.0 kDa
Excluded volume excluded_volume	144520 Å³
Envelope volume envelope_volume	199050 Å³
Hydration-shell volume shell_volume	46968 Å³
Envelope diameter envelope_diameter	145.1 Å
Shell Rg shell_rg	40.87 Å
Envelope Rg envelope_rg	36.59 Å
Shape Rg shape_rg	37.03 Å
Total Rg total_rg	37.22 Å
Total atoms total_atoms	8128
Residues n_residues	931
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

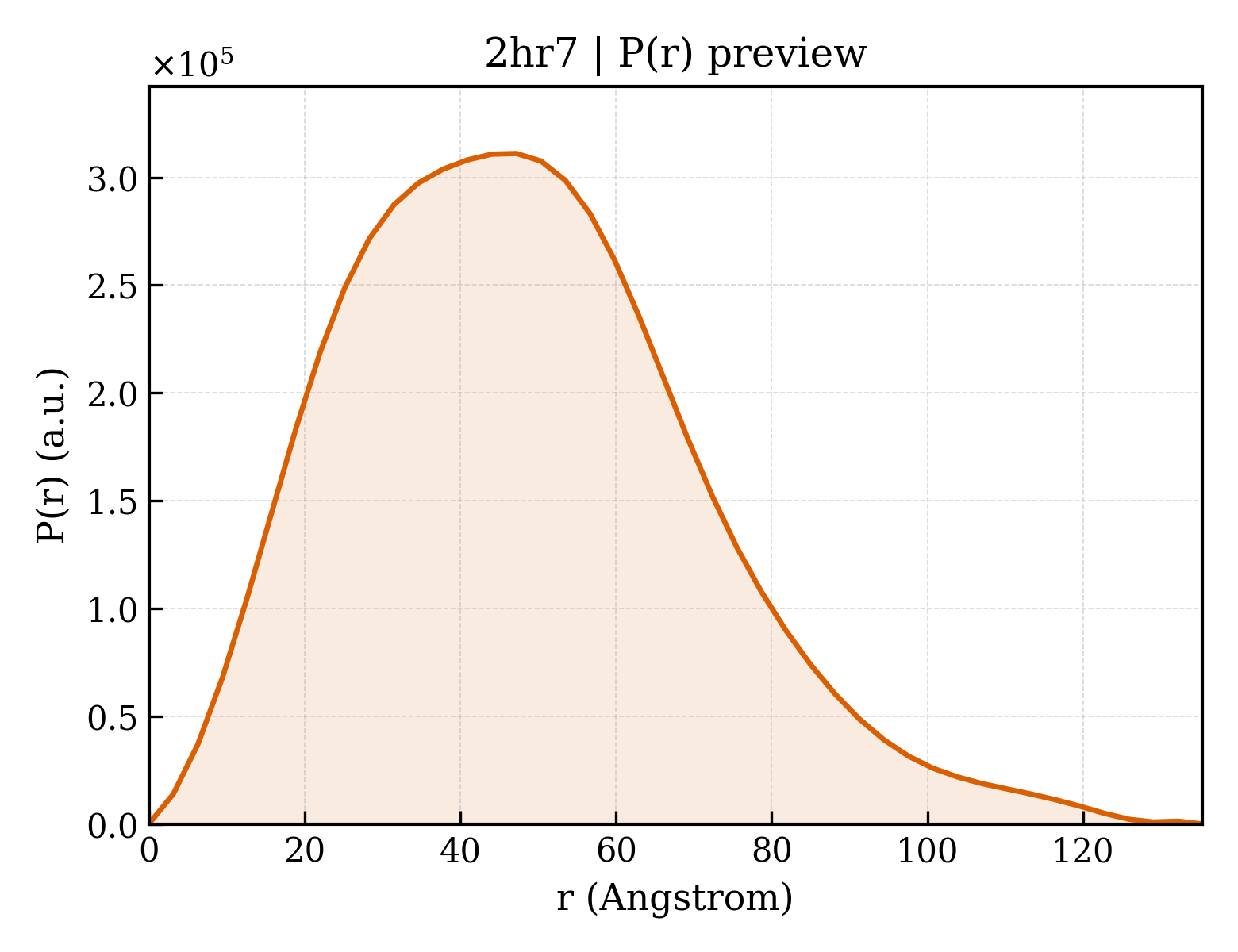

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	135.3 Å
Rg (real space) rg_real	37.37 Å
Rg uncertainty (real space) rg_real_error	1.49 Å
I(0) (real space) i0_real	2.2700e+08
I(0) uncertainty (real space) i0_real_error	4.0450e+06
Rg (reciprocal space) rg_reciprocal	37.25 Å
I(0) (reciprocal space) i0_reciprocal	226900000.0000
Solution quality estimate total_estimate	0.8311
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.2 Å
Skewness Skewness skewness	0.520
Kurtosis Kurtosis kurtosis	0.103
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	53930000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.706; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.838; Smooth: 0.843

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Insulin receptor
Molecular weight formula_weight	55544.7 kDa
EC 编号 ec_number	2.7.1.112
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8665

HLYPGEVCPGMDIRNNLTRLHELENCSVIEGHLQILLMFKTRPEDFRDLSFPKLIMITDYLLLFRVYGLESLKDLFPNLTVIRGSRLFFNYALVIFEMVHLKELGLYNLMNITRGSVRIEKNNELCYLATIDWSRILDSVEDNHIVLNKDDNEECGDICPGTAKGKTNCPATVINGQFVERCWTHSHCQKVCPTICKSHGCTAEGLCCHSECLGNCSQPDDPTKCVACRNFYLDGRCVETCPPPYYHFQDWRCVNFSFCQDLHHKCKNSRRQGCHQYVIHNNKCIPECPSGYTMNSSNLLCTPCLGPCPKVCHLLEGEKTIDSVTSAQELRGCTVINGSLIINIRGGNNLAAELEANLGLIEEISGYLKIRRSYALVSLSFFRKLRLIRGETLEIGNYSFYALDNQNLRQLWDWSKHNLTITQGKLFFHYNPKLCLSEIHKMEEVSGTKGRQERNDIALKTNGDKASCENELLKFSYIRTSFDKIS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1073.0 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	4

Entity 7 Entity 7 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1235.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 9 Entity 9 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 10 Entity 10 non-polymer

Description description	3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
Molecular weight formula_weight	326.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	19

Entity 12 Entity 12 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	371

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2hr7a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.0 — automated matches

Domain ID domain_id	d2hr7a2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.0 — automated matches

Domain ID domain_id	d2hr7a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.0 — automated matches

Domain ID domain_id	d2hr7b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.0 — automated matches

Domain ID domain_id	d2hr7b2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.0 — automated matches

Domain ID domain_id	d2hr7b3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.0 — automated matches

CATH v4.4 (6 domains)

Domain ID domain_id	2hr7A01
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily	20 — Receptor L-domain

Domain ID domain_id	2hr7A02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

Domain ID domain_id	2hr7A03
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily	20 — Receptor L-domain

Domain ID domain_id	2hr7B01
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily	20 — Receptor L-domain

Domain ID domain_id	2hr7B02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

Domain ID domain_id	2hr7B03
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily	20 — Receptor L-domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.861 Å
Unit-cell length b length_b	130.241 Å
Unit-cell length c length_c	160.924 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.320 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1970
R_work r_work	0.1950
R_free r_free	0.2310

fit	/app/data/saxs_computation/hr/2hr7/2hr7.fit
pddf	/app/data/pr_computation/hr/2hr7/2hr7.pr.out
profile	/app/data/saxs_computation/hr/2hr7/2hr7.dat
