9zmv

Crystal structure of an Iole protein from Brucella melitensis (orthorhombic P form)

Method: X-RAY DIFFRACTION D_max: 56.0 Å Quality: EXCELLENT

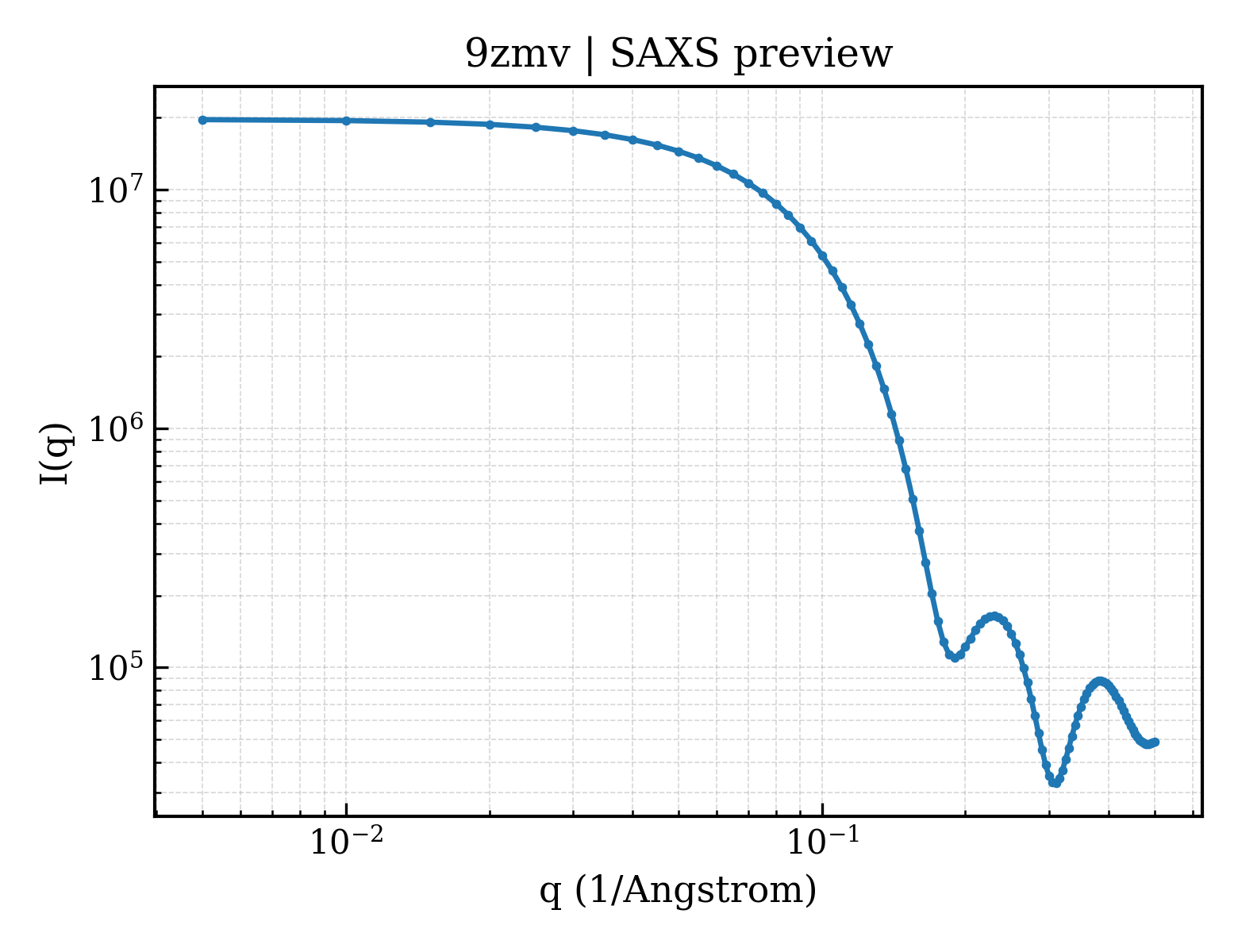

SAXS Profile

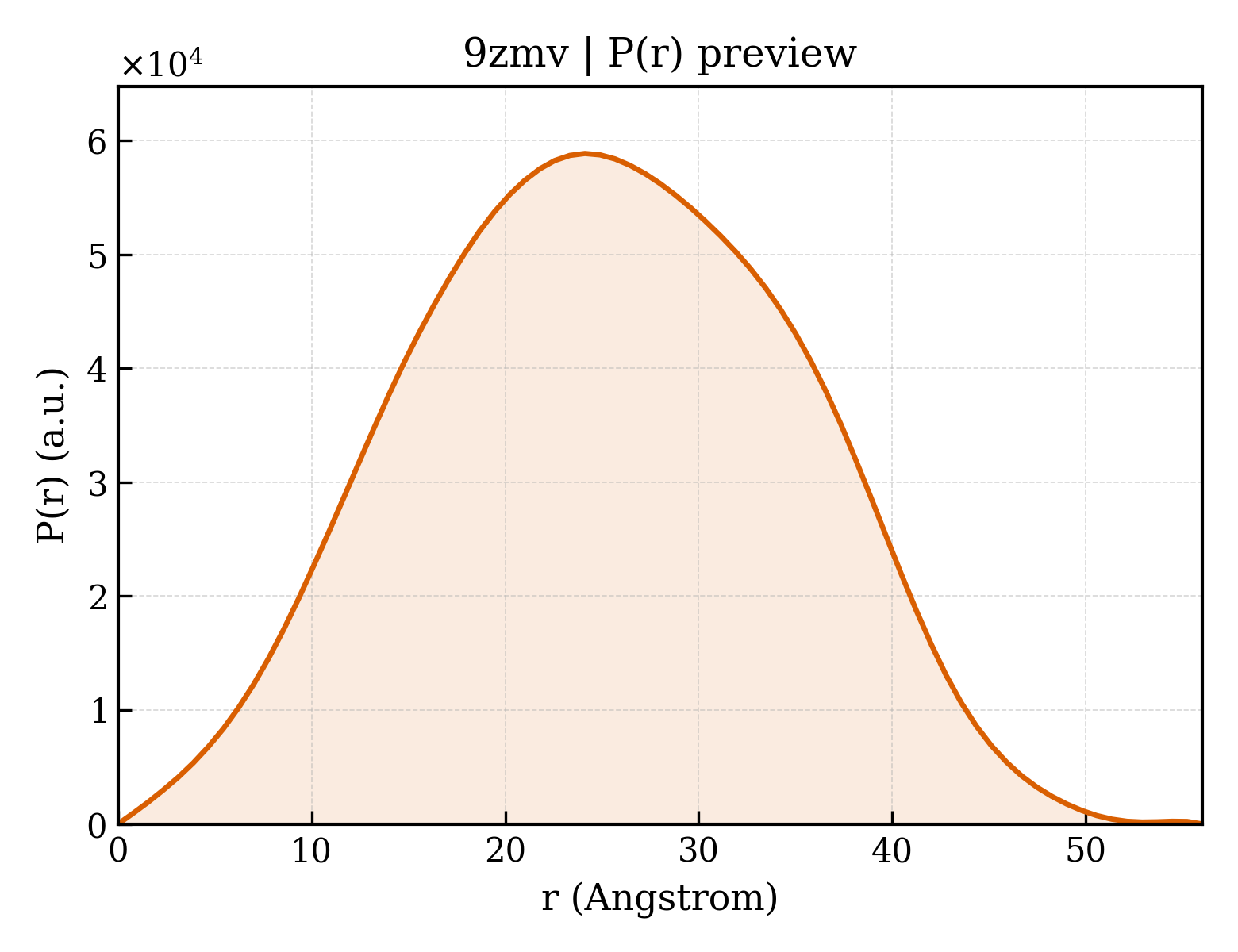

P(r) Distribution

▼

1. Structure Basics

entry_id	9zmv
deposition_date	2025-12-11
last_revision	2025-12-24
title	Crystal structure of an Iole protein from Brucella melitensis (orthorhombic P form)
keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.20 Å
rg_electron	17.98 Å
i0	19706000.00
molecular_weight	33181.0 kDa
excluded_volume	41257 Å³
envelope_volume	46336 Å³
shell_volume	20827 Å³
envelope_diameter	55.4 Å
shell_rg	24.89 Å
envelope_rg	18.15 Å
shape_rg	17.98 Å
total_rg	18.91 Å
total_atoms	2339
n_residues	299
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	56.0 Å
rg_real	19.01 Å
rg_real_error	0.23 Å
i0_real	1.9710e+07
i0_real_error	2.2550e+05
rg_reciprocal	19.04 Å
i0_reciprocal	19710000.0000
total_estimate	0.9078
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	24.1 Å
skewness	0.013
kurtosis	-0.570
angular_range	— – 0.4150 Å⁻¹
current_alpha	0.0000
highest_alpha	7728000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.998

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Iole protein
formula_weight	34076.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2493

MAHHHHHHMILYGTNPIAWSNDDDRSLGAHITLDQCLDEAAKIGFDGIEKGHKFPQEAAALKAVLEPRGLRYVSGWHSLNLLVNSVEEEKAAMQPALDLLKAMGSKVIIVCETSNAIHGDNDKPLQERPVLEDARWEAFGLGVEALAAHAAAQGITLVYHHHMGTIVETEDEIDRLMRFTGPHTRLLLDTGHCLFGRGNPERVAQKHIARVGHIHAKNIRRDIVQDVRDQNLSFLEGVRRGVFTVPGDTEGSVDFVPVLKIAAEHGYQGWLVIEAEQDPDVRNPFEYQSLGLKSLKAFAREAGLDKG

Source

organism	Brucella melitensis biotype 1 (strain ATCC 23456 / CCUG 17765 / NCTC 10094 / 16M)
ncbi_taxonomy_id	224914
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	151

▶

6. Citations (1)

▶

length_a	48.015 Å
length_b	64.086 Å
length_c	101.834 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.100 Å
resolution_low	43.430 Å
r_factor	0.1918
r_work	0.1899
r_free	0.2276
