9zrr

Cryo-EM structure of KCa2.2/calmodulin channel in complex with SKA111.

Method: ELECTRON MICROSCOPY D_max: 133.5 Å Quality: GOOD

SAXS Profile

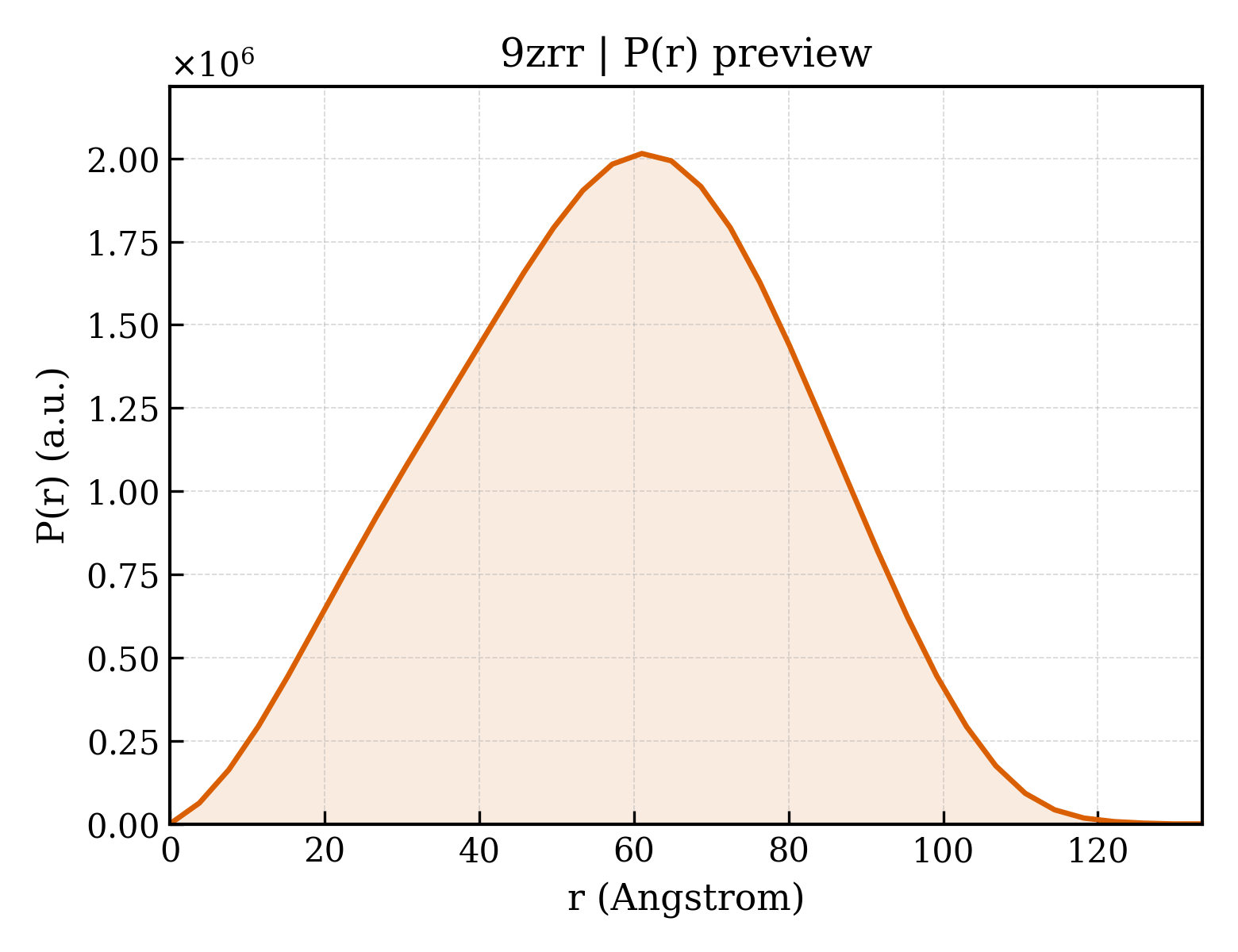

P(r) Distribution

▼

1. Structure Basics

entry_id	9zrr
deposition_date	2025-12-20
title	Cryo-EM structure of KCa2.2/calmodulin channel in complex with SKA111.
keywords	;Intermediate conductance calcium-activated potassium channel, Ion channel, Calmodulin binding protein, TRANSPORT PROTEIN, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.50 Å
rg_electron	43.81 Å
i0	1501540000.00
molecular_weight	214340.0 kDa
excluded_volume	208200 Å³
envelope_volume	441590 Å³
shell_volume	81926 Å³
envelope_diameter	140.6 Å
shell_rg	51.48 Å
envelope_rg	42.03 Å
shape_rg	43.82 Å
total_rg	44.07 Å
total_atoms	16165
n_residues	2020
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.5 Å
rg_real	44.13 Å
rg_real_error	0.70 Å
i0_real	1.5020e+09
i0_real_error	2.2750e+07
rg_reciprocal	44.50 Å
i0_reciprocal	1502000000.0000
total_estimate	0.8944
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	61.0 Å
skewness	-0.049
kurtosis	-0.550
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	70620000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.920

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Small conductance calcium-activated potassium channel protein 2
formula_weight	41114.8 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	16173

IGYKLGHRRALFEKRKRLSDYALIFGMFGIVVMVIETELSWGAYDKASLYSLALKCLISLSTIILLGLIIVYHAREIQLFMVDNGADDWRIAMTYERIFFICLEILVCAIHPIPGNYTFTWTARLAFSYAPSTTTADVDIILSIPMFLRLYLIARVMLLHSKLFTDASSRSIGALNKINFNTRFVMKTLMTICPGTVLLVFSISLWIIAAWTVRACERYHDQQDVTSNFLGAMWLISITFLSIGYGDMVPNTYCGKGVCLLTGIMGAGCTALVVAVVARKLELTKAEKHVHNFMMDTQLTKRVKNAAANVLRETWLIYKNTKLVKKIDHAKVRKHQRKFLQAIHQLRSVKMEQRKLNDQAN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Calmodulin-1
formula_weight	16348.9 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	E,F,G,H

DQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	5-methylnaphtho[1,2-d][1,3]thiazol-2-amine
formula_weight	214.3 kDa
src_method	man
entity_count	4

Entity 5 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	12

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.310 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.31 Å
resolution_method	—
num_particles	215183

fit	/app/data/saxs_computation/zr/9zrr/9zrr.fit
pddf	/app/data/pr_computation/zr/9zrr/9zrr.pr.out
profile	/app/data/saxs_computation/zr/9zrr/9zrr.dat
