SAXSdb — 9zv1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin

Influenza A virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 9 其他Polymer 3 PDB declaration: nonameric（9） Consistent with protein copy count	Chain A； UniProt 1–516 Chain B； UniProt 1–516 Chain C； UniProt 1–516	Not recorded	H51 Fab Heavy Chain × 3 H51 Fab Light Chain × 3 ;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9ZV1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9EBC H5N1 HA in complex with HC-5 Fab Deposited 2024-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 17–333（317 aa） Chain C 17–333（317 aa） Chain E 17–333（317 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
9ZV0 CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H70 Deposited 2025-12-29	Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–516（516 aa） Chain B 1–516（516 aa） Chain C 1–516（516 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
9ZV4 CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H20 Deposited 2025-12-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–516（516 aa） Chain B 1–516（516 aa） Chain C 1–516（516 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.15 Å
9ZV9 CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H77 Deposited 2025-12-30	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–516（516 aa） Chain B 1–516（516 aa） Chain C 1–516（516 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
9ZVH CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H33 Deposited 2025-12-30	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–516（516 aa） Chain B 1–516（516 aa） Chain C 1–516（516 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.93 Å
9ZVL CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H83 Deposited 2025-12-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–516（516 aa） Chain B 1–516（516 aa） Chain C 1–516（516 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.48 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0AAX6NNG0_9INFA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–515； UniProt 1–516 Author chain B； PDBConstruct 1–515； UniProt 1–516 Author chain C； PDBConstruct 1–515； UniProt 1–516

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9zv1
Deposition date deposition_date	2025-12-29
Structure title title	CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H51
Keywords keywords	H5N1, antibody, influenza, VIRAL PROTEIN, ANTIMICROBIAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	46.46 Å
Radius of gyration Rg (electron density) rg_electron	45.84 Å
Forward intensity I(0) i0	905388000.00
Molecular weight molecular_weight	245810.0 kDa
Excluded volume excluded_volume	305770 Å³
Envelope volume envelope_volume	408190 Å³
Hydration-shell volume shell_volume	73989 Å³
Envelope diameter envelope_diameter	145.3 Å
Shell Rg shell_rg	50.51 Å
Envelope Rg envelope_rg	45.49 Å
Shape Rg shape_rg	45.84 Å
Total Rg total_rg	46.00 Å
Total atoms total_atoms	17300
Residues n_residues	2109
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

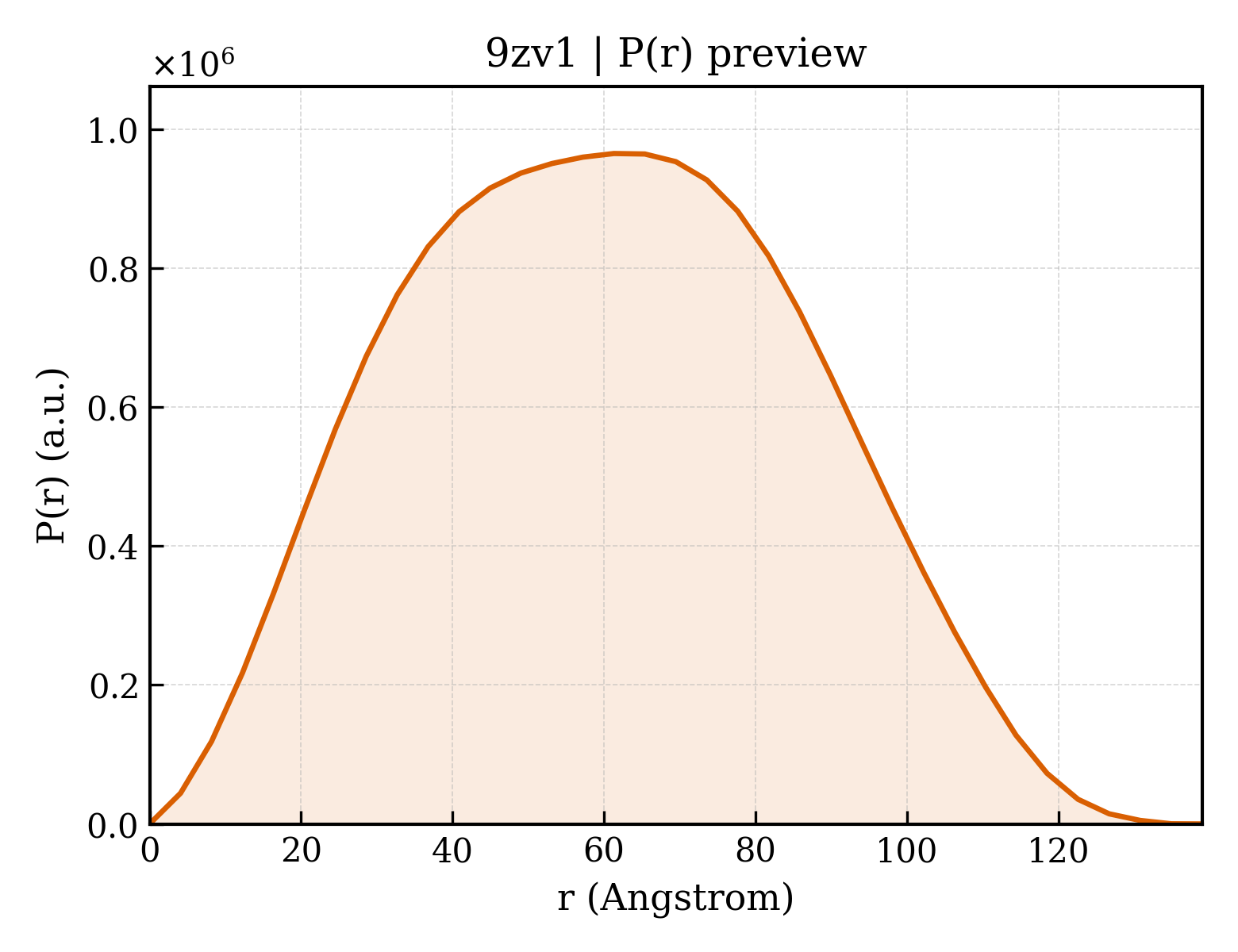

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	139.0 Å
Rg (real space) rg_real	46.25 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	9.0540e+08
I(0) uncertainty (real space) i0_real_error	1.5250e+07
Rg (reciprocal space) rg_reciprocal	46.46 Å
I(0) (reciprocal space) i0_reciprocal	905600000.0000
Solution quality estimate total_estimate	0.8697
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	61.3 Å
Skewness Skewness skewness	0.090
Kurtosis Kurtosis kurtosis	-0.708
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	96600000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.986; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.345

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	H51 Fab Heavy Chain
Molecular weight formula_weight	13309.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,D
Atom count atom_count	17300

EVQLVQSRAEVKKPGESLKISCQGSGYRFTNYWIAWVRQMPGKGLEWMGIVYPGDSDVRYSPSFEGQVTISADKSISTAYLQWSSLKASDTGVYYCARKDGSGSFPFDFWGQGTLVTVSS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	H51 Fab Light Chain
Molecular weight formula_weight	11676.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,K,G

EIVLTQSPGTLSLSPGERATVSCRASQNVSGTYLAWYQQKPGQAPSLLIYDASIRAIGTPDRFSGSGFGTDLTLIIRRLEPEDFAVYYCQQYGTSPLTFGGGTKVEIK

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	65585.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C

MENIVLLLAIVSLVKSDQICIGYHANNSTEQVDTIMEKNVTVTHAQDILEKTHNGKLCDLNGVKPLILKDCSVAGWLLGNPMCDEFIRVPEWSYIVERANPANDLCYPGSLNDYEELKHMLSRINHFEKIQIIPKSSWPNHETSLGVSAACPYQGAPSFFRNVVWLIKKNDAYPTIKISYNNTNREDLLILWGIHHSNNAEEQTNLYKNPITYISVGTSTLNQRLAPKIATRSQVNGQRGRMDFFWTILKPDDAIHFESNGNFIAPEYAYKIVKKGDSTIMKSGVEYGHCNTKCQTPVGAINSSMPFHNIHPLTIGECPKYVKSNKLVLATGLRNSPLRRRRRRGLFGAIAGFIEGGWQGMVDGWYGYHHSNEQGSGYAADKESTQKAIDGVTNKVNSIIDKMNTQFEAVGREFNNLERRIENLNKKMEDGFLDVWTYNAELLVLMENERTLDFHDSNVKNLYDKVRLQLRDNAKELGNGCFEFYHKCDNECMESVRNGTYDYPQYSEEARLKREGSSGSSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHHHHHGGSGLNDIFEAQKIEWHE

来源 Source

来源生物 organism	Influenza A virus
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1405.3 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	12

▶

8. Citations (1)

▶

Resolution resolution	2.70 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	183858

fit	/app/data/saxs_computation/zv/9zv1/9zv1.fit
pddf	/app/data/pr_computation/zv/9zv1/9zv1.pr.out
profile	/app/data/saxs_computation/zv/9zv1/9zv1.dat
